10. Remove gas valve and liquid valve
Remove the valve support bolck, remove the screws
fixing the gas valve and the liquid valve,unsolder the
welding joint connecting the gas valve and the liquid
valve, remove them.
Note:
Discharge the refrigerant completely befor unsoldering;
when unsoldering, wrap the gas valve with a wet cloth
completely to avoid damage to the valve caused by
high temperature.
11. Remove 4-way valve and electric expansion valve
Unsolder the welding joints connecting the 4-way valve
and electric expansion valve, and then remove them.
12. Remove compressor
Remove the 3 foot nuts on the compressor and then
remove the compressor.

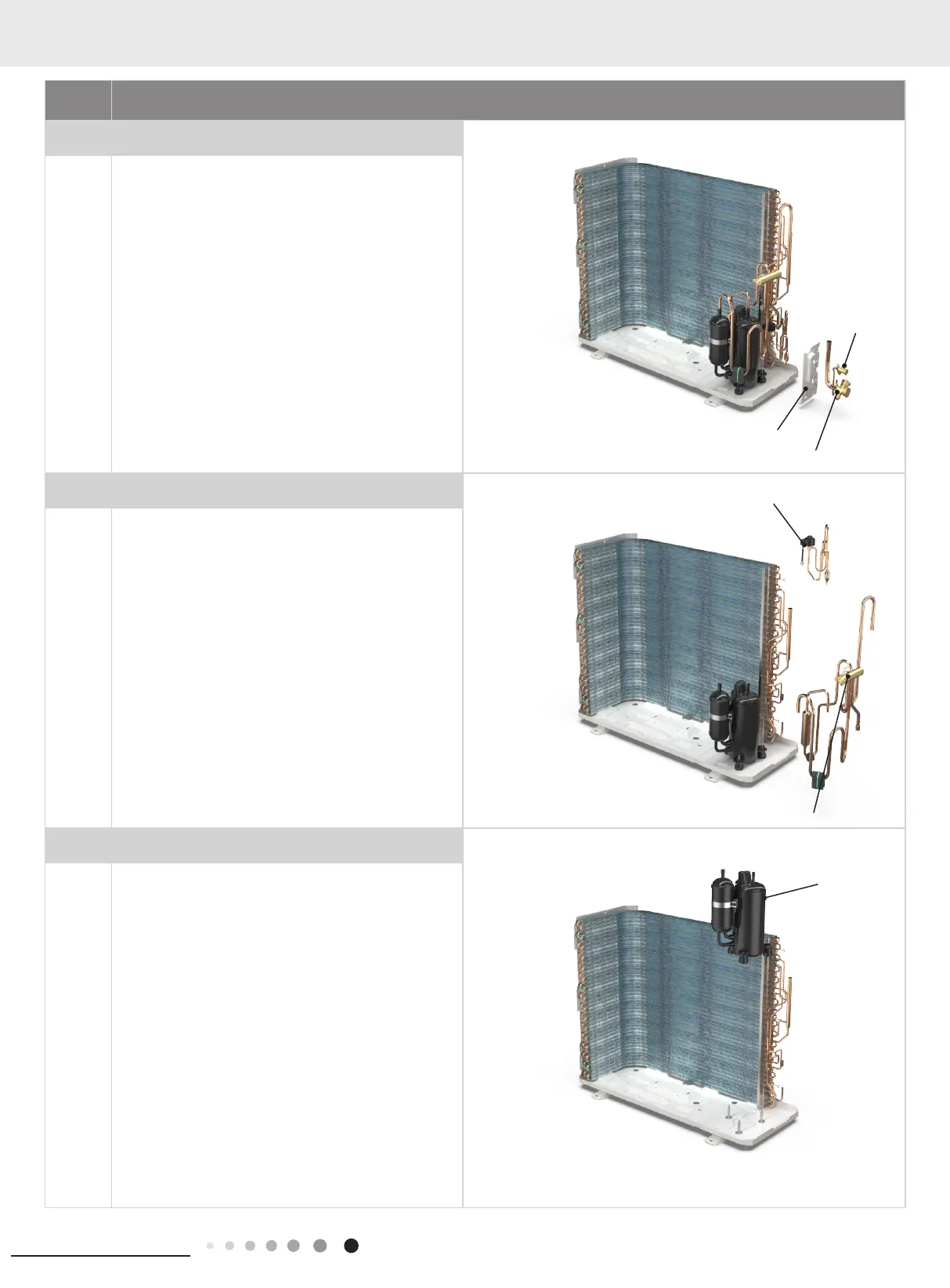

Valve Support
Liquid valve
Electric Expansion Valve
4-way valve
Compressor
Gas valve
11. Removal Procedure
