Tosot TW09HXP2A1A User Manual

26
Technical Information
Service Manual

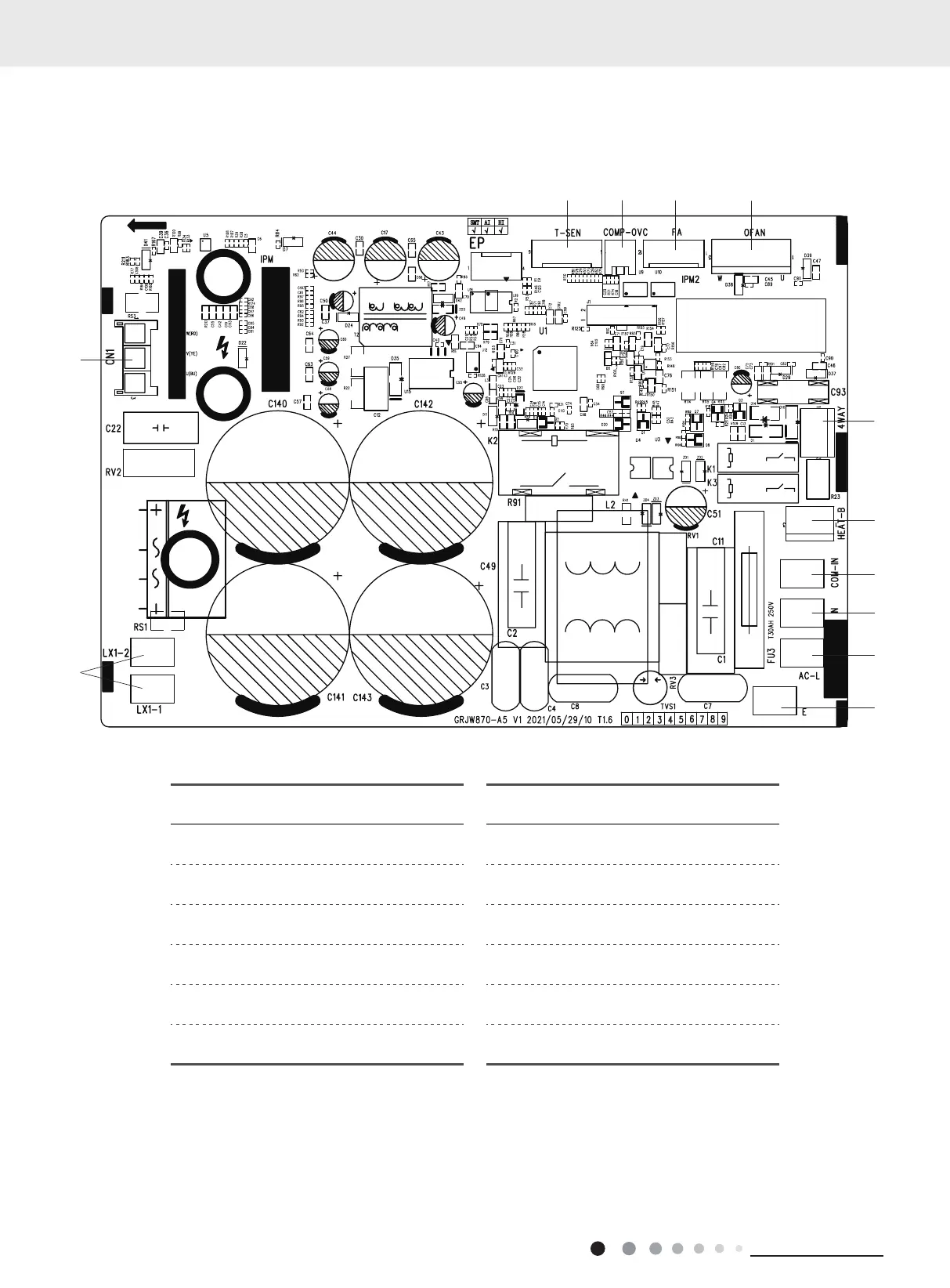

5. Electrical Part
1
2
3 4 5 6
7
8
9
10
11
12
No. Name No. Name
1 Reactor wiring terminal 7 4-way valve
2 Three-phase terminal of compressor 8 Electric heating belt of chasssis
3 Temperature sensor 9
Terminal of indoor unit and outdoor unit
communication
4 Overload 10 Terminal of power supply neutral wire
5 Electronic expansion valve 11 Terminal of power supply live wire
6 Outdoor fan 12 Earthing wire
Outdoor Unit
GWC09AGCXD-A3DNA1A/O TW09HXP2A1AO GWC12AGCXD-A3DNA1A/O TW12HXP2A1AO
