TOTALIFT TLX24 - Opportunity Pause; Safety Timer - Emergency Stop

TOTALIFT Battery Chargers User's Manual
__________________________________________________________________________________________________________________________________________________
Page 14/19
• If the battery reaches the gassing voltage in 1 minute, the second phase will
be ON for 30 minutes.
• If the battery reaches the gassing voltage in 5 hours, the second phase will be
ON for 2 hours and 30 minutes.
• If the battery reaches the gassing voltage in 10 hours, the second phase will
be ON for 5 hours.
• If the battery reaches the gassing voltage in 11h59m59s, the second phase
will be ON for 5h 59m59s (this is the maximum total time allowed before going
to Emergency state).
These time limits are ok to use the charger with different battery capacities
(depending on the time available for the charge, from 8 to 16 hours), and it’s not
needed to do adjustments on the board.

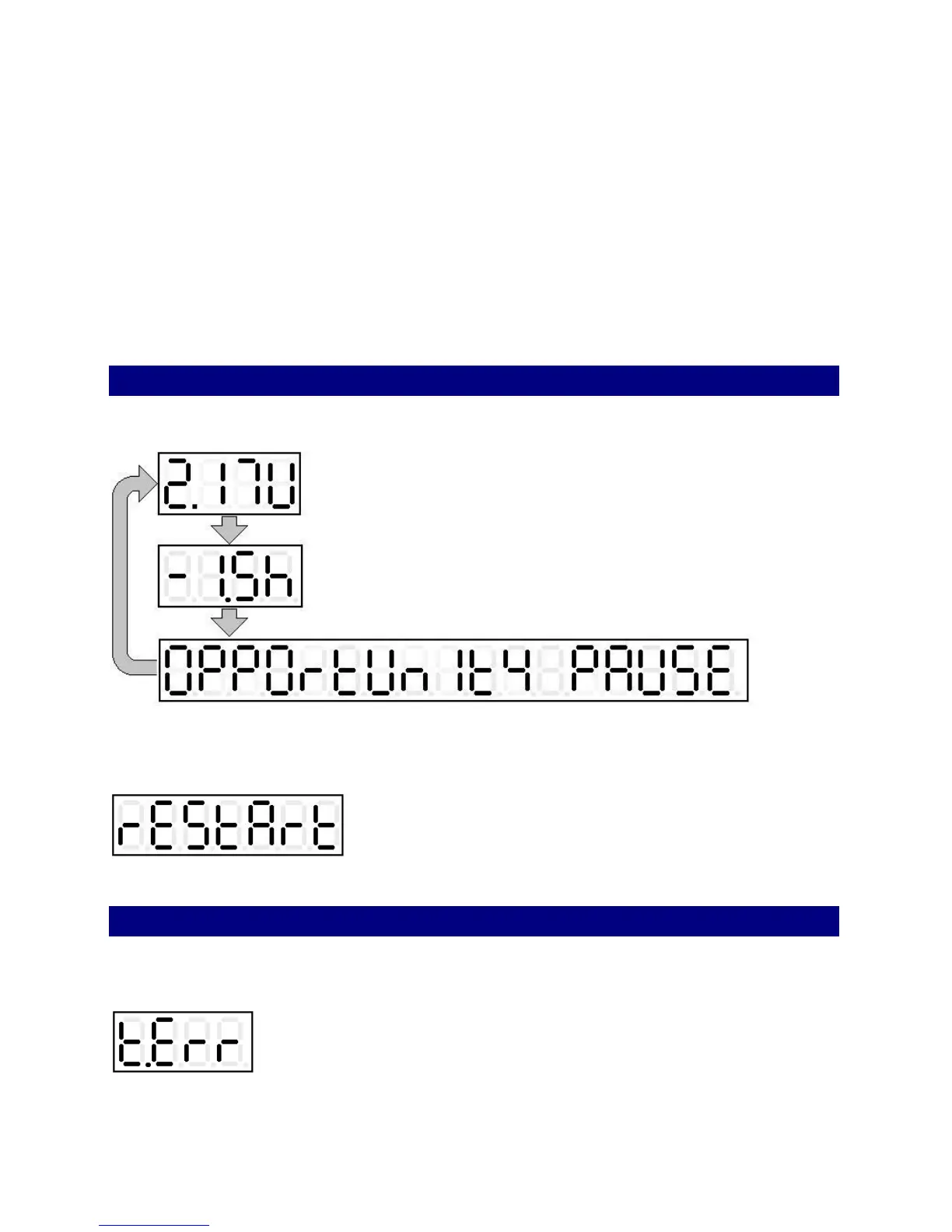

OPPORTUNITY PAUSE
During the Opportunity Pause the display shows the battery voltage and the remaining pause
time.
When the Opportunity Pause finishes the display shows:
SAFETY TIMER – EMERGENCY STOP
• If the battery doesn't reach the gassing voltage within 12 hours, the charge is terminated by
the safety timer, and the display shows the error message “Time Error”:
If this error message appears, it's recommended to call the service for a complete check of the
system.
