About Advanced Features & Operation

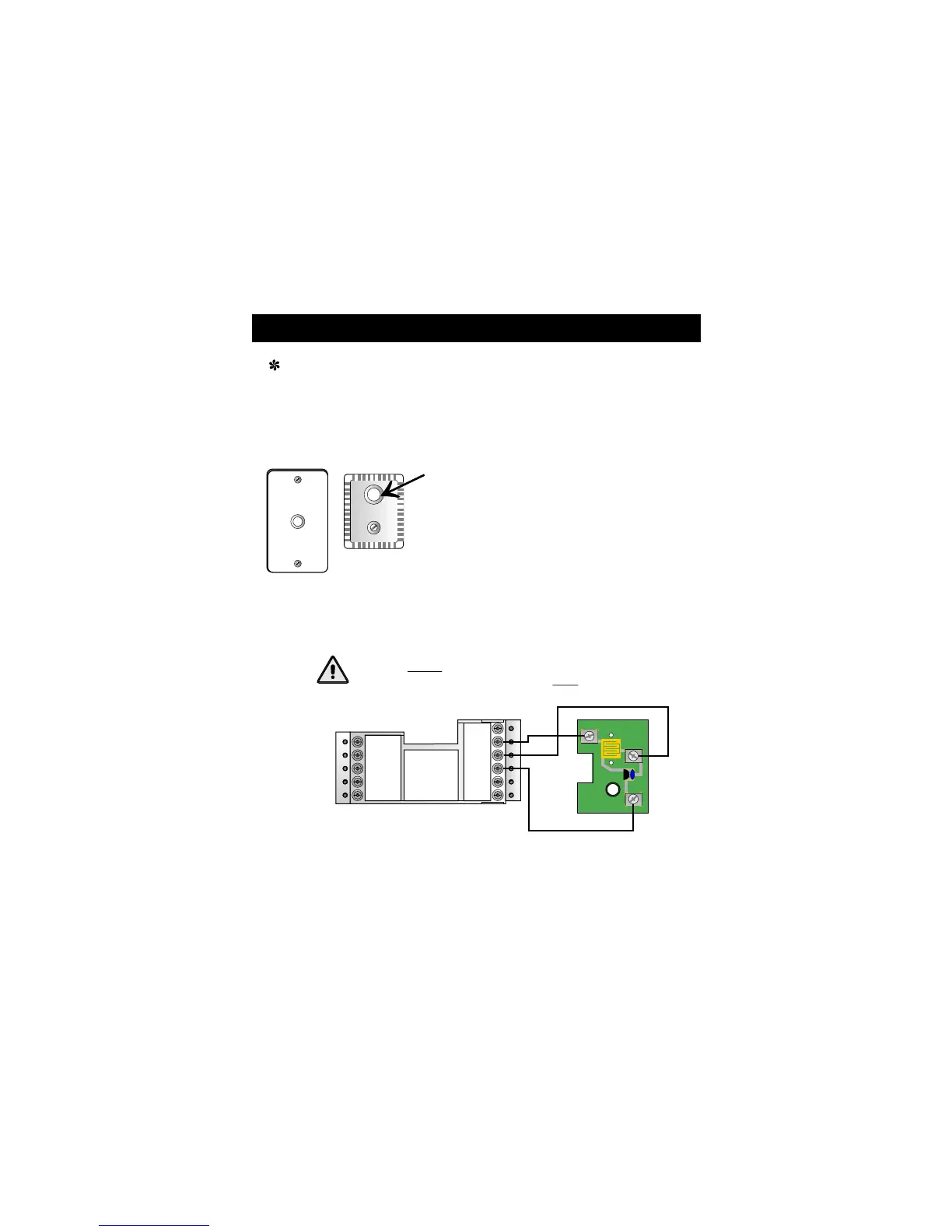

REMOTE SENSORS (Optional Accessory) - When connected to
thermostat terminals RS+5, RS, & GND will read the
temperature from the remote sensor and ignore the temperature sensor
inside the thermostat. The thermostat is programmed from the factory
to automatically recognize Remote Sensor is connected (step
#16, page 17). the
temperature from the remote sensor, the degree above the room
temperature will blink once a second.
, the thermostat
when a
When the thermostat is programmed to read
icon
Optional
Remote Sensor
Optional RF Sensor
The Override button on the remote sensor works
slightly different than the Override button on the
front panel of the thermostat. Each press of the
remote OVERRIDE button adds 2 hours to the
override timer. If the timer was already active, the
first button press will round the runtime to either
2:00 or 4:00. Subsequent button presses will not
wraparound as the Override button on the
Instead, every subsequent button press will thermostat does.
OVER
RIDE
OVER
RIDE
Page 25
set the runtime to maximum setting (4:00). The Locked feature has no
effect on the remote OVERRIDE button. The wired sensor can be
connected to the thermostat with up to 150’ of 18 ga., 300’ of 20 ga.,
or 450’ of 22 ga. Unshielded, thermostat wire.
This wire MUST be completely separated from the thermostat
or any other control wiring and must NOT be in the same
conduit as high voltage wiring.
See the Remote Sensor instructions for further details.
