ValueLine Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
21
Wall Mounted Installation – cont.

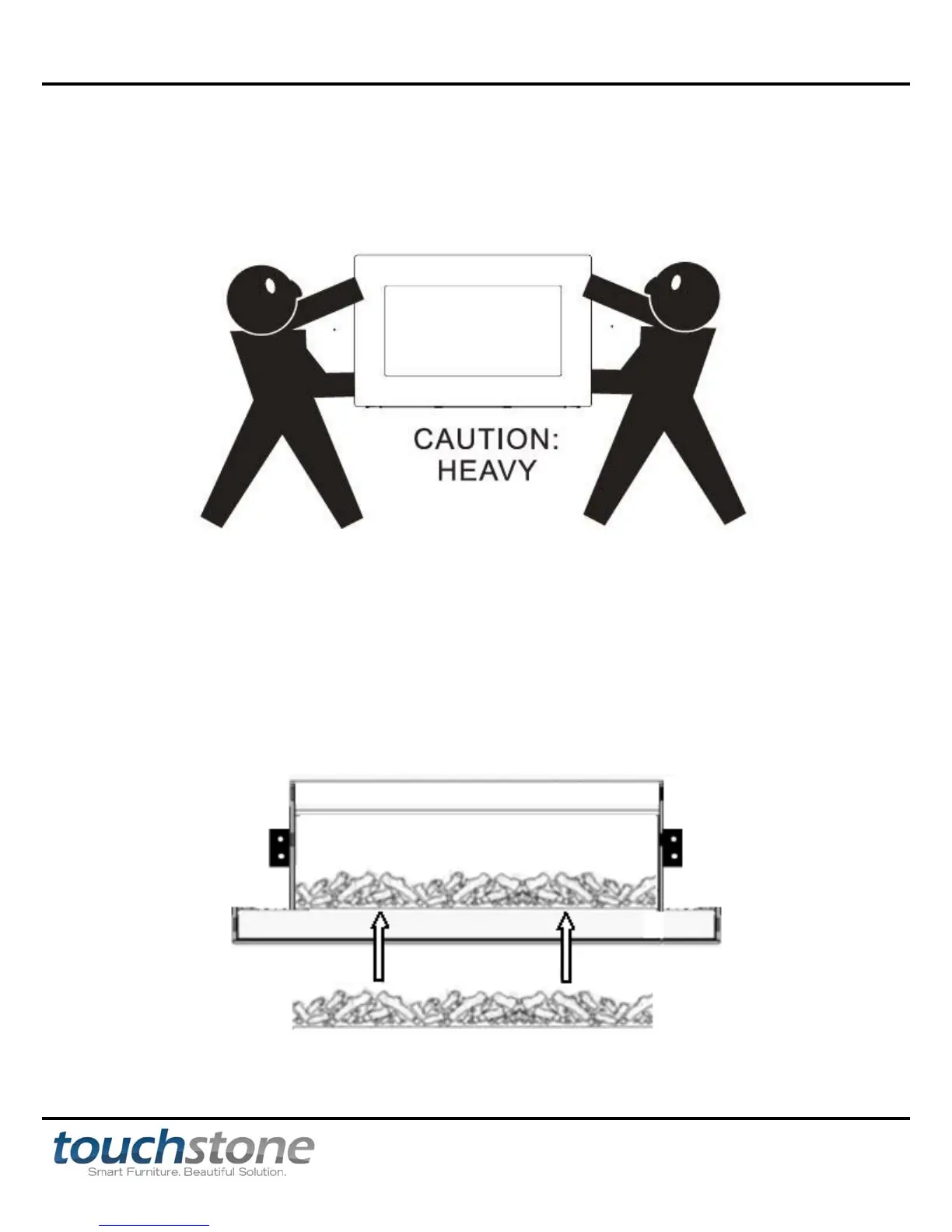

6. With the wall mounting bracket installed, have 2 people lift the fireplace up and insert the 2 hooks on the bracket
into the back of the fireplace. The 2 hooks on the mounting bracket will line up with the 2 holes on the back of the
fireplace. Once aligned, the hooks will insert into the holes in the back of the fireplace and lock in the down
position. Once locked into position, reinstall the 4 screws removed in step 3.
7. Check the fireplace for stability, ensuring that the bracket will not pull free from the wall. 4. Once the fireplace
is installed in the wall, install either the faux fire log or crystal embers.
a. Fire log Installation
i. The fireplace comes with the faux fire log already installed. If you plan to use the faux fire log,
just keep the log in place and skip to step 8 to install the glass panel.
