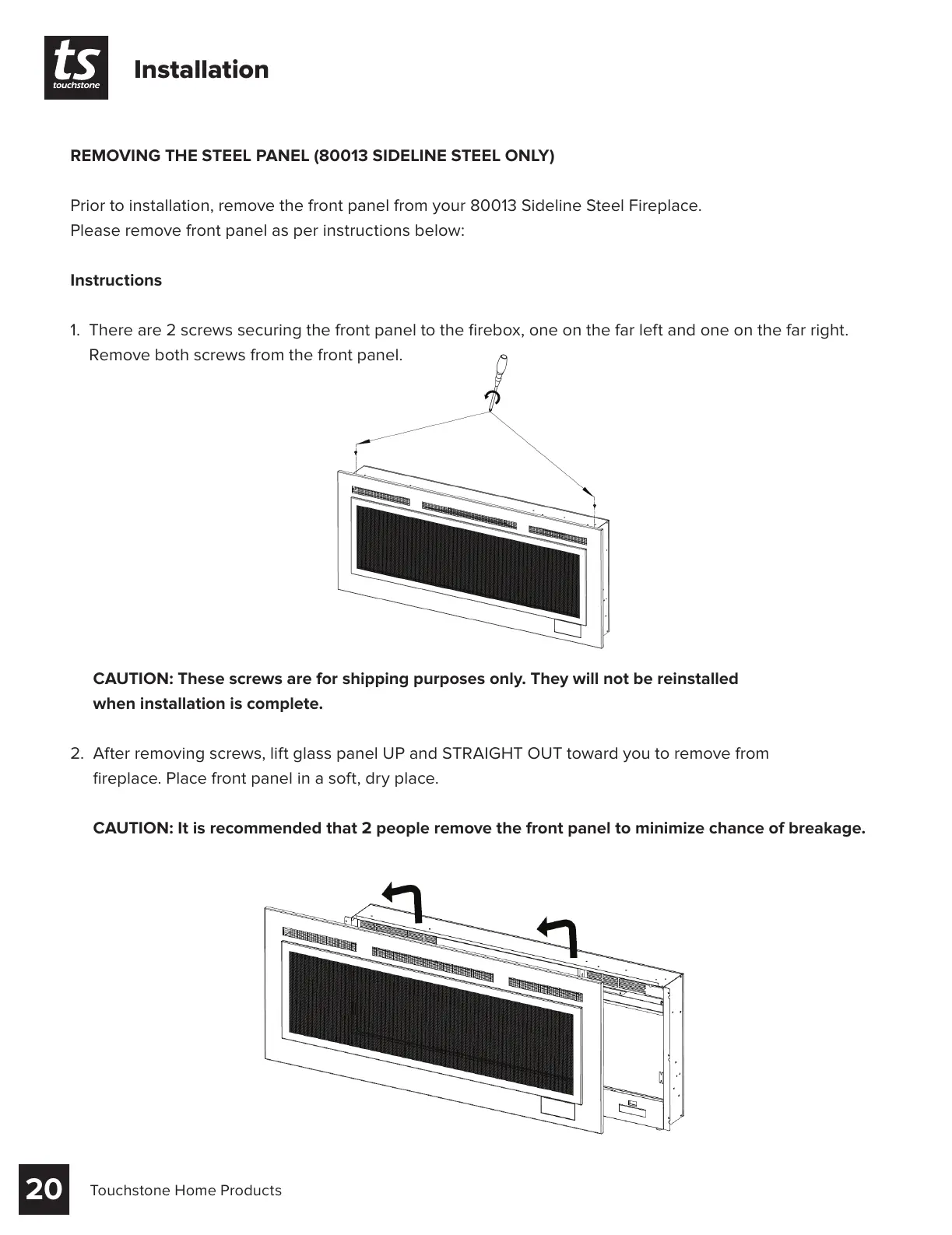

REMOVING THE STEEL PANEL (80013 SIDELINE STEEL ONLY)
Prior to installation, remove the front panel from your 80013 Sideline Steel Fireplace.
Please remove front panel as per instructions below:
Instructions
1. There are 2 screws securing the front panel to the firebox, one on the far left and one on the far right.
1. Remove both screws from the front panel.
2. CAUTION: These screws are for shipping purposes only. They will not be reinstalled
2. when installation is complete.
2. After removing screws, lift glass panel UP and STRAIGHT OUT toward you to remove from
2. fireplace. Place front panel in a soft, dry place.
2. CAUTION: It is recommended that 2 people remove the front panel to minimize chance of breakage.
20
