Toyota 4A-FE Repair Manual

4A-FE

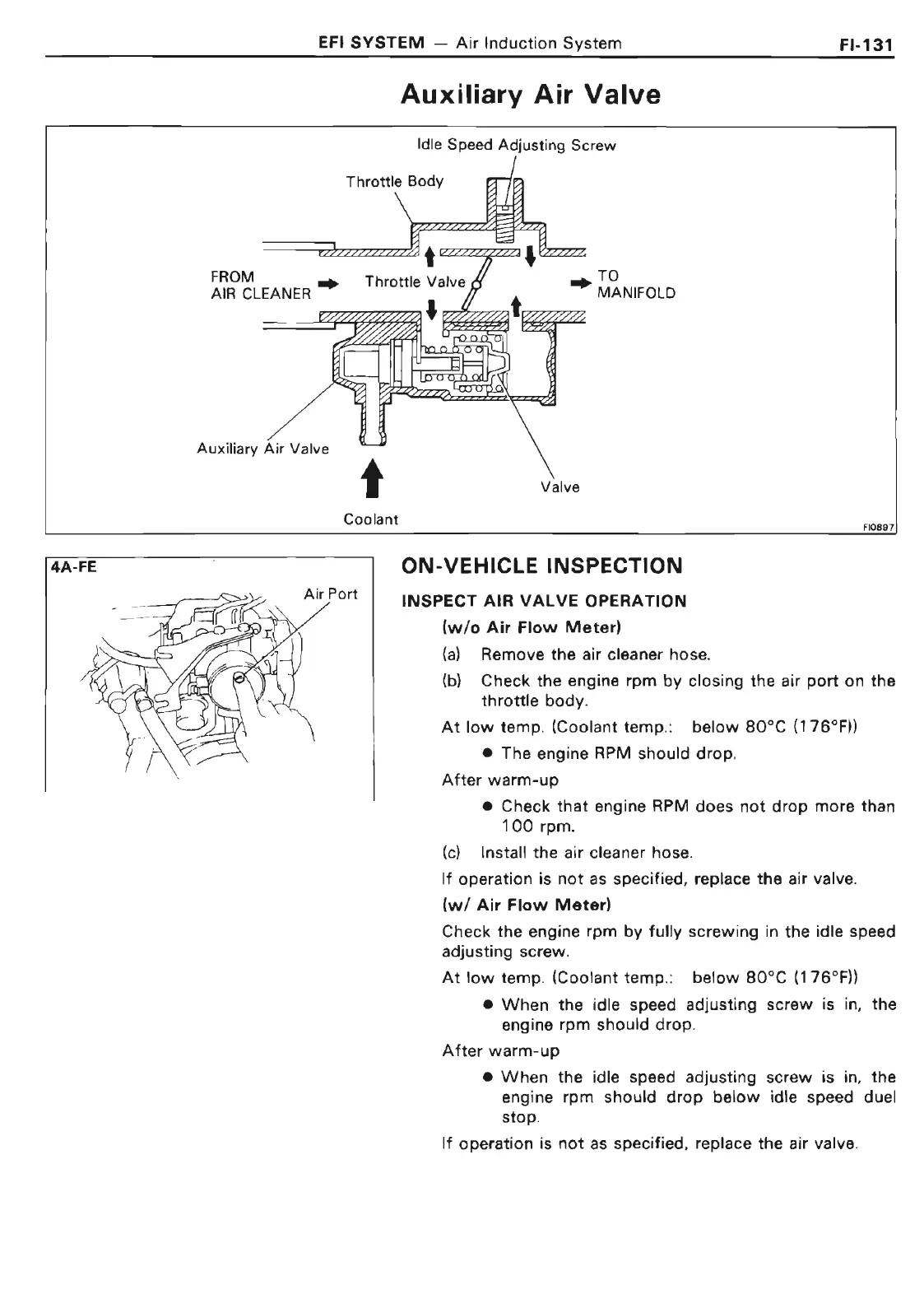

EFI SYSTEM - Air Induction System
Fl-131
Auxiliary Air Valve
t
Coolant
Auxiliary Air Valve
Valve
ON-VEHICLE INSPECTION
INSPECT AIR VALVE OPERATION
(w/o Air Flow Meter)
(a) Remove the air cleaner hose.
F10897
(b) Check the engine rpm by closing the air port on the
throttle body.
At low temp. (Coolant temp.: below 80°C (176°F))
• The engine RPM
should drop.
After warm-up
• Check that engine RPM does not drop more than
100 rpm.
(c) Install the air cleaner hose.
If operation is not as specified, replace the air valve.
(w/ Air Flow Meter)
Check the engine rpm by fully screwing in the idle speed
adjusting screw.
At low temp . (Coolant temp.: below 80°C (176°F)}
•
When the idle speed adjusting screw is in, the
engine rpm should drop.
After warm-up
• When the idle speed adjusting screw is in, the
engine rpm should drop below idle speed duel
stop.
If operation is not as specified, replace the air valve.

Toyota 4A-FE Specifications

General

Engine Type	Inline-4
Fuel System	EFI (Electronic Fuel Injection)
Valvetrain	DOHC, 4 valves per cylinder
Bore x Stroke	81.0 mm x 77.0 mm
Compression Ratio	9.5:1
Fuel Type	Gasoline
Displacement	1587 cm3
Power Output	115 hp (86 kW) @ 6000 rpm
Redline	6, 400–6, 800 rpm
