From
Ignition
Switch
(ST1}
4A-FE
Ohmmeter
[I]
[o
~
~
EFI
SYSTEM
- Electronic Control
System
Fl-137
Start
Injector
Time
Switch
l
_____
___ _
Start
Injector
Time
Switch
STA

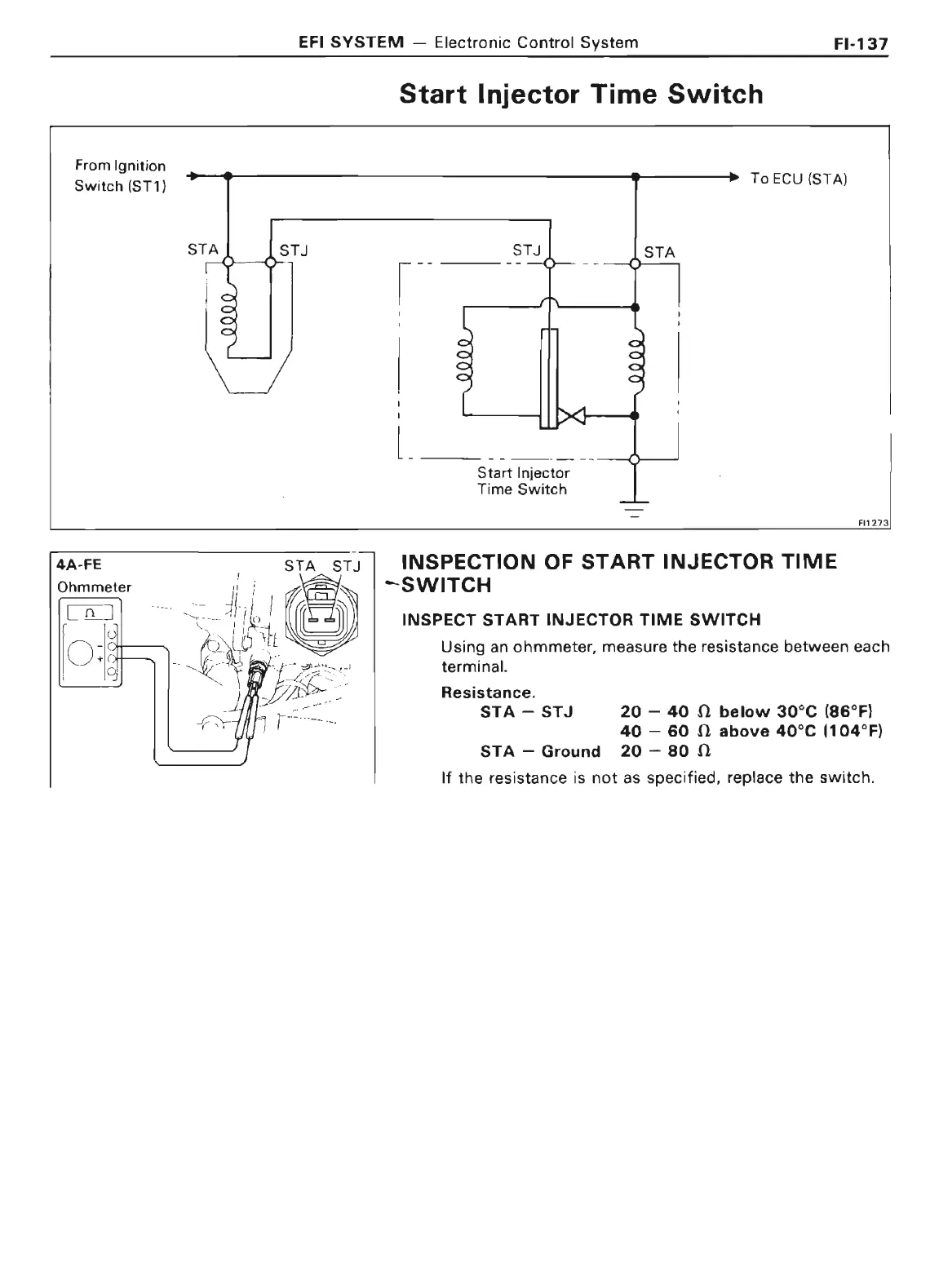

INSPECTION
OF
START
INJECTOR
TIME
-SWITCH
INSPECT
START
INJECTOR
TIME
SWITCH
Fil
273
Using
an
ohmmeter,
measure the resistance between each
terminal.
Resistance.
ST A -
ST
J
20
-
40
!l
below
30°C
(86°F}
40
-
60
!l
above
40°C
1104°F)
STA
-
Ground
20
-
80
!l
If
the resistance
is
not
as specified, replace
the
switch.
