Toyota 4A-FE Repair Manual

C0-6
Pulley Seat
Water Pump Pulley
I
• Non-reusable part

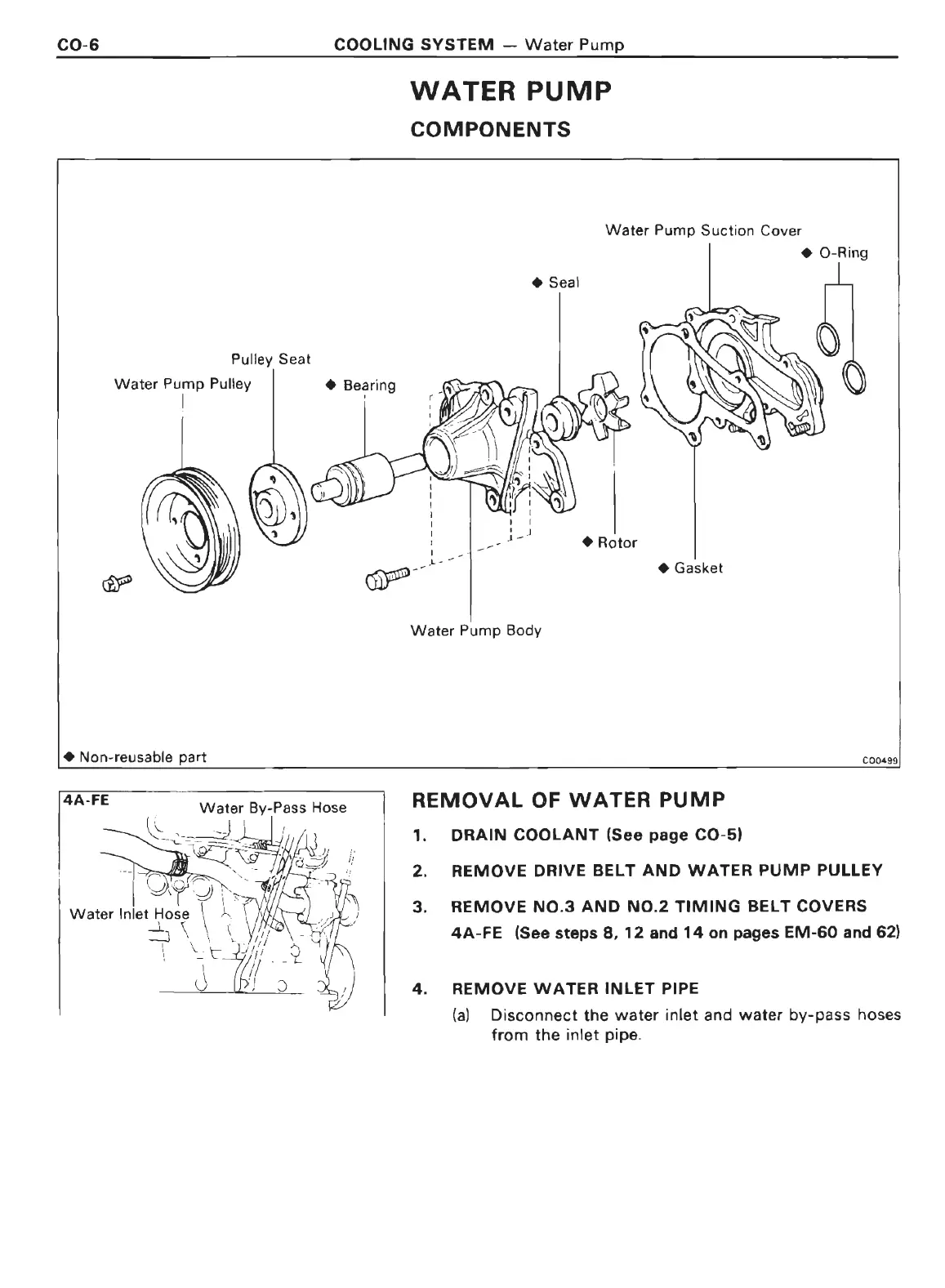

COOLING SYSTEM - Water Pump
WATER PUMP
COMPONENTS
Water Pump Suction Cover
~--
I
I
.L - -
•Seal
Water Pump Body
•Rotor
+Gasket
REMOVAL OF WATER PUMP
1. DRAIN COOLANT (See page C0-5)
+ 0-Ring
C00499
2. REMOVE DRIVE BELT AND WATER PUMP PULLEY
3. REMOVE N0.3 AND N0.2 TIMING BELT COVERS
4A-FE (See steps 8, 12 and 14 on pages EM-60 and 62)
4. REMOVE WATER INLET PIPE
(a) Disconnect the water inlet and water by-pass hoses
from the inlet pipe.

Toyota 4A-FE Specifications

General

Engine Type	Inline-4
Fuel System	EFI (Electronic Fuel Injection)
Valvetrain	DOHC, 4 valves per cylinder
Bore x Stroke	81.0 mm x 77.0 mm
Compression Ratio	9.5:1
Fuel Type	Gasoline
Displacement	1587 cm3
Power Output	115 hp (86 kW) @ 6000 rpm
Redline	6, 400–6, 800 rpm
