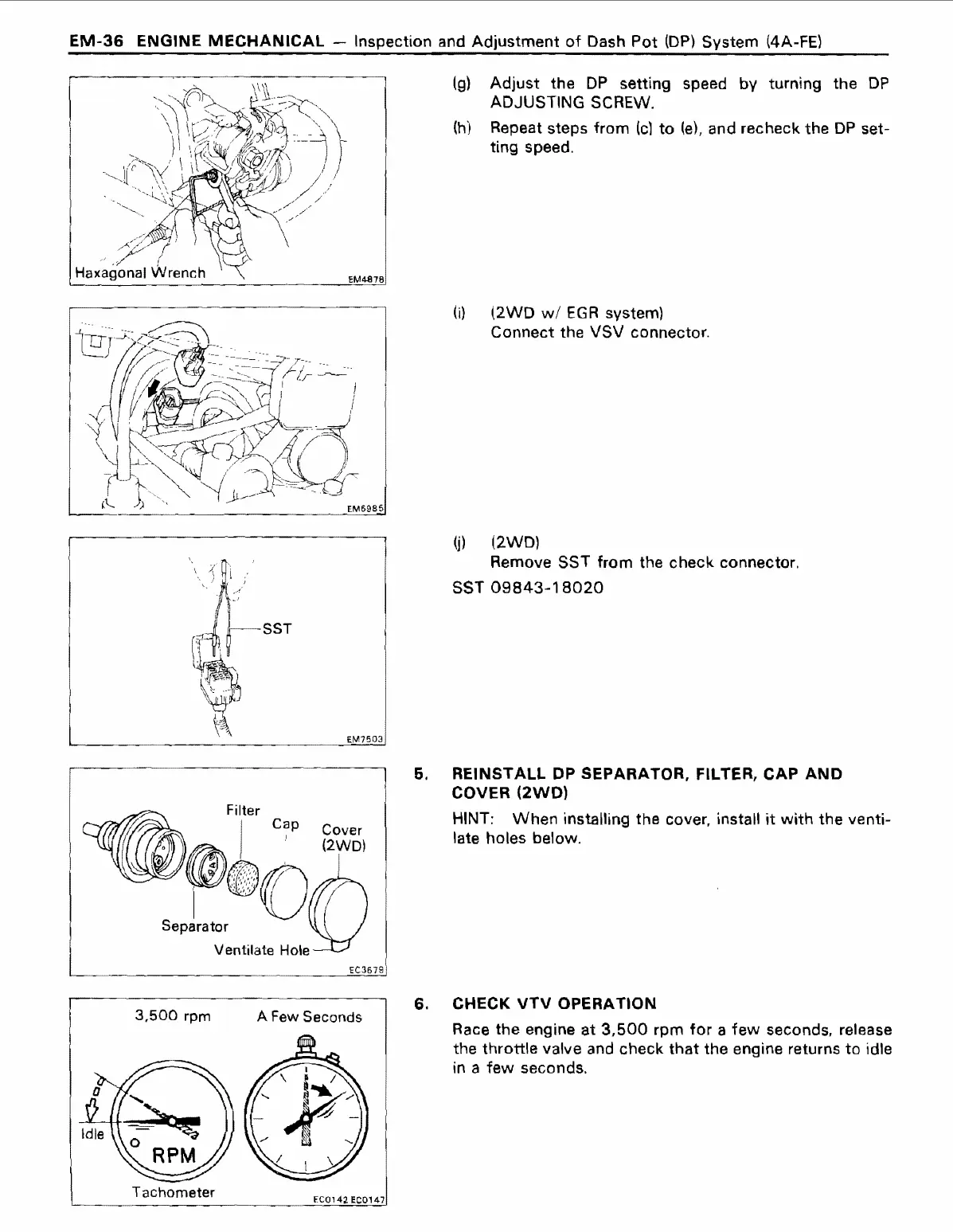

EM-36

ENGINE

MECHANICAL

- Inspection and

Adjustment

Dash

Pot

(DP)

System

(4A-FE)

Cap

Ventilate Hole

EM4878

EM7503

Cover

(2WD)

EC3679

3,500

rpm

A Few Seconds

Tachometer

EC0142 EC0147

(g)

Adjust

the

setting speed

turning the

ADJUSTING SCREW.

(h)

Repeat steps

from

(cl

(e),

and recheck the

set-

ting speed.

(i)

(2WD w/

EGA

system)

Connect the

VSV

connector.

(j)

(2WD)

Remove SST from the

check

connector.

SST

09843-18020

REINSTALL

SEPARATOR,

FILTER,

CAP

AND

COVER

(2WD)

HINT:

When

installing

the

cover, install

with

the

venti-

late holes below.

CHECK

VTV

OPERATION

Race the engine

3,500

rpm

for

few

seconds, release

the

throttle

valve and check

that

the

engine returns

idle

in a

few

seconds.
