MAST ADJUSTMENT
(QFV)
Lift
Roller Adjustment

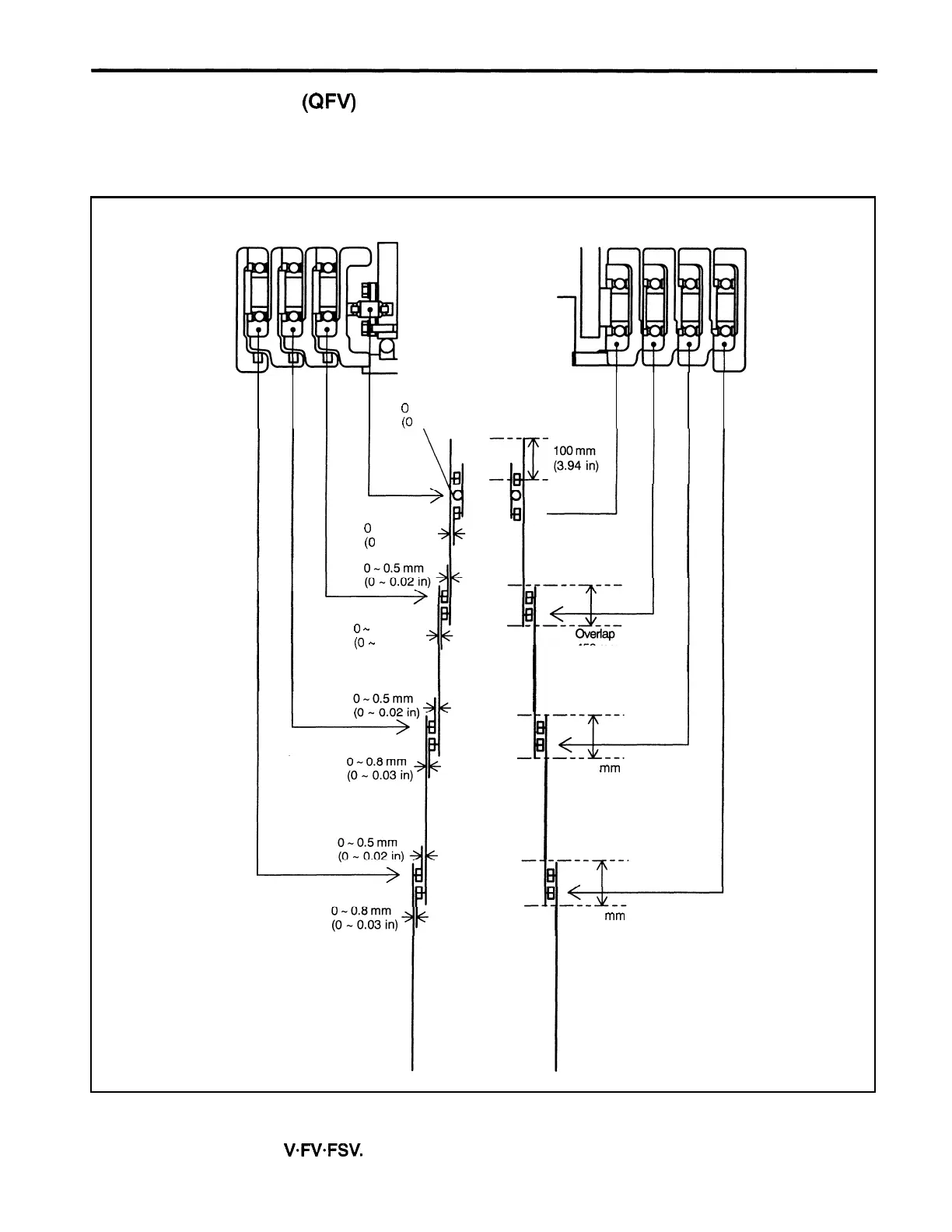

The lift roller adjustments, for most part, are same with
FSV
mast. Where to be adjusted are as shown:
Channel seen
from
the top Channel seen
from
the
bottom
0
-
0.5 mm
(0
-
0.02
in)
<
0
-
0.5 mm
(0
-
0.02
in)
0
-
0.8 mm
(0
-
0.03
in)
450 mm
(17.7
in)
450 mm
(17.7
in)
450 mm
(17.7
in)
Note:
The mast strip
&
shim adjustment between the mast channels can also be performed in the same
sequence with those of
V.FV.FSV.
