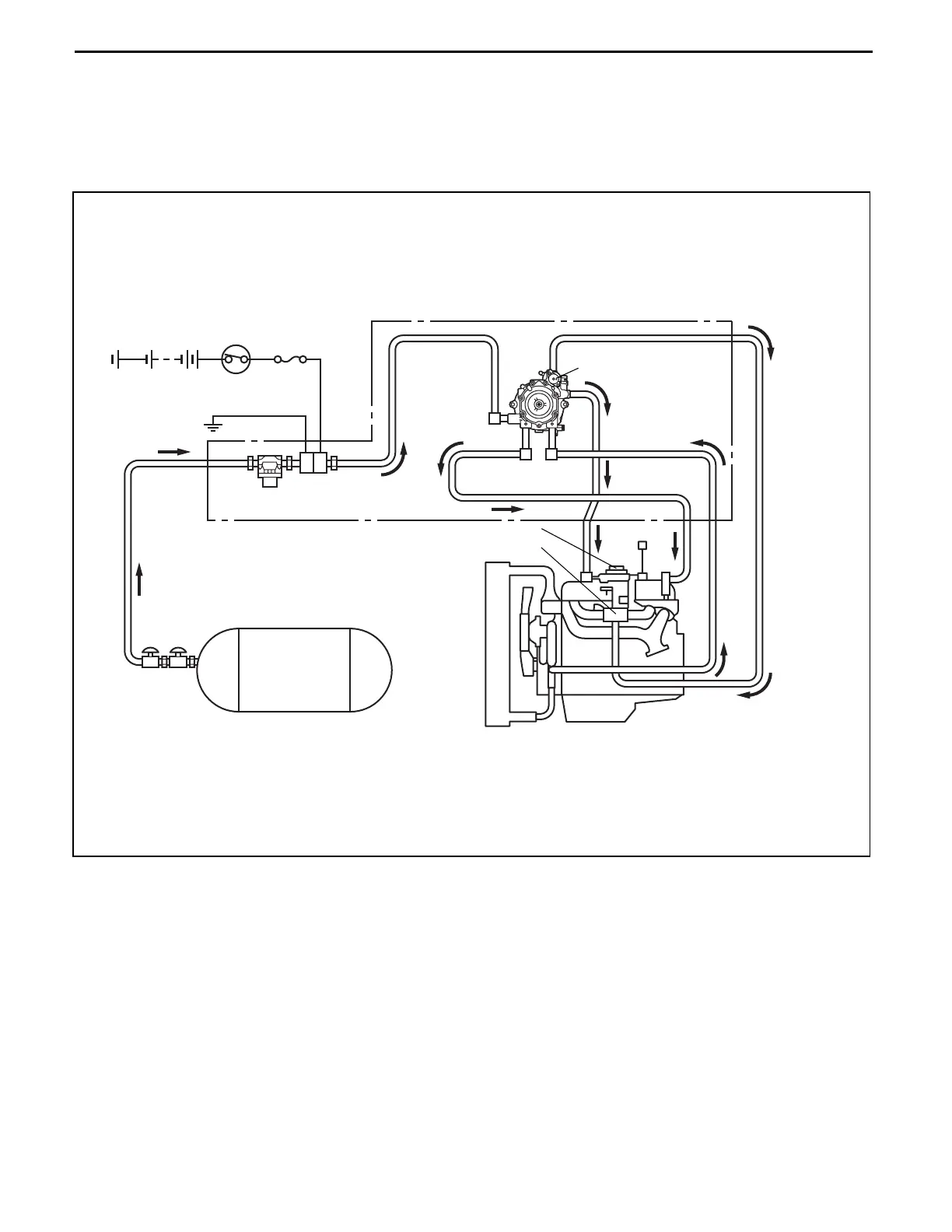

OUTLINE OF LPG DEVICE
LPG (in liquid form supplied from the cylinder) passes through the LPG filter in the engine room to remove foreign
matter and reaches to the regulator through the main solenoid valve. LPG is reduced and gasified in the regulator,
and supplied to engine with its pressure kept at a certain rate.
Engine coolant is led to the regulator for use as the heat source for LPG gasification.
Battery
Ignition
switch
Fuse
LPG
filter
Main
solenoid
valve
Valve
LPG
Cylinder
Regulator set
Regulator
Injector path
Main path
Coolant path
Slow solenoid valve
Engine
Adapter
Injector
01.book 2 ページ ２００７年２月２２日 木曜日 午後４時４６分
LPG Device for 4Y-E Engine
Section 1.3.1

Toyota 8FGU15 Specifications

General

Model	8FGU15
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	3000 lbs
Lift Height	189 inches
Tire Type	Pneumatic
Engine	Toyota 4Y
Power Source	Gasoline
