Toyota Corolla E12-A - HIDE AWAY 6 CD CHANGER INSTALLATION

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 19
05-04

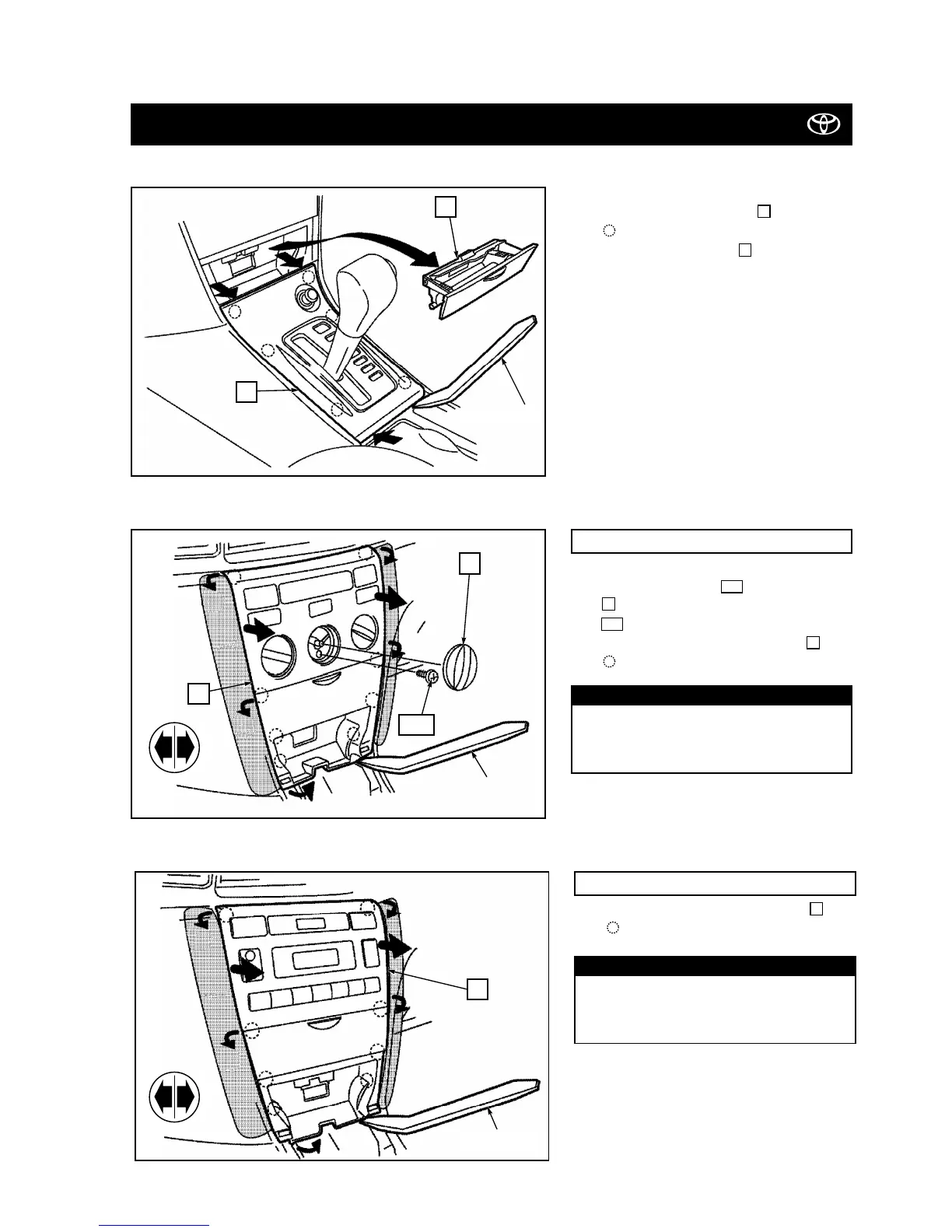

4. HIDE AWAY 6CD CHANGER INSTALLATION
1.
a) Remove the shift cover .
: Clip (6x)
b) Remove the ashtray .
2
1
Fig. 30
2
1
Nylon pry tool
IN CASE OF MANUAL AIR CONDITIONER
2.
a)
Remove the screw and control knob
.
: Screw (1x)
b) Remove the lower cluster panel .
: Clip (8x)
3
100
4
100
Fig. 31
3
Fig. 32
IN CASE OF AUTO AIR CONDITIONER
3. Remove the lower cluster panel .
: Clip (8x)
3
3
100
4
Nylon pry tool
Put the protective tapes on the shaded
areas. Be sure to remove the parts
carefully not to damage the section.
CAUTION
Put the protective tapes on the shaded
areas. Be sure to remove the parts
carefully not to damage the section.
CAUTION
Nylon pry tool
