Toyota Corolla E12-A - Final Subwoofer Mounting and Securing

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 33
05-04
8.
a) Tear off the felt from the floor carpet
.
b) Fit and attach the base bracket
(2x)
to the floor carpet using cushion
tape .
: Cushion tape (5mm) (2x)
c) Replace the felt and floor carpet .
d) Fit the subwoofer and brackets
to the base brackets (2x) using nuts
and caps .
: Nut (M5) (4x)
: Cap (4x)
e) Connect the subwoofer wire harness
to the subwoofer .
24
30
33
32
33
32
31
26
24
25
26
28
28
25
31
25
26

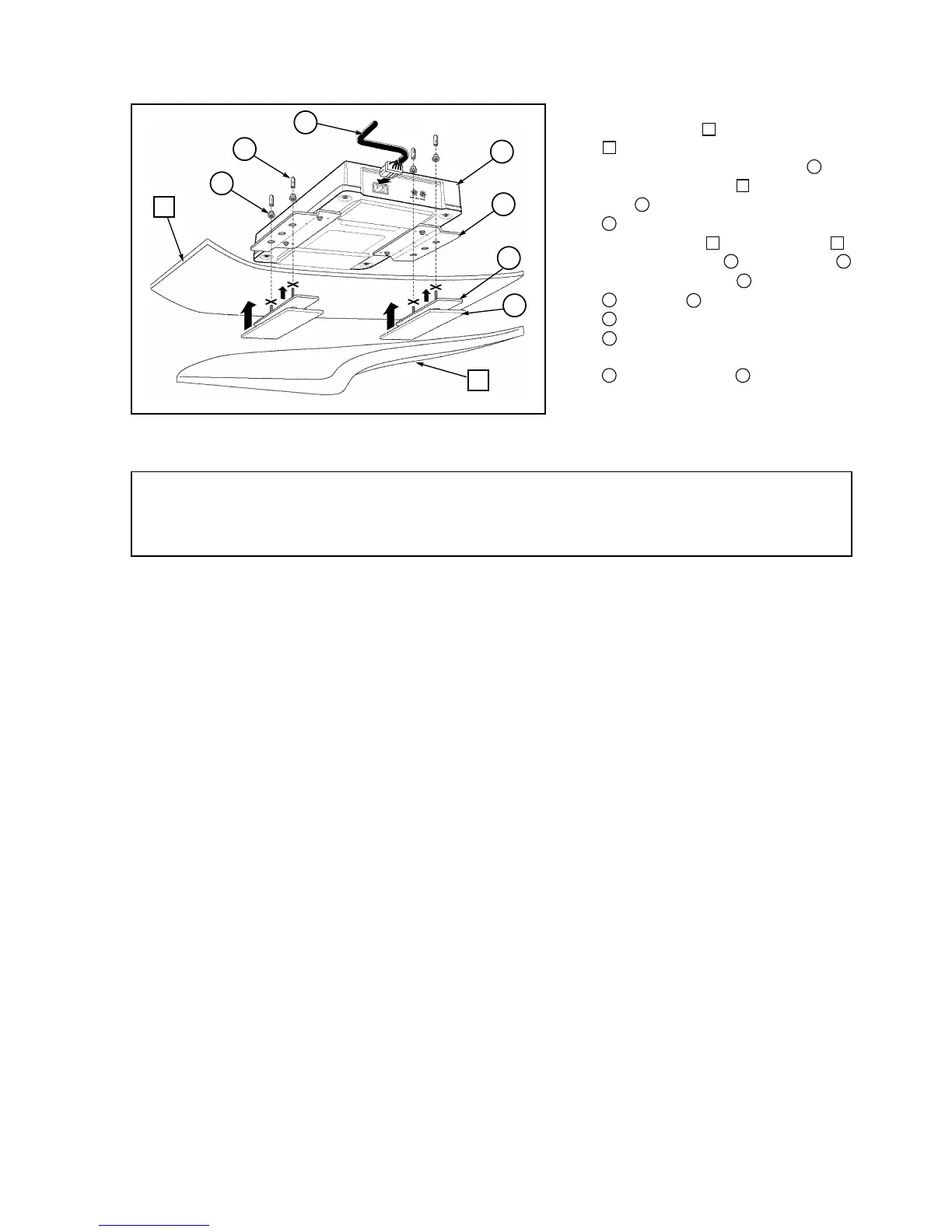

Fig. 66
26
25
30
33
32
31
28
26
24
AFTER INSTALLATION AND FUNCTION CHECK, BE CERTAIN TO RE-FIT PANELS
AND CONNECTORS CORRECTLY AND TIGHTEN ALL BOLTS TO THE SPECIFIED
TORQUE SETTINGS IN LINE WITH THE REPAIR MANUAL.
