Toyota Corolla E12-D - Subwoofer Wiring and Audio Connection

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 32
05-04

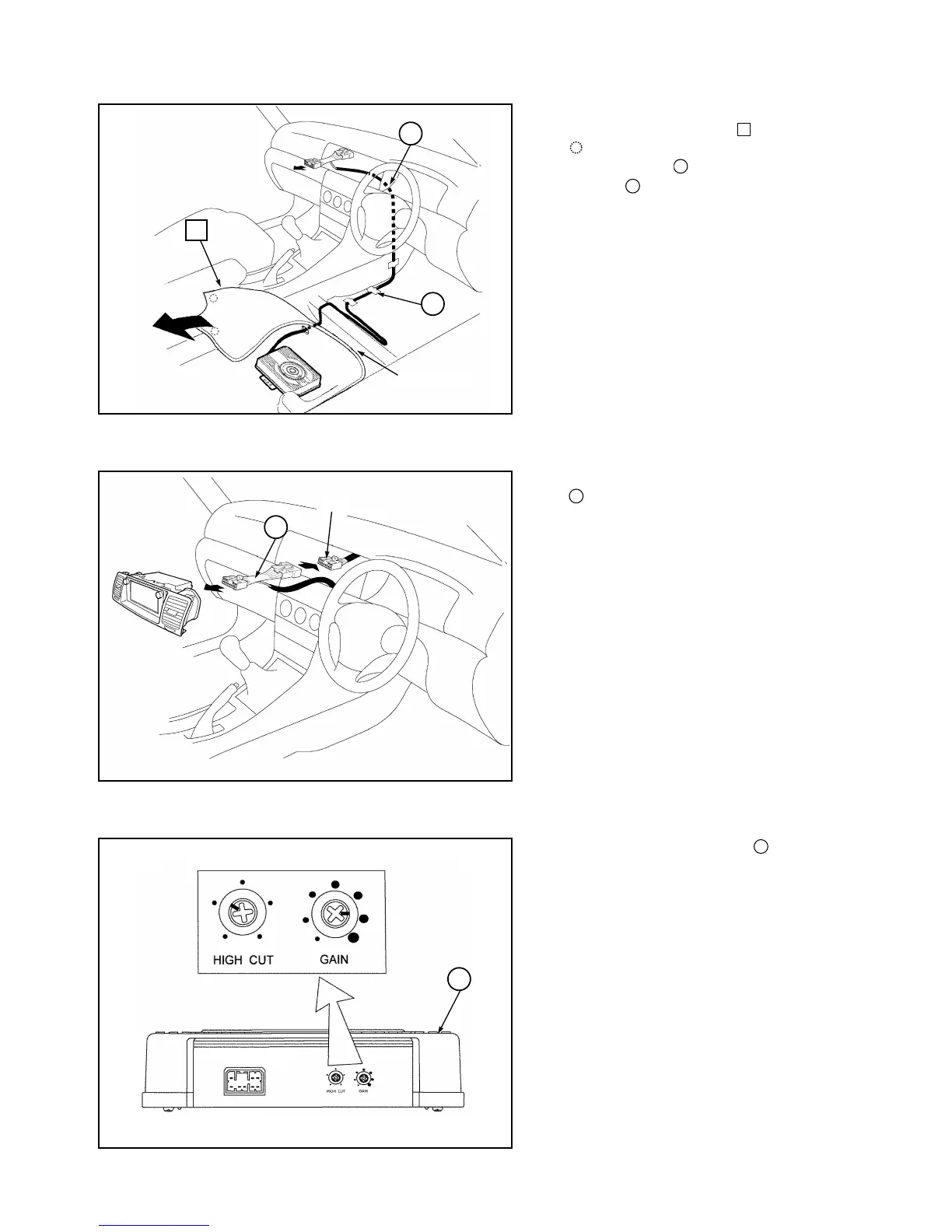

5.
a) Pull back the floor carpet .
: Clip (2x)
b) Route and tape the subwoofer wire
harness as shown.
30
29
25
Fig. 63
Excess wire
25
30
29
6. Connect the subwoofer wire harness
to the 10P audio connector of the
vehicle wire harness and to the audio
unit.
30
Fig. 64
10P
30
7. Before fitting the subwoofer adjust
the sensitivity to the correct position.
24
Fig. 65
24
