4
Chapter 1
Get to Know About Your Router

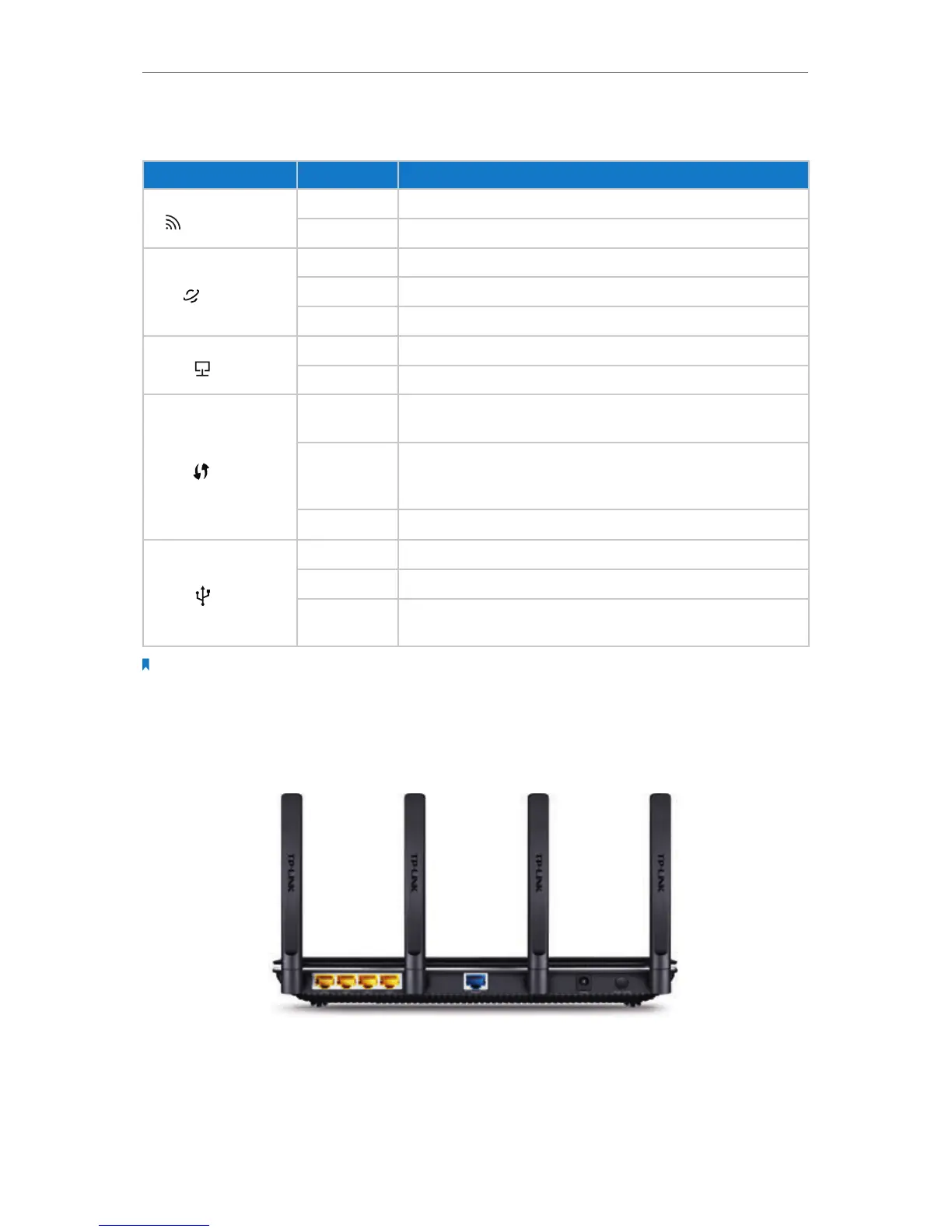

LED Explanation
Name Status Indication
(Wireless 5GHz)
On The wireless 5GHz band is working normally.
Off The wireless 5GHz band is disabled.
(Internet)
White The router is connected to the Internet.
Orange The WAN port is connected, but there is no Internet connection.
Off The WAN port is not connected.
(LAN)
On At least one LAN port is connected.
Off No LAN port is connected.
(WPS)
On
A wireless device has been successfully added to the network by
WPS (Wi-Fi Protected Setup) function.
Flashing
WPS is in progress. This will take about 2 minutes. Please press the
WPS button on other wireless devices that you want to add to the
network while the LED is flashing.
Off
WPS is not working.
(USB)
On The USB device is ready to use.
Flashing The USB device is being identified.
Off
No USB device is plugged into the USB port or the USB device is not
identified or the USB device has been safely ejected.
Note:
After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 5 minutes
and then turn off.
1. 2. 2. The Back Panel
The router’s back panel shows the connection ports, buttons and antennas (view from
left to right). Refer to the following for detailed instructions.
