Chapter 1
Get to Know About Your Router
1. 3. 2. Back Panel

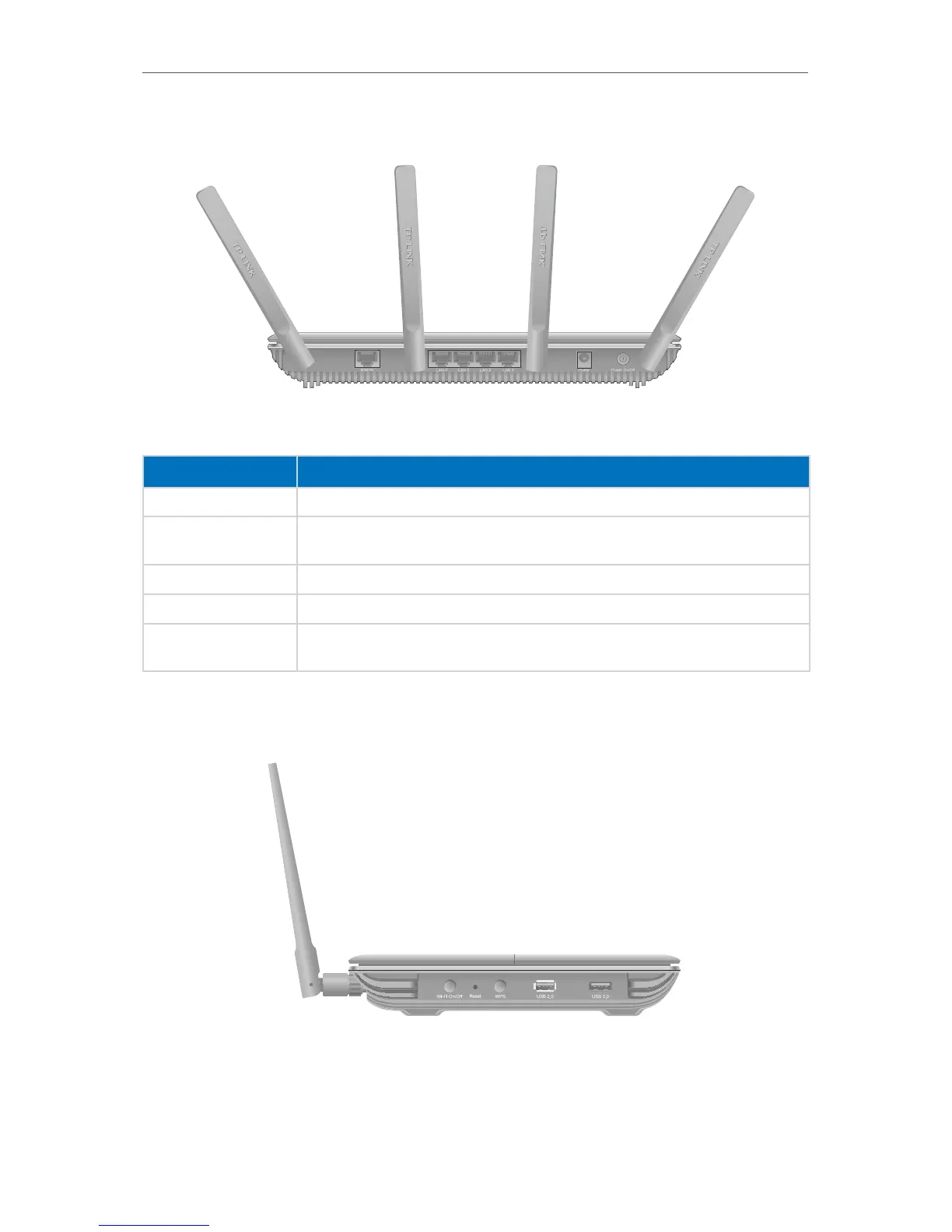

The router’s back panel shows the connection ports, buttons and antennas (view from
left to right). Refer to the following for detailed instructions.
Item Description
Internet This port is where you will connect the DSL/cable Modem, or Ethernet.
LAN1, LAN2, LAN3,
LAN4
These ports (1, 2, 3, 4) connect the router to the local PC(s).
Power For connecting the router to power socket via the provided power adapter.
Power On/Off The switch for the power. Press it to power on or off the router.
Antennas
Used for wireless operation and data transmit. Upright them for the best Wi-Fi
performance.
1. 3. 3. Side Panel
The router’s side panel shows the USB ports and buttons (view from left to right). Refer
to the following for detailed instructions.
