TP-Link Archer T4U User Manual

Archer T4U TP-LINK Wireless USB Adapter User Guide
35
Chapter 6 Uninstall Software
6.1 In Windows XP/7
The software uninstall steps are similar in Windows XP, and Windows 7, here we just use
Windows 7 as an example.
6.1.1 Uninstall the utility software from your PC
1. On the Windows taskbar, click the Start button, click All programsÆTP-LINK, and then
click Uninstall-TP-LINK Wireless Configuration Utility.

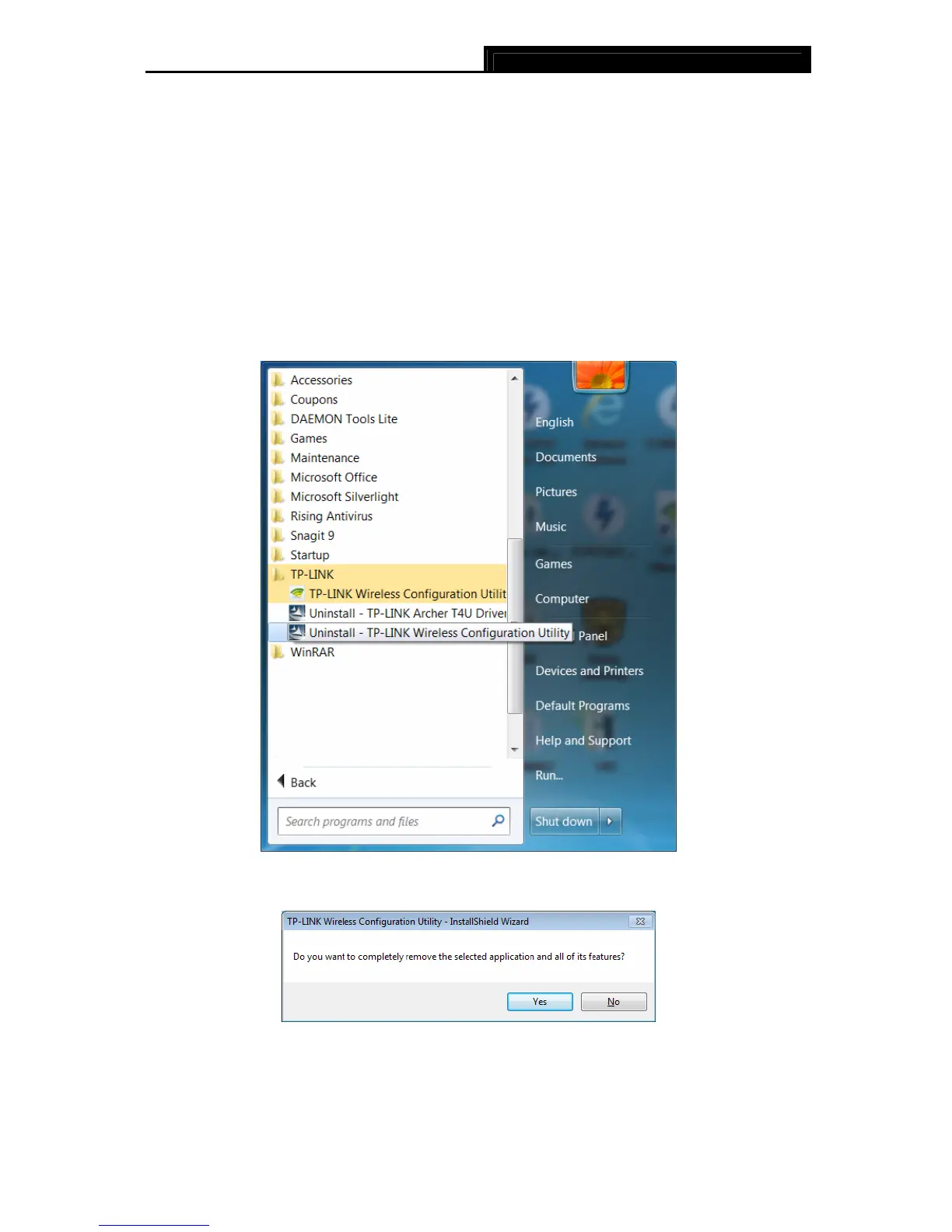

Figure 6-1 Uninstall Utility
2. Click Yes to start uninstalling the utility software from your PC.
Figure 6-2

TP-Link Archer T4U Specifications

General

Internal	No
Certification	CE, FCC
Component for	PC/Laptop
Product color	Black
LED indicators	Power
WPS push button	Yes
Antenna direction type	Omni-directional
Interface	WLAN
USB version	3.2 Gen 1 (3.1 Gen 1)
Connectivity technology	Wireless
Antennas quantity	2
Transmit power range	20 - 20 dBmW
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	-
Maximum data transfer rate	867 Mbit/s
WLAN data transfer rates supported	11, 54, 300, 400, 867 Mbit/s
Sustainability certificates	RoHS
Package depth	148 mm
Package width	207 mm
Package height	42 mm
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows XP
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.4 mm
Width	92.4 mm
Height	13.9 mm
