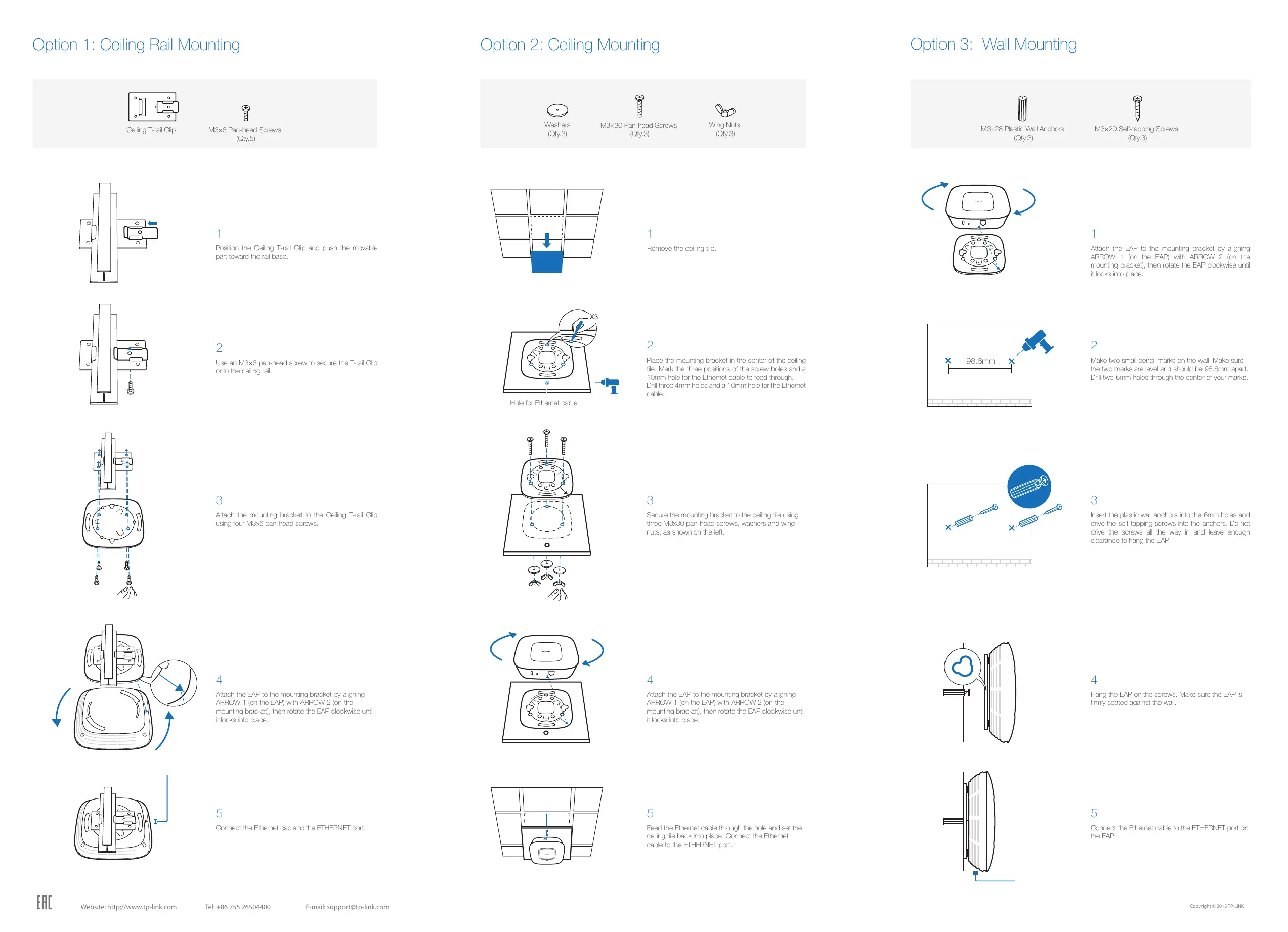

TP-Link EAP110 Quick Installation Guide

Option 1: Ceiling Rail Mounting
Option 3: Wall Mounting
Option 2: Ceiling Mounting
Website: http://www.tp-link.com Tel: +86 755 26504400 E-mail: support@tp-link.com
Copyright © 2015 TP-LINK
M3×20 Self-tapping Screws
(Qty.3)
M3×28 Plastic Wall Anchors
(Qty.3)
5
Connect the Ethernet cable to the ETHERNET port on
the EAP.
5
Feed the Ethernet cable through the hole and set the
ceiling tile back into place. Connect the Ethernet
cable to the ETHERNET port.
5
Connect the Ethernet cable to the ETHERNET port.
2
Make two small pencil marks on the wall. Make sure
the two marks are level and should be 98.6mm apart.
Drill two 6mm holes through the center of your marks.
2
Place the mounting bracket in the center of the ceiling
tile. Mark the three positions of the screw holes and a
10mm hole for the Ethernet cable to feed through.
Drill three 4mm holes and a 10mm hole for the Ethernet
cable.
2
Use an M3×6 pan-head screw to secure the T-rail Clip
onto the ceiling rail.
1
Position the Ceiling T-rail Clip and push the movable
part toward the rail base.
1
Remove the ceiling tile.
1
Attach the EAP to the mounting bracket by aligning
ARROW 1 (on the EAP) with ARROW 2 (on the
mounting bracket), then rotate the EAP clockwise until
it locks into place.
3
Insert the plastic wall anchors into the 6mm holes and
drive the self-tapping screws into the anchors. Do not
drive the screws all the way in and leave enough
clearance to hang the EAP.
3
Secure the mounting bracket to the ceiling tile using
three M3x30 pan-head screws, washers and wing
nuts, as shown on the left.
3
Attach the mounting bracket to the Ceiling T-rail Clip
using four M3x6 pan-head screws.
4
Hang the EAP on the screws. Make sure the EAP is
firmly seated against the wall.
4
Attach the EAP to the mounting bracket by aligning
ARROW 1 (on the EAP) with ARROW 2 (on the
mounting bracket), then rotate the EAP clockwise until
it locks into place.
4
Attach the EAP to the mounting bracket by aligning
ARROW 1 (on the EAP) with ARROW 2 (on the
mounting bracket), then rotate the EAP clockwise until
it locks into place.
Ceiling T-rail Clip M3×6 Pan-head Screws
(Qty.5)
Wing Nuts
(Qty.3)
Washers
(Qty.3)
M3×30 Pan-head Screws
(Qty.3)
Hole for Ethernet cable
X3
98.6mm
All manuals and user guides at all-guides.com

TP-Link EAP110 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC, RoHS
Product color	White
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Input current	1 A
AC input voltage	24 V
Power consumption (typical)	7.7 W
Antenna features	Integrated antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi

Weight and Dimensions

Width	180 mm
Height	47.5 mm
