TP-Link Jetstream Series Installation Guide

JetStream Smart Switch
11Installation

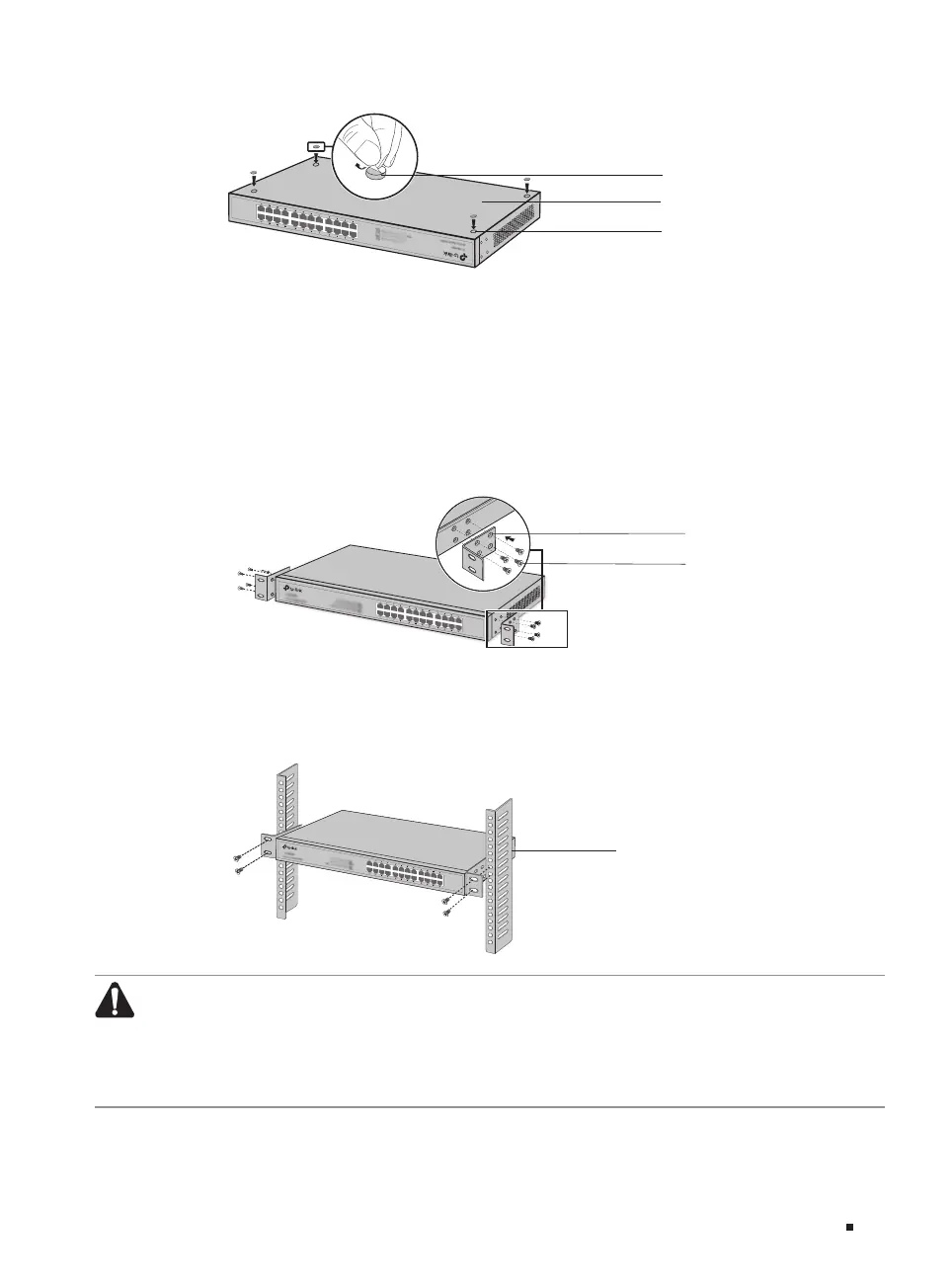

Figure 2-1 Desktop Installation
Feet
Bottom of the Device
Notch
■
Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below:
1. Check the efficiency of the grounding system and the stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as
illustrated in the following figure.
Figure 2-2 Bracket Installation
Rack-mounting Bracket
Screw
3. After the brackets are attached to the device, use suitable screws (not provided) to secure the
brackets to the rack, as illustrated in the following figure.
Figure 2-3 Rack Installation
Rack
Caution:
■
Leave 5 to 10 cm gaps around the devices for air circulation.
■
Avoid placing heavy things on the device.
■
Place the device with its bottom facing downwards.
■
Mount devices in sequence from the bottom to top of the rack and ensure a certain clearance
between devices for the purpose of heat dissipation.

TP-Link Jetstream Series Specifications

General

Model	Jetstream Series
Type	Multiple types exist within the Jetstream Series
Ports	Multiple port configurations exist within the Jetstream Series
Layer	Layer 2/Layer 3
PoE Support	Available on some models
Uplink Ports	Varies depending on the specific model
Switching Capacity	Varies depending on the specific model
Forwarding Rate	Varies depending on the specific model
MAC Address Table	Varies depending on the specific model
Packet Buffer	Varies depending on the specific model
Power Consumption	Varies depending on the specific model
Dimensions	Varies depending on the specific model
Weight	Varies depending on the specific model
VLAN Support	Yes
QoS	Yes
Management	CLI, SNMP
