TP-Link m7310 User Manual

15
Chapter 2
Set Up Internet Connection

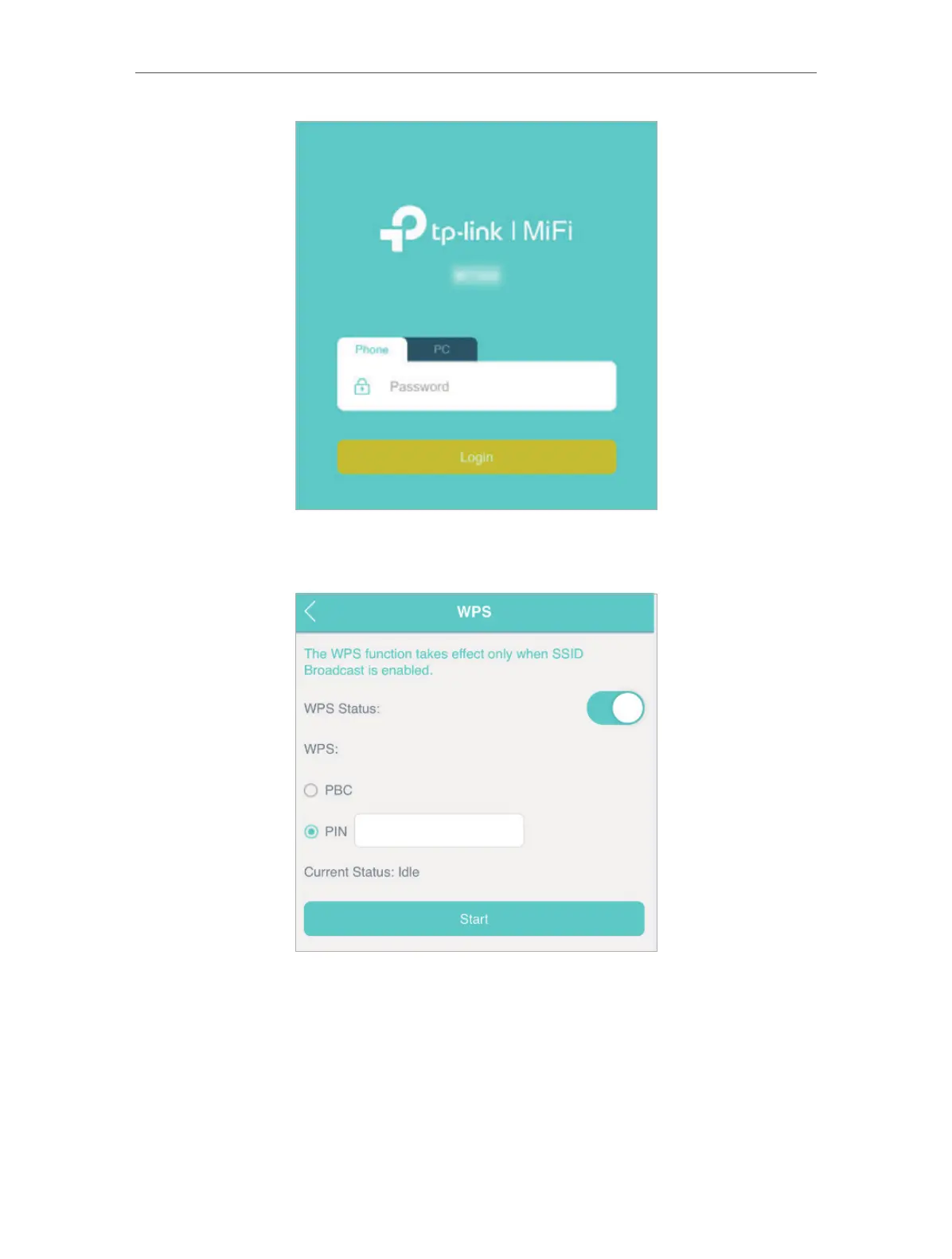

3 ) Go to Device > Advanced > WPS, check the PIN box and enter the PIN of
your WPS-supported device in the field.
4 ) Click Start to start the WPS process, and the Current Status will change
from Idle to Succeed indicating your WPS-supported device is connected
to the Mobile Wi-Fi.

TP-Link m7310 Specifications

General

Wi-Fi	Yes
WLAN data transfer rates supported	150 Mbit/s
Device type	Cellular wireless network equipment
Certification	CE, RoHS
Product color	Black, Grey
Compatible memory cards	MicroSD (TransFlash)
Data network	EDGE, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
GSM bands supported	850, 900, 1800, 1900 MHz
UMTS bands supported	900, 2100 MHz
Number of simultaneous SIM cards	1
Battery voltage	5 V
Battery capacity	2000 mAh
Display diagonal	1.44 \
Security algorithms	WPA-PSK, WPA2-PSK
Operating frequency	2.4, 5 MHz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Portable

Weight and Dimensions

Depth	60.5 mm
Width	98.5 mm
Height	16 mm
