TP-Link m7310 User Manual

49
Chapter 7 Customize Your Network
7. 4. Configure Dial-up
7. 4. 1. Configure Dial-up Settings
If you are in a location beyond your mobile carrier’s service area, you may need to
configure the dial-up settings to access the internet provided by a local mobile
carrier.
1. Visit http://tplinkmifi.net, and log in with the password you set for the Mobile
Wi-Fi.
2. Go to Dial-up.

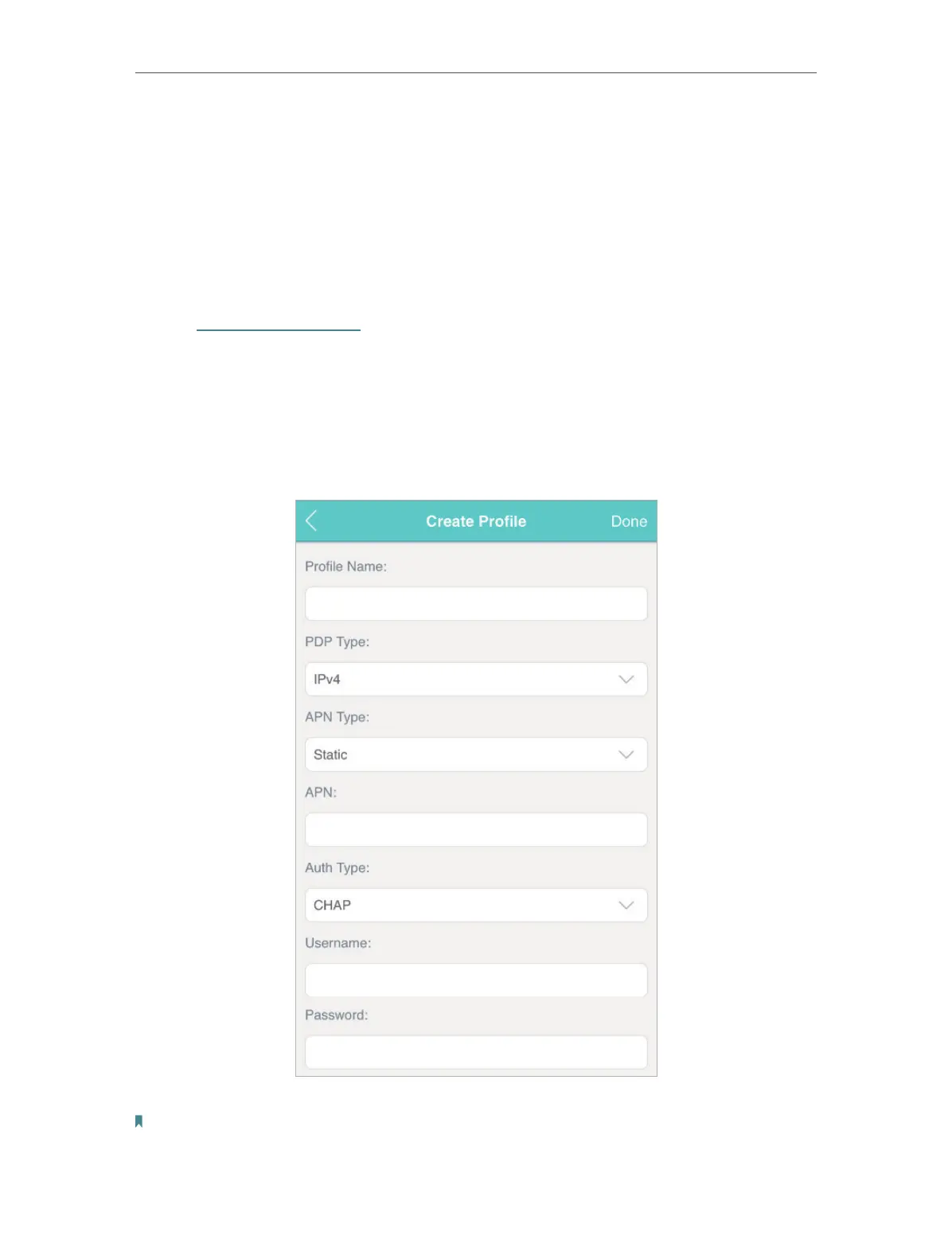

3. Tap Create to build a dial-up profile.
4. Specify a name for the profile and fill in the parameters provided by your
carrier.
5. Tap Done and then tap Ye s in the pop-up to apply the new profile.
Note:
1. Mobile Data is enabled by default. If disabled, internet access is prohibited.
2. Data Roaming is disabled by default. If enabled, data service is allowed when roaming.

TP-Link m7310 Specifications

General

Wi-Fi	Yes
WLAN data transfer rates supported	150 Mbit/s
Device type	Cellular wireless network equipment
Certification	CE, RoHS
Product color	Black, Grey
Compatible memory cards	MicroSD (TransFlash)
Data network	EDGE, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
GSM bands supported	850, 900, 1800, 1900 MHz
UMTS bands supported	900, 2100 MHz
Number of simultaneous SIM cards	1
Battery voltage	5 V
Battery capacity	2000 mAh
Display diagonal	1.44 \
Security algorithms	WPA-PSK, WPA2-PSK
Operating frequency	2.4, 5 MHz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Portable

Weight and Dimensions

Depth	60.5 mm
Width	98.5 mm
Height	16 mm
