TP-Link m7310 User Manual

40
Chapter 6
Share Files on SD Card

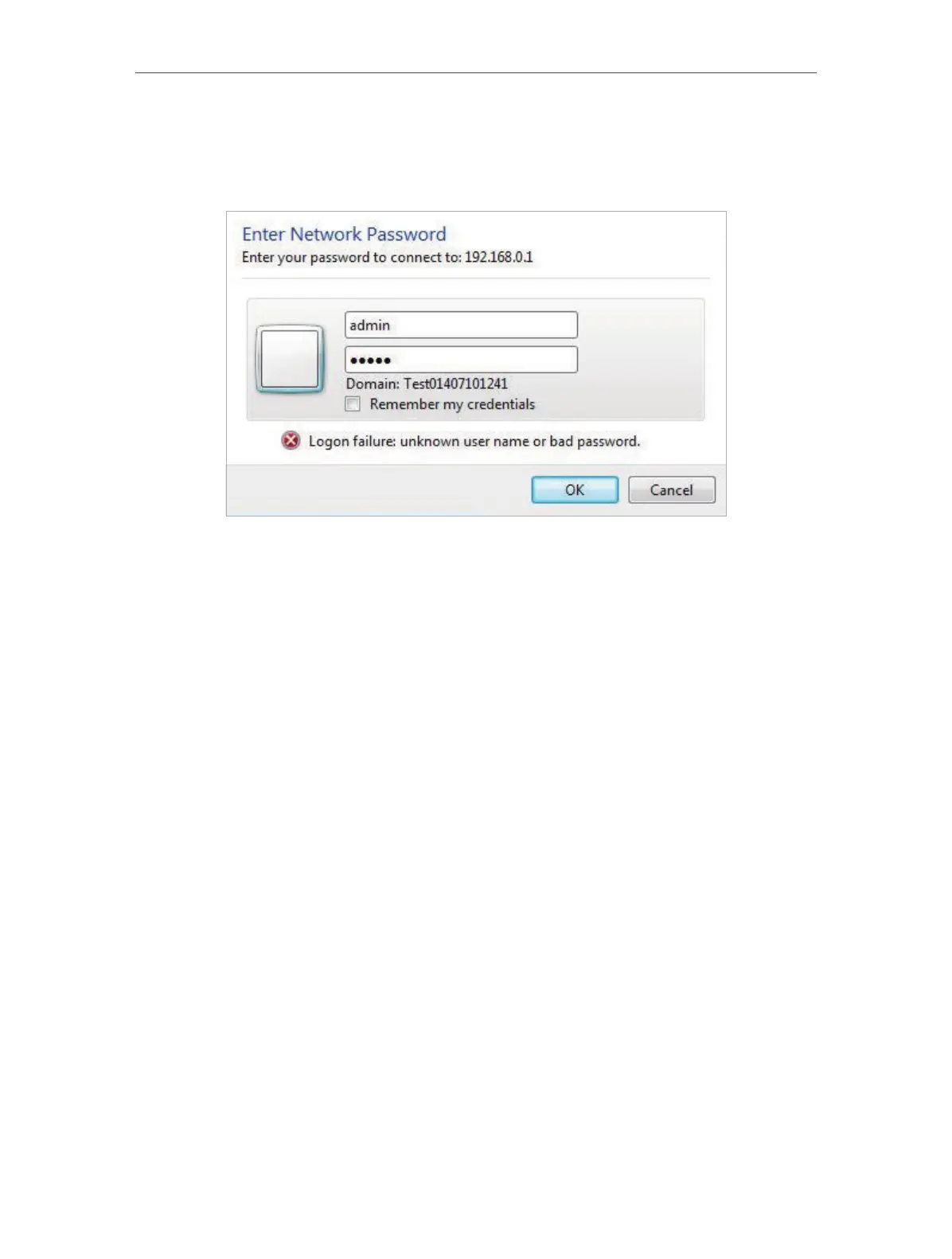

6. For anonymous access, you can now access the SD card. For signed access,
enter the login username and password in the authentication window and
click OK. Then you can access the SD card.
6. 2. Access via USB Mode
You can connect your computer to the Mobile Wi-Fi via a USB cable to access
the SD card directly.
1. Select By USB for Access Mode.

TP-Link m7310 Specifications

General

Wi-Fi	Yes
WLAN data transfer rates supported	150 Mbit/s
Device type	Cellular wireless network equipment
Certification	CE, RoHS
Product color	Black, Grey
Compatible memory cards	MicroSD (TransFlash)
Data network	EDGE, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
GSM bands supported	850, 900, 1800, 1900 MHz
UMTS bands supported	900, 2100 MHz
Number of simultaneous SIM cards	1
Battery voltage	5 V
Battery capacity	2000 mAh
Display diagonal	1.44 \
Security algorithms	WPA-PSK, WPA2-PSK
Operating frequency	2.4, 5 MHz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Portable

Weight and Dimensions

Depth	60.5 mm
Width	98.5 mm
Height	16 mm
