-122-

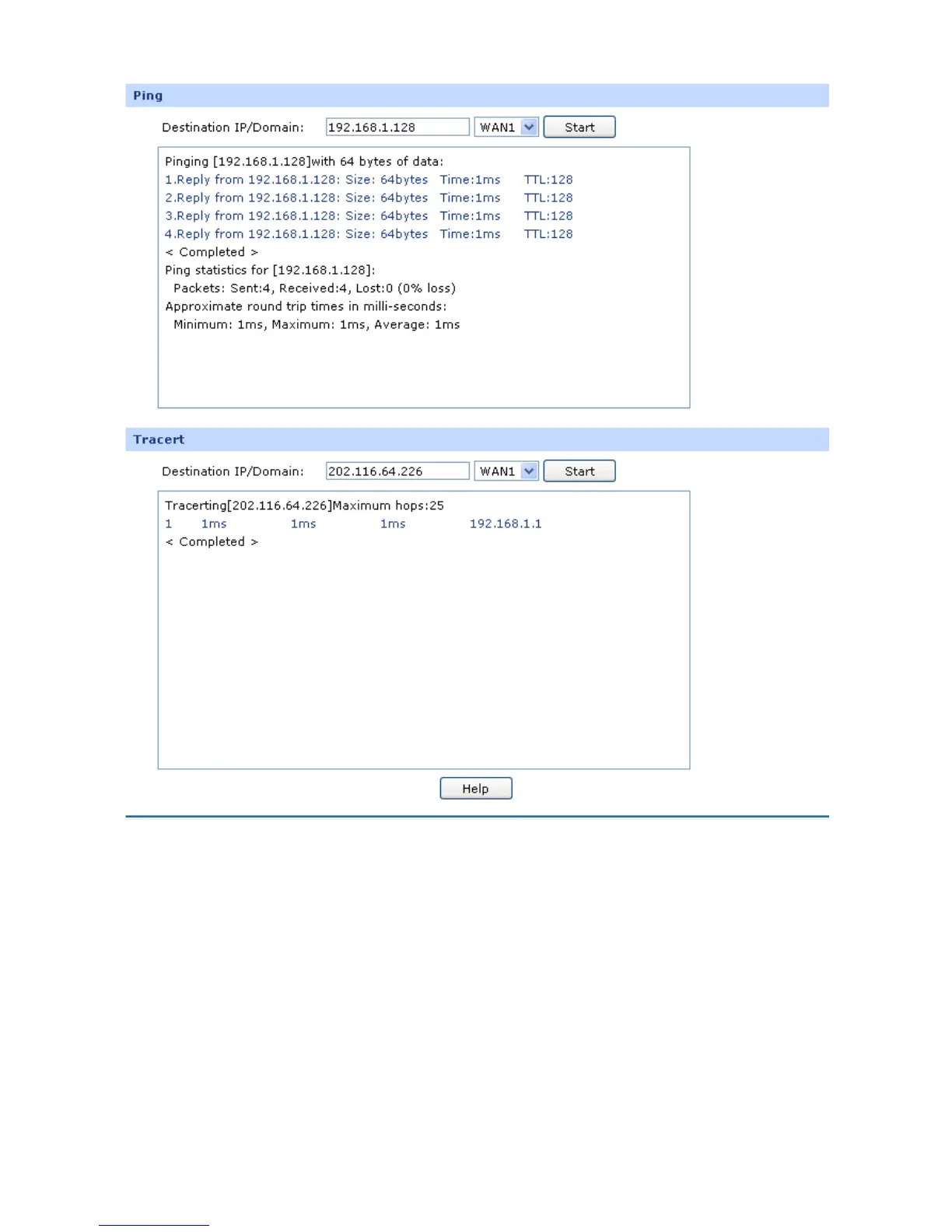

Figure 3-87 Diagnostics
The following items are displayed on this screen:
 Ping
Destination IP/Domain: Enter destination IP address or Domain name here. Then select a
port for testing, if you select “Auto”, the Router will select the
interface of destination automatically. After clicking <Start> button,
the Router will send Ping packets to test the network connectivity
and reachability of the host and the results will be displayed in the
box below.
 Tracert
Destination IP/Domain: Enter destination IP address or Domain name here. Then select a
port for testing, if Auto is selected, the Router will select the interface
