-121-

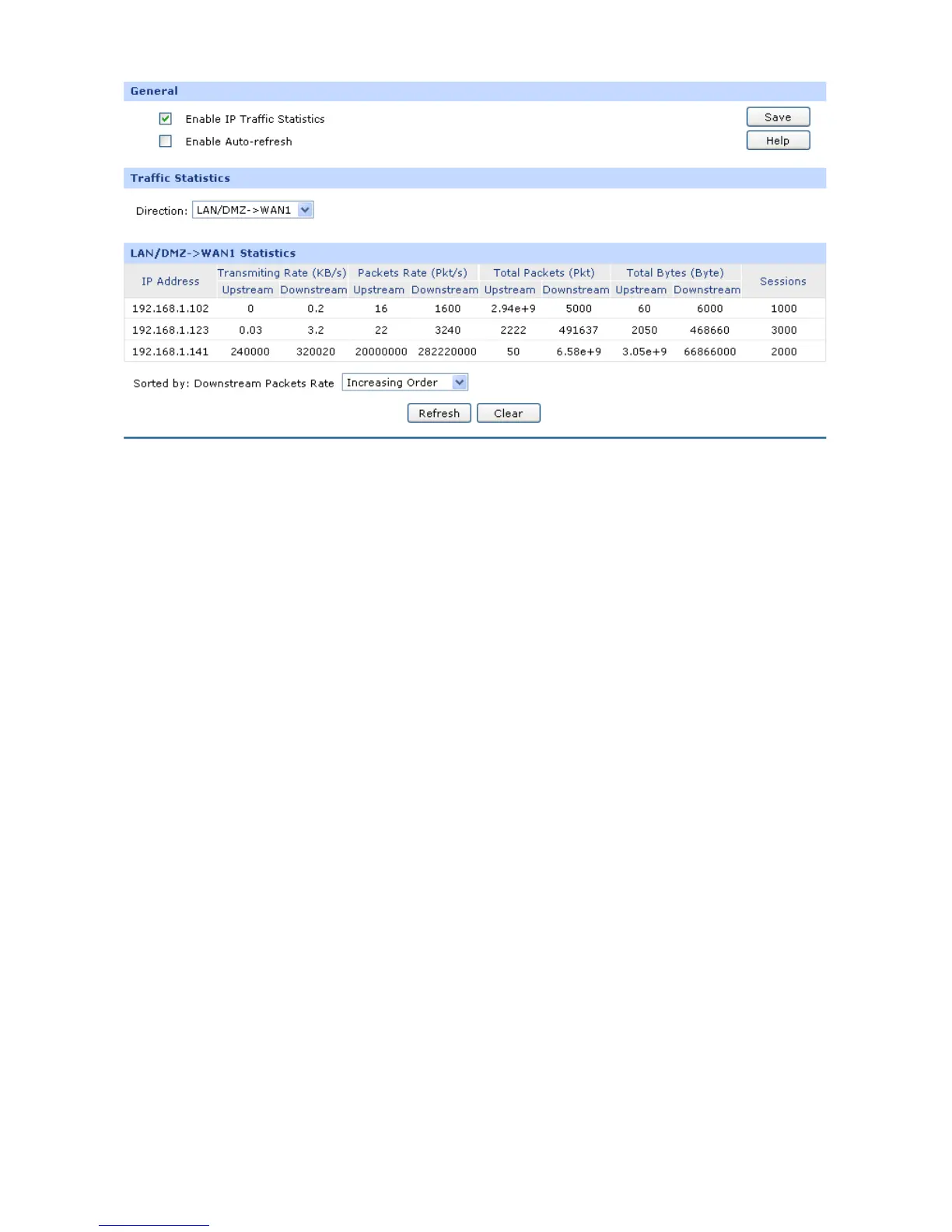

Figure 3-86 IP Traffic Statistics
The following items are displayed on this screen:
General
Enable IP Traffic
Statistics:
Allows you to enable or disable IP Traffic Statistics.
Enable Auto-refresh:
Allows you to enable/disable refreshing the IP Traffic Statistics
automatically. The default refresh interval is 10 seconds.
Traffic Statistics
Direction:
Select the direction in the drop-down list to get the Flow Statistics of the
specified direction.
IP Traffic Statistics
This table displays the detailed traffic information of corresponding PCs.
Sorted by:
Select the rule for displaying the traffic information.
3.7.5 Diagnostics
3.7.5.1 Diagnostics
This Router provides Ping test and Tracert test functions for network diagnose.
Choose the menu MaintenanceDiagnosticsDiagnostics to load the following page.
