-143-
4.3.4.3 Attack Defense
Choose the menu FirewallAttack DefenseAttack Defense to load the configuration page. Select
the options desired to be enabled as Figure 4-20 shows, and then click the <Save> button.

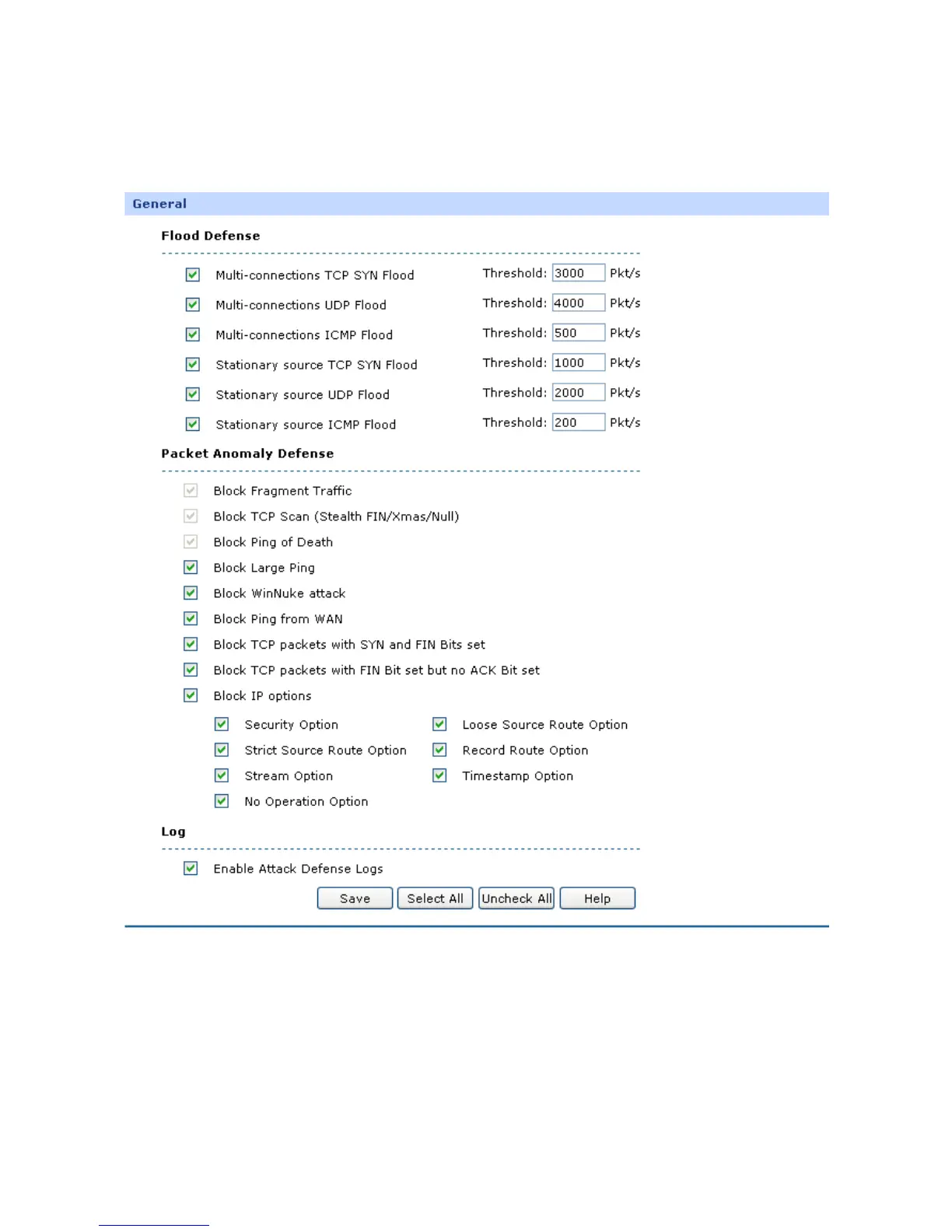

Figure 4-20 Attack Defense
4.3.4.4 Traffic Monitoring
1) Port Mirror
Choose the menu NetworkSwitchPort Mirror to load the configuration page. Check the box
before Enable Port Mirror and select the Ingress&Egress mode. Select the Port 5 for the Mirroring
Port and the Port 3 and the Port 4 for the Mirrored ports. Click the <Save> button to apply.
