-136-
4.3.3 Network Management
To manage the enterprise network effectively and forbid the Hosts within the IP range of
192.168.0.30-192.168.0.50 to use IM/P2P application, you can set up a User Group and specify the
network bandwidth limit and session limit for this group. The detailed configurations are as follows.
4.3.3.1 User Group
Create a User Group with all the Hosts in the IP range of 192.168.0.30-192.168.0.50 as its group
members.
Group
Choose the menu User GroupGroup to load the following page. Enter the Group Name and the
Description to create a Group as the following figure shows.

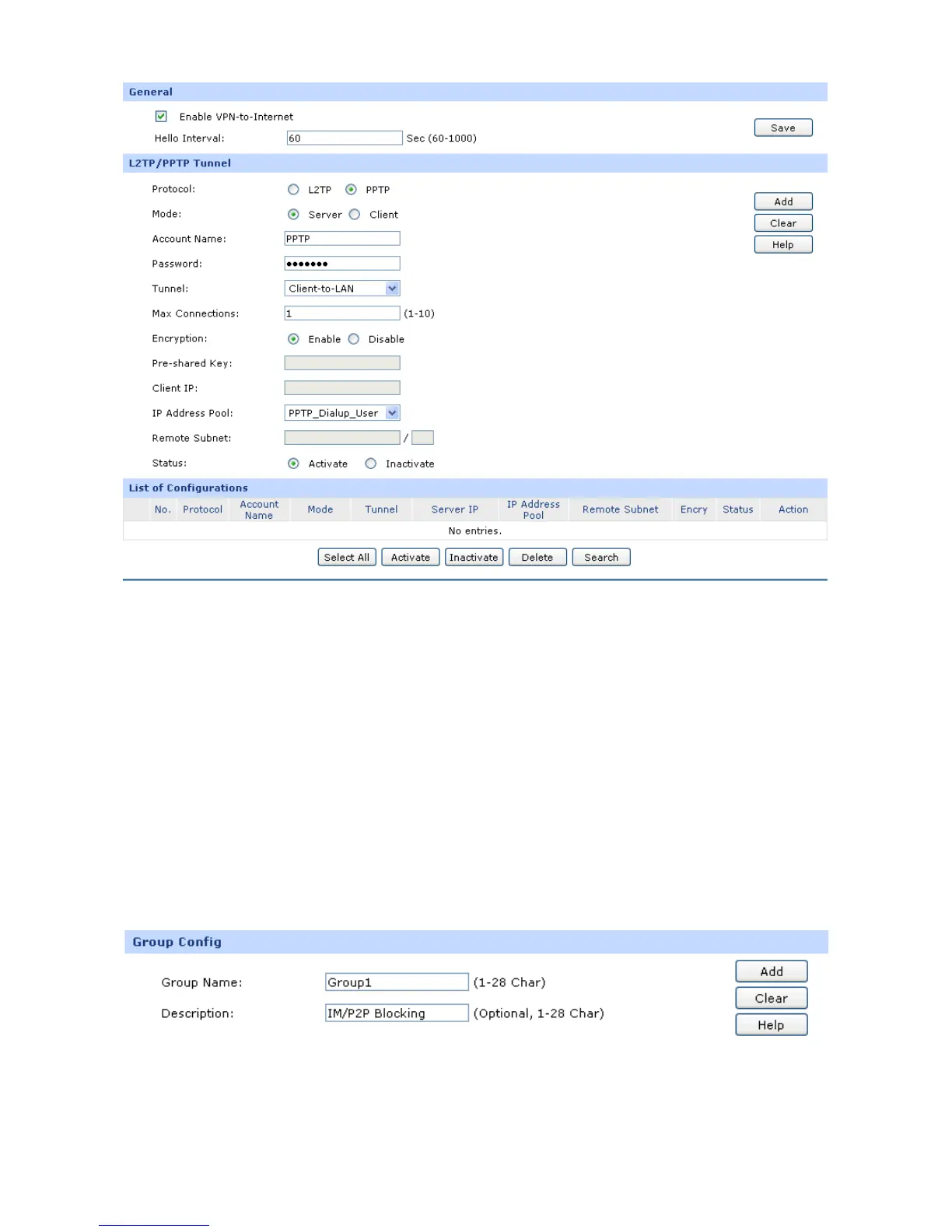

Figure 4-9 Group Config
User
