-139-

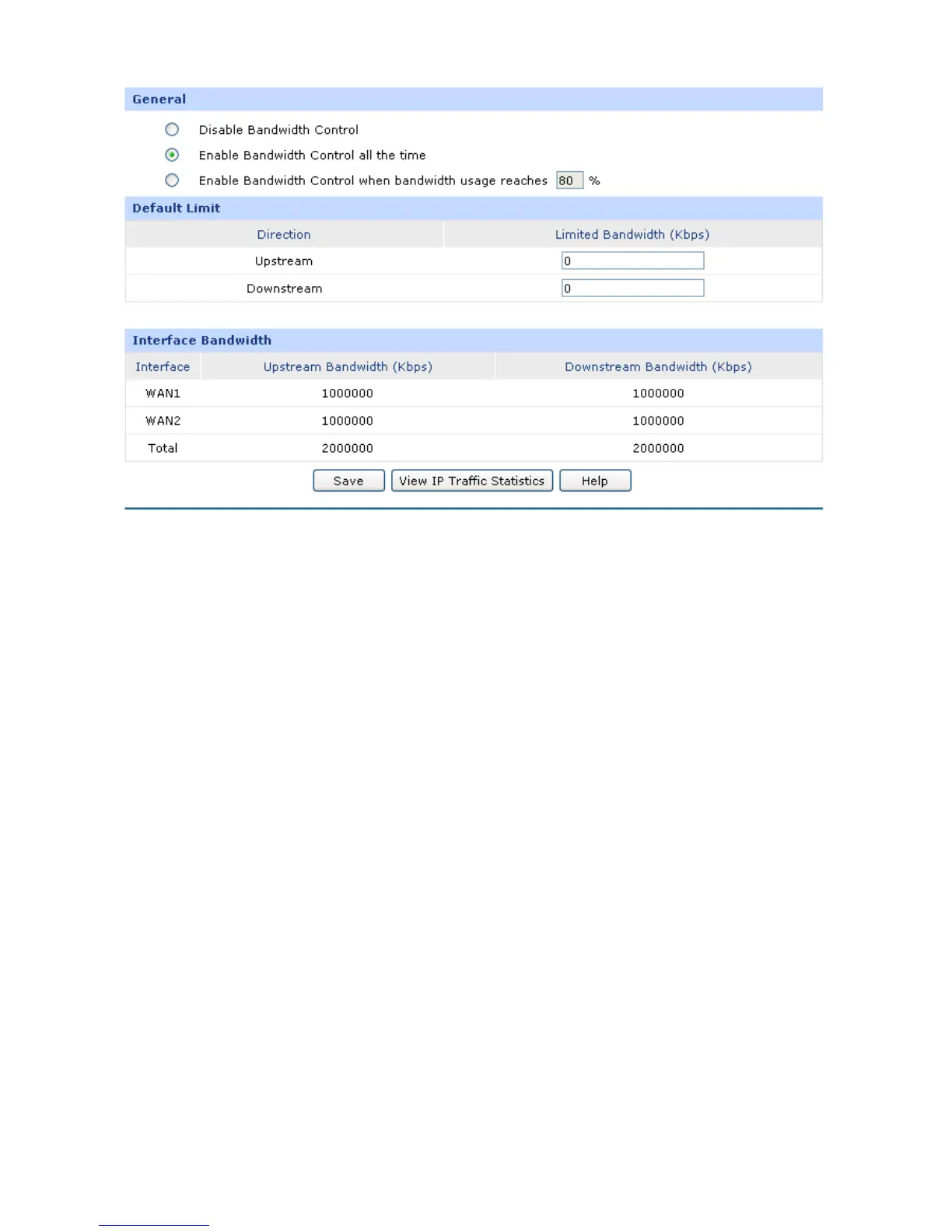

Figure 4-12 Bandwidth Setup
2) Interface Bandwidth
Choose the menu Network→WAN→WAN1 to load the configuration page. Configure the Upstream
Bandwidth and Downstream Bandwidth of the interface as Figure 4-13 shows. The entered
bandwidth value should be consistent with the actual bandwidth value.
3) Bandwidth Control Rule
Choose the menu Advanced→Traffic Control→Bandwidth Control to load the configuration page.
Then continue with the following settings:
Settings:
Direction: LAN -> WAN1
Group: group1
Mode: Individual
Guaranteed Bandwidth (Up/Down):
100
Limited Bandwidth (Up/Down): 800
Effective Time: Keep the default value
Status: Activate
Click the <Add> button to apply.
