-33-

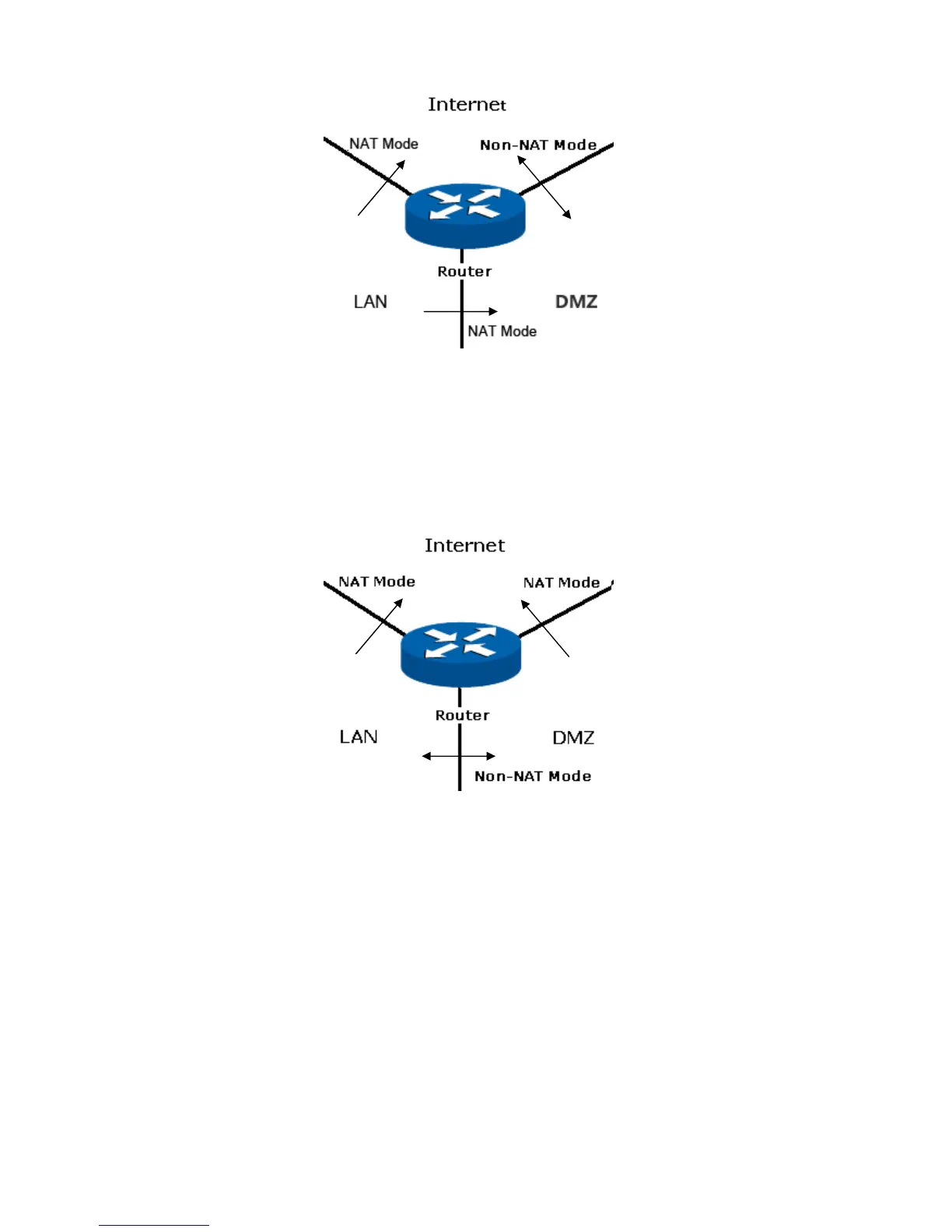

Figure 3-
16 DMZ – Public Mode
In Private mode, the DMZ port allows the Hosts in DMZ to access Internet via NAT mode which
translates private IP addresses within DMZ to public IP addresses for transport over Internet. The
Hosts in DMZ can directly communicate with LAN using the private IP addresses within the different
subnet of LAN.
Figure 3-
17 DMZ – Private Mode
3.1.5.1 DMZ
This page allows you to configure the DMZ port of TL-ER6020.
Choose the menu Network→DMZ→DMZ to load the following page.
