-49-

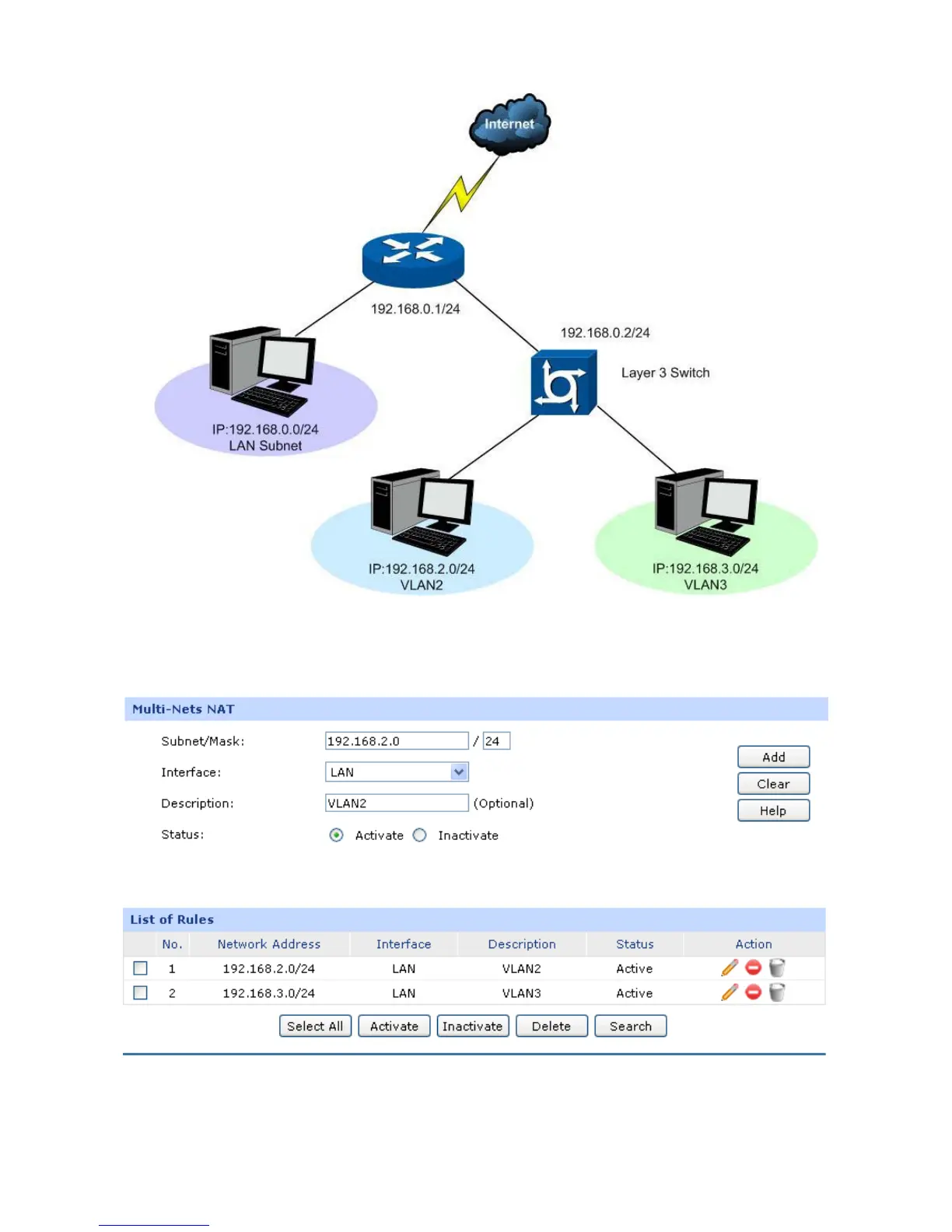

Configuration procedure
1. Establish the Multi-Nets NAT entries with Subnet/Mask of VLAN2 and VLAN3.
The configured entries are as follows:
2. Then set the corresponding Static Route entry, enter the IP address of the interface connecting
the Router and the three layer switch into the Next Hop field.
