 PVC Pool: PVC Pool contains multiple VPI/VCI sets. The Modem can match PVC
automatically and it can plug and play. The detailed VPI/VCI sets inside PVC Pool are
shown in Figure 4-7, besides you can add VPI/VCI sets to or re
move VPI/VCI sets from
the PVC pool.

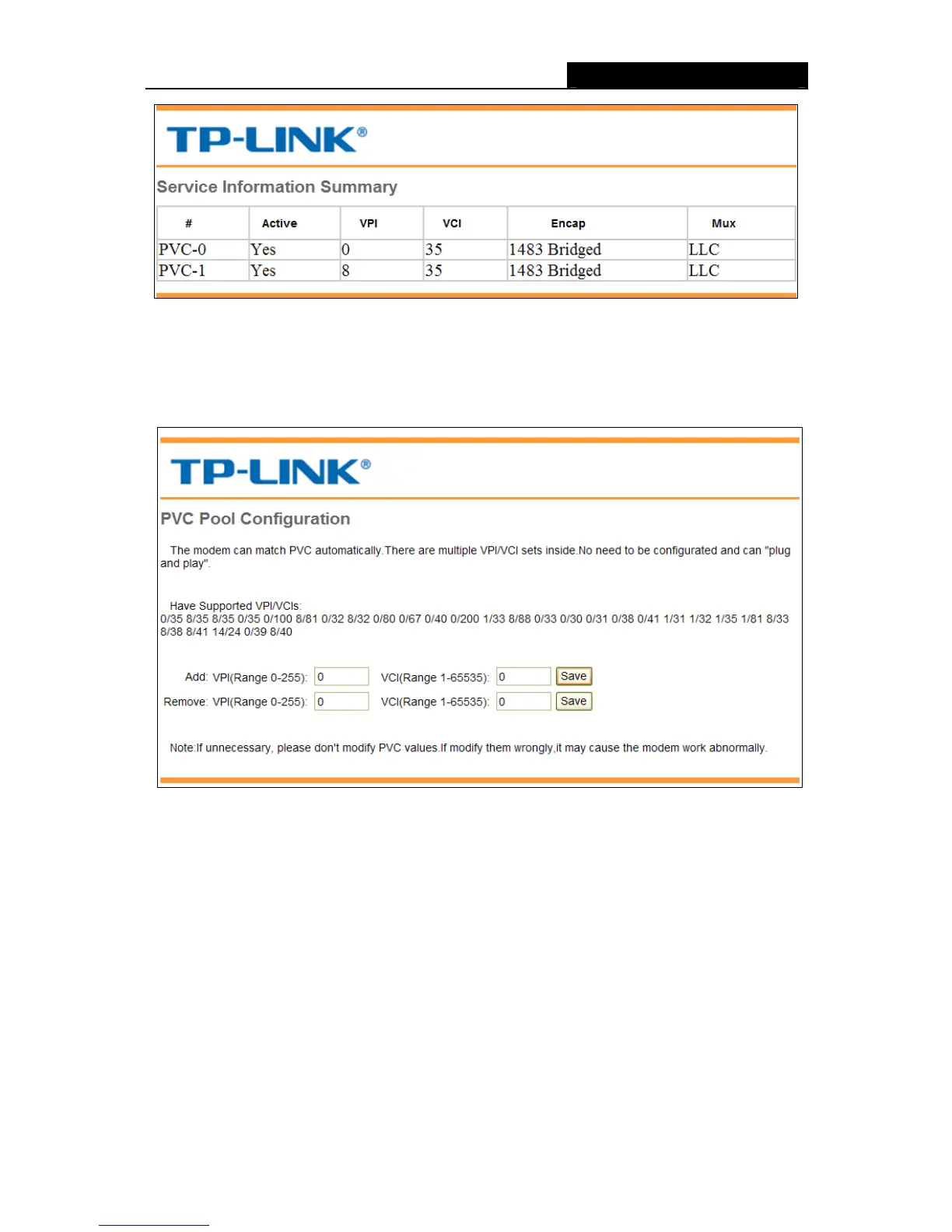

Figure 4-7
 Status: If you want to use a designed VC, you should activate it.
 VPI: Identify the virtual path between endpoints in an ATM network. The valid range is
from 0 to 255. Please input the value provided by your ISP.
 VCI: Identify the virtual channel endpoints in an ATM network. The valid range is from 32
to 65535 (1 to 31 is reserved for well-known protocols). Please input the value provided
by your ISP.
 Bridge Mode:
 Encapsulation: There are two connection types: 1483 Bridged IP LLC and 1483
Bridged IP VC-Mux. Please choose the appropriate type which your ISP provides.
