TD-8616 ADSL2+ Modem User Guide
17

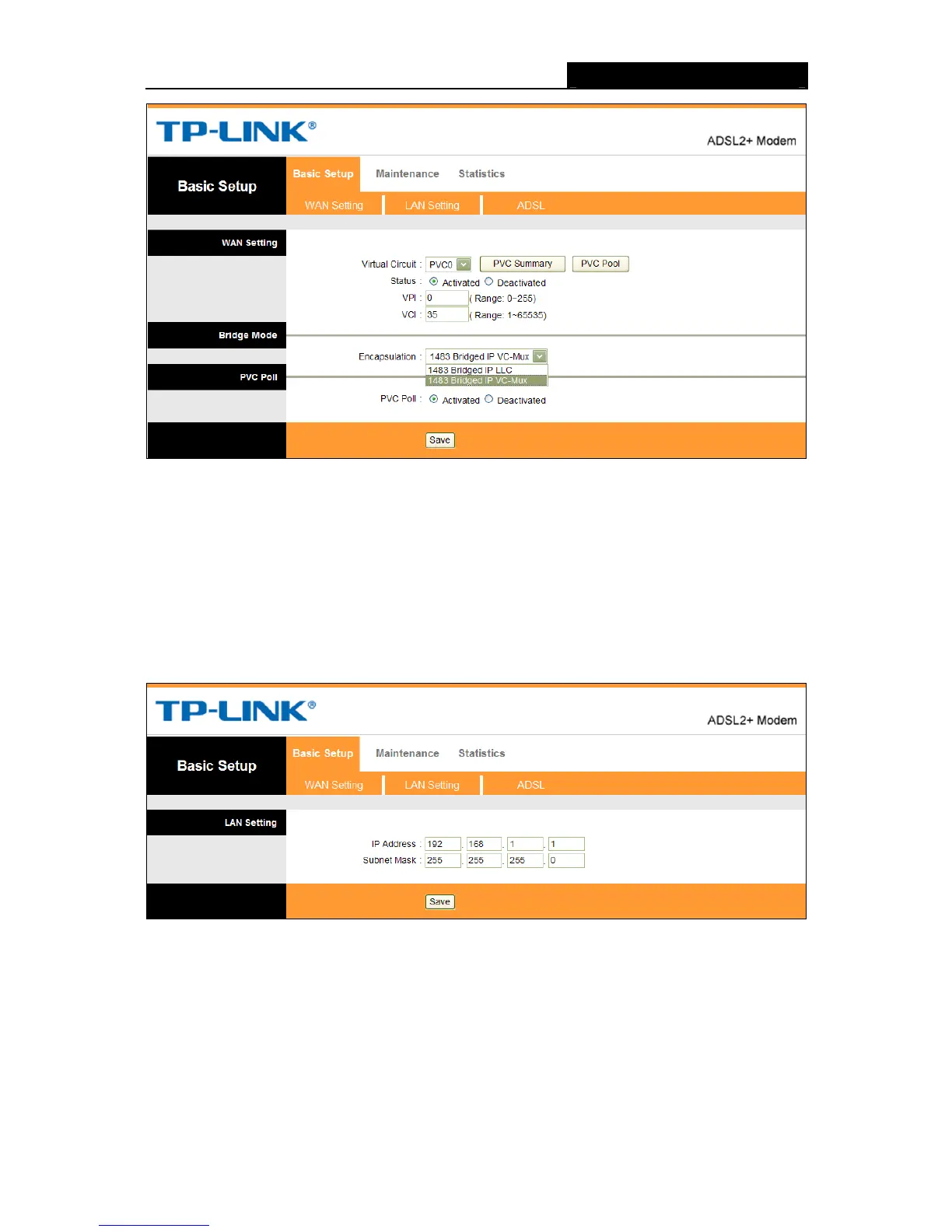

Figure 4-8
 PVC Poll:
 PVC Poll: PVC Pool is activated as default. If unnecessary, please do not modify the
status of PVC Pool.
4.2.2 LAN Setting
Choose “Basic Setup→LAN Setting” menu, and you will see the LAN screen (shown in Figure
4-9). Please configure the parameters for LAN ports according to the descriptions below.
Figure 4-9
 LAN Setting: These are the IP settings of the LAN interface for the device. These settings
may be referred to as Private settings. You may change the LAN IP address if needed. The
LAN IP address is private to your internal network and cannot be seen on the Internet.
 IP Address: Enter the Modem’s local IP Address, then you can access to the
Web-based Management page via the IP Address, the default value is 192.168.1.1.
 Subnet Mask: Enter the Modem’s Subnet Mask, the default value is 255.255.255.0.
