TP-Link TL-MR3040 User Manual

TL-MR3040 Portable 3G/3.75G Battery Powered Wireless N Router
5.6.4 Wireless Advanced
Choose menu “Wireless→Wireless Advanced”, and then you can configure the advanced
settings of your wireless network.

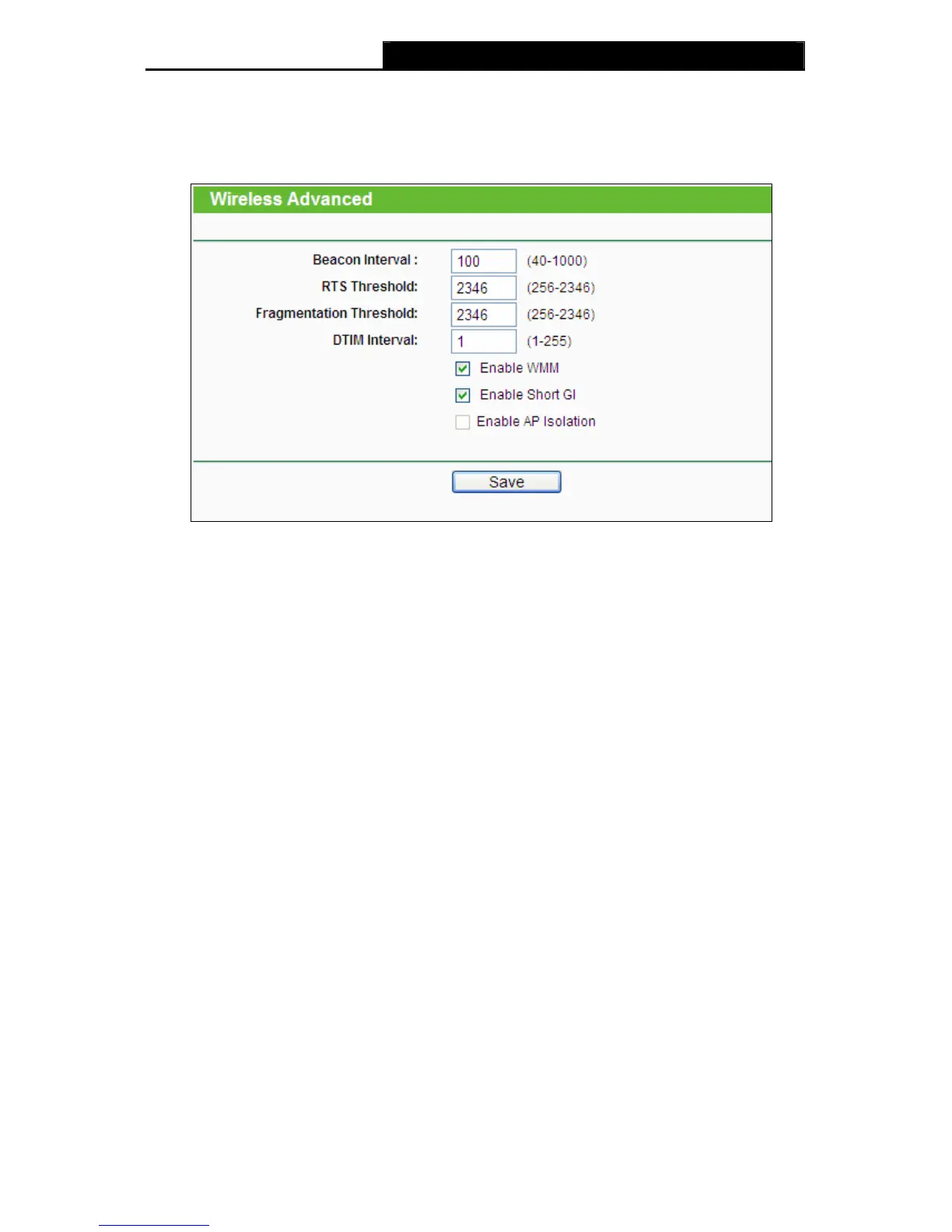

Figure 5-24 Wireless Advanced
¾ Beacon Interval - Enter a value between 40-1000 milliseconds for Beacon Interval
here. The beacons are the packets sent by the router to synchronize a wireless
network. Beacon Interval value determines the time interval of the beacons. The
default value is 100.
¾ RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the
packet is larger than the specified RTS Threshold size, the router will send RTS
frames to a particular receiving station and negotiate the sending of a data frame. The
default value is 2346.
¾ Fragmentation Threshold - This value is the maximum size determining whether
packets will be fragmented. Setting the Fragmentation Threshold too low may result in
poor network performance since excessive packets. 2346 is the default setting and is
recommended.
¾ DTIM Interval - This value determines the interval of the Delivery Traffic Indication
Message (DTIM). A DTIM field is a countdown field informing clients of the next
window for listening to broadcast and multicast messages. When the Router has
buffered broadcast or multicast messages for associated clients, it sends the next
DTIM with a DTIM Interval value. You can specify the value between 1-255 Beacon
Intervals. The default value is 1, which indicates the DTIM Interval is the same as
Beacon Interval.
-128-

TP-Link TL-MR3040 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	2
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	1
Routing protocols	IP
Supported network protocols	Dynamic IP, Static IP, PPPoE, BC, L2TP, PPTP
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	15 - 40 °C
Operating relative humidity (H-H)	0 - 75 %
Cables included	LAN (RJ-45), USB
Product color	White
LED indicators	LAN, Power, WLAN

Weight and Dimensions

Depth	62 mm
Width	100 mm
Height	16 mm
Weight	94 g
