TP-Link TL-MR3040 User Manual

TL-MR3040 Portable 3G/3.75G Battery Powered Wireless N Router
5.8.4 UPnP
Choose menu “Forwarding→UPnP”, and then you can view the information about UPnP in the
screen (shown in Figure 5-37). The Universal Plug and Play (UPnP) feature allows the
devices, such as Internet computers, to access the local host resources or devices as needed.
UPnP devices can be automatically discovered by the UPnP service application on the LAN.

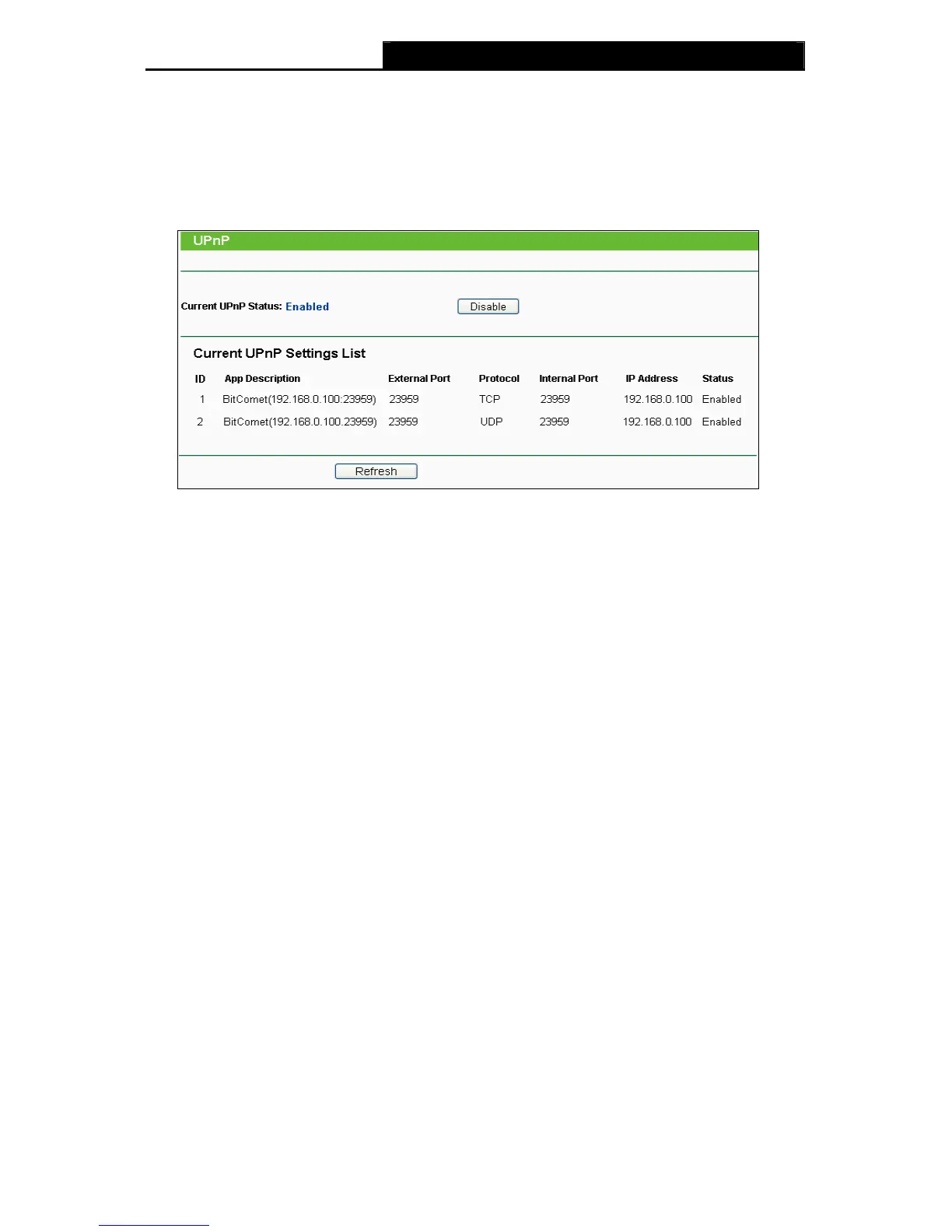

Figure 5-37 UPnP Setting
¾ Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or
Disable button. This feature is enabled by default.
¾ Current UPnP Settings List - This table displays the current UPnP information.
• App Description - The description about the application which initiates the UPnP
request.
• External Port - The port which the Router opened for the application.
• Protocol - The type of protocol which is opened.
• Internal Port - The port which the Router opened for local host.
• IP Address - The IP address of the local host which initiates the UPnP request.
• Status - Either Enabled or Disabled. "Enabled" means that the port is still active;
otherwise, the port is inactive.
Click the Enable button to enable UPnP.
Click the Disable button to disable UPnP.
Click the Refresh button to update the Current UPnP Settings List.
-138-

TP-Link TL-MR3040 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	2
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	1
Routing protocols	IP
Supported network protocols	Dynamic IP, Static IP, PPPoE, BC, L2TP, PPTP
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	15 - 40 °C
Operating relative humidity (H-H)	0 - 75 %
Cables included	LAN (RJ-45), USB
Product color	White
LED indicators	LAN, Power, WLAN

Weight and Dimensions

Depth	62 mm
Width	100 mm
Height	16 mm
Weight	94 g
