TP-Link TL-MR3040 User Manual

TL-MR3040 Portable 3G/3.75G Battery Powered Wireless N Router

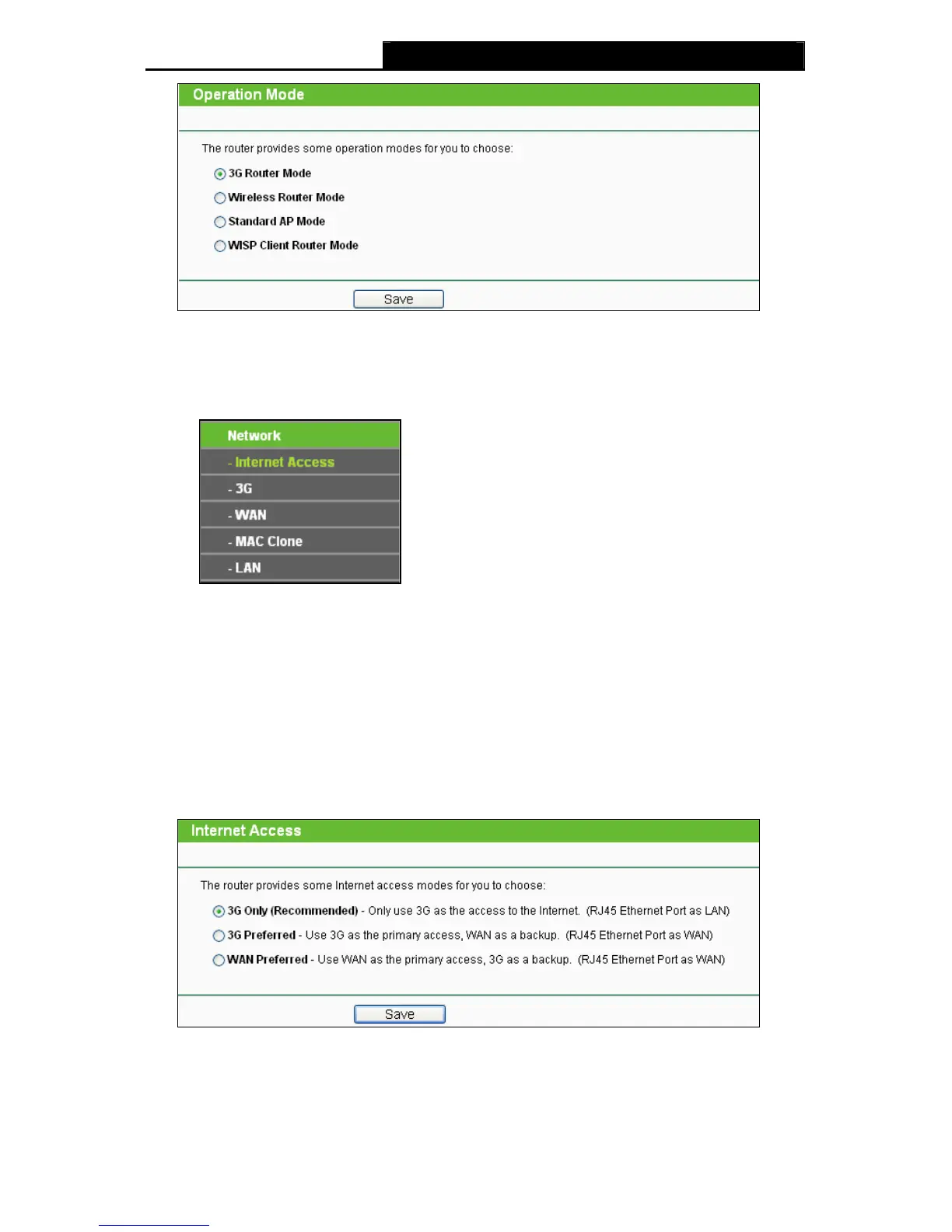

Figure 4-2 Operation Mode
4.5 Network
Figure 4-3 the Network menu
There are five submenus under the Network menu (shown in Figure 4-3): Internet Access, 3G,
WAN, MAC Clone and LAN. Click any of them, and you will be able to configure the
corresponding function.
4.5.1 Internet Access
Choose menu “Network→Internet Access”, you can configure the access mode on the screen
below.
Figure 4-4 Internet Access Mode
¾ 3G Only
In this mode, the router will try 3G access only. WAN access is disabled.
-27-

TP-Link TL-MR3040 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	2
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	1
Routing protocols	IP
Supported network protocols	Dynamic IP, Static IP, PPPoE, BC, L2TP, PPTP
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	15 - 40 °C
Operating relative humidity (H-H)	0 - 75 %
Cables included	LAN (RJ-45), USB
Product color	White
LED indicators	LAN, Power, WLAN

Weight and Dimensions

Depth	62 mm
Width	100 mm
Height	16 mm
Weight	94 g
