TL-MR3040 Portable 3G/3.75G Battery Powered Wireless N Router
1.4.2 The Rear Panel

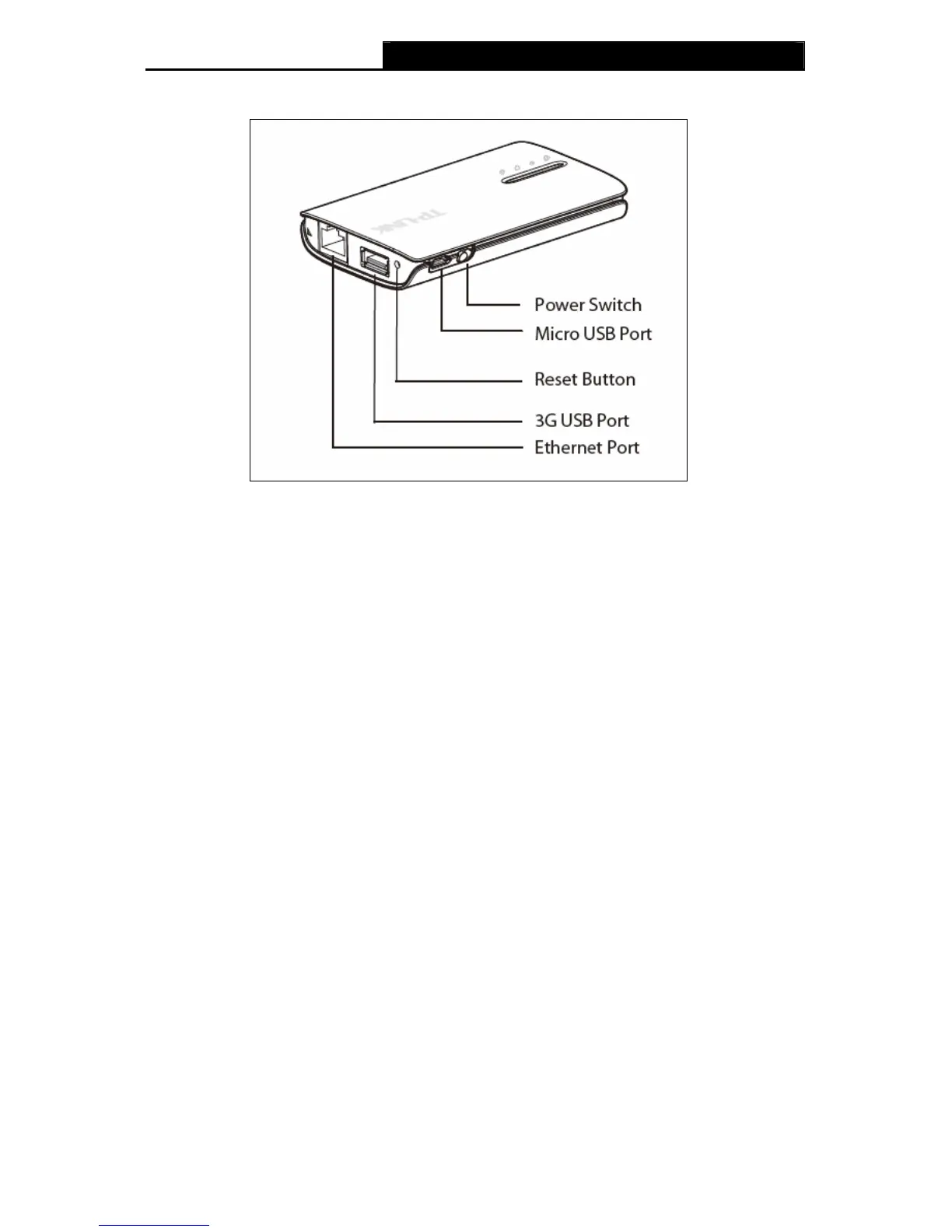

Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
¾ Ethernet Port: This port can be LAN or WAN port depending on the working mode.
¾ 3G USB Port: This port is used to plug a 3G modem/card.
¾ Reset: With the Router powered on, press and hold the Reset button for at least 10
seconds, and then the Router will restore to the default setting.
¾ Micro USB Port: This port is used to connect the provided power adapter.
¾ Power Switch: This switch is used to switch the power status of the Router.
-4-
