TL-MR3040 Portable 3G/3.75G Battery Powered Wireless N Router
¾ WAN Preferred - Use WAN as the primary access, 3G as a backup. The Ethernet
port is used as WAN port.
2. Select your location and Mobile ISP. If you don’t find your location and ISP in the pull-down
menu, tick “Set the Dial Number, APN, Username and Password manually” to manually
set them according to the information your 3G ISP provided. Then click Next.

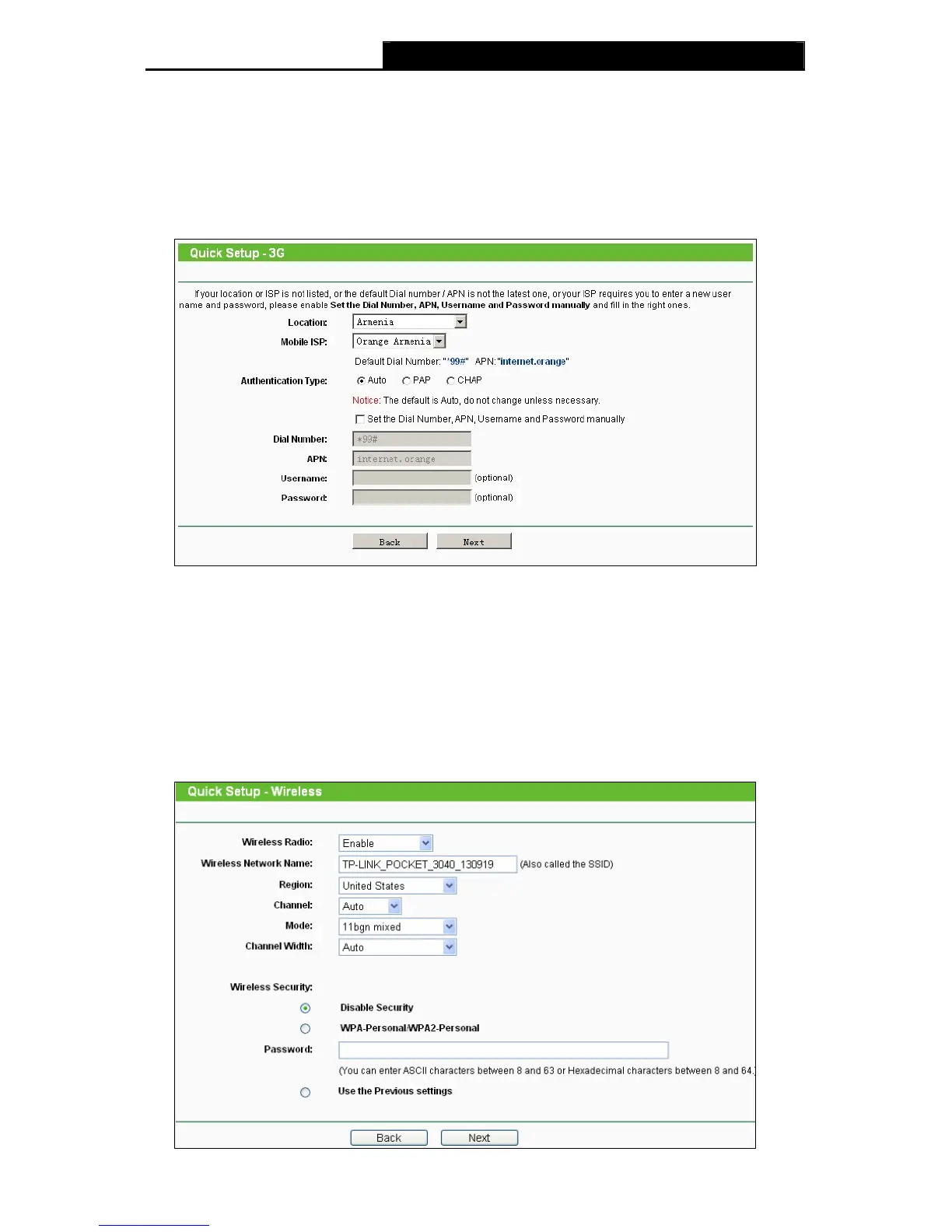

Figure 3-6 Quick Setup – 3G
3. Set your wireless parameters. It’s recommended that you edit the following two items, and
then click Next.
1) Create a unique and easy-to-remember Wireless Network Name.
2) Select WPA-Personal/WPA2-Personal under Wireless Security and enter a
password in the field.
-12-
