TL-MR3040 Portable 3G/3.75G Battery Powered Wireless N Router
¾ If the connection type is Dynamic IP, the next screen will appear as shown in Figure
3-25.

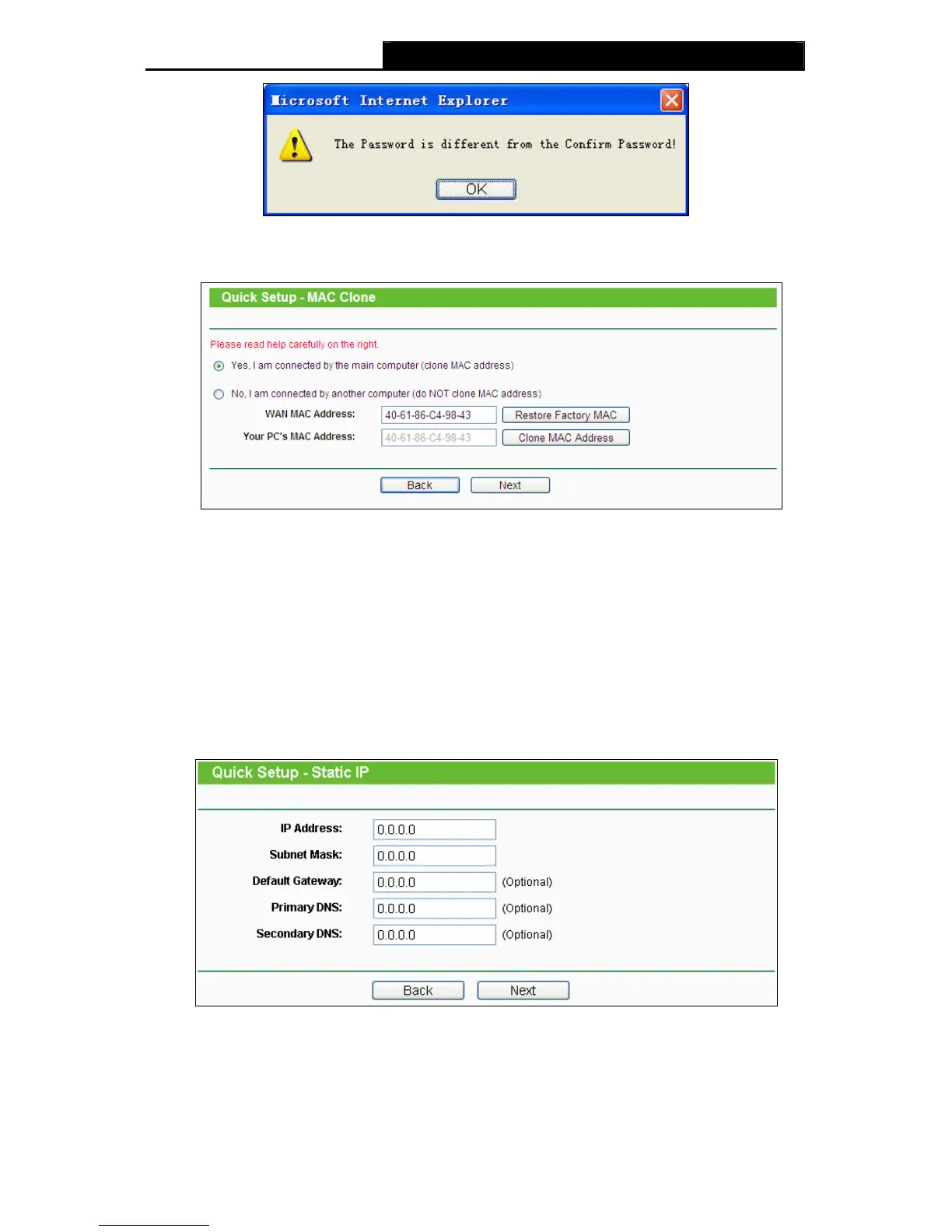

Figure 3-25 Quick Setup – MAC Clone
z If you are visiting the Router from the main computer, please select Yes, and then
click Clone MAC Address.
z If you are visiting the Router from another computer, rather than the main
computer, please select No, and then enter the main computer’s MAC in the field
WAN MAC Address.
¾ If the connection type detected is Static IP, the next screen will appear as shown in
Figure 3-26.
Figure 3-26 Quick Setup - Static IP
z IP Address - This is the WAN IP address seen by external users on the Internet
(including your ISP). Enter the IP address into the field.
-22-
