TL-MR3040 Portable 3G/3.75G Battery Powered Wireless N Router
There are two methods to add a new rule.
Method One:

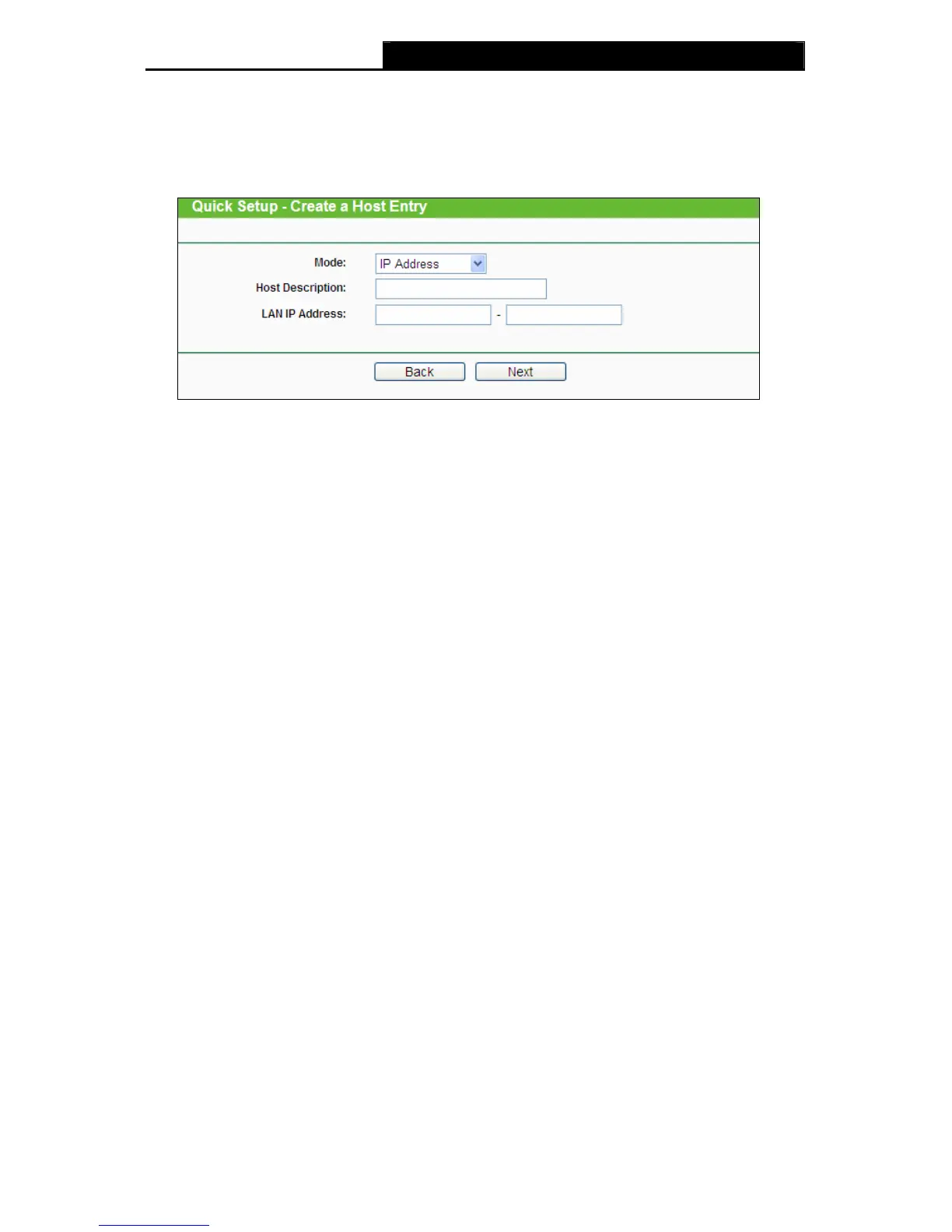

1. Click Setup Wizard button and the next screen will appear as shown in Figure 4-53.
Figure 4-53 Quick Setup – Create a Host Entry
¾ Host Description - In this field, create a unique description for the host (e.g. Host_1).
¾ Mode - Here are two options, IP Address and MAC Address. You can select either of
them from the drop-down list.
If the IP Address is selected, you can see the following item:
¾ LAN IP Address - Enter the IP address or address range of the host in dotted-decimal
format (e.g. 192.168.0.23).
If the MAC Address is selected, you can see the following item:
¾ MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format
(e.g. 00-11-22-33-44-AA).
2. Click Next when finishing creating the host entry, and the next screen will appear as shown
in Figure 4-54.
-73-
