TP-Link TL-SG3428X User Manual

JetStream L2/L2+ Managed Switch
11Introduction
Model
100M/1G/2.5G/
5G/10Gbps RJ45
Port
100M/1000M/2.5Gbps
RJ45 Port
10/100/1000 Mbps
RJ45 Port
SFP+ Slot SFP Slot
Console
Port
TL-SG3428XF / / 4* 4 24 2
TL-SG3428XMP / / 24 4 / 2
TL-SG3452 / / 48 / 4 2
TL-SG3452P / / 48 / 4 2
TL-SG3452 X / / 48 4 / 2
TL-SG3452 XP / / 48 4 / 2
*
The 4 RJ45 ports of TL-SG3428XF form combo ports with 4 SFP slots and they are not able to negotiate
with a speed of 10 Mbps.
■
Rear Panel

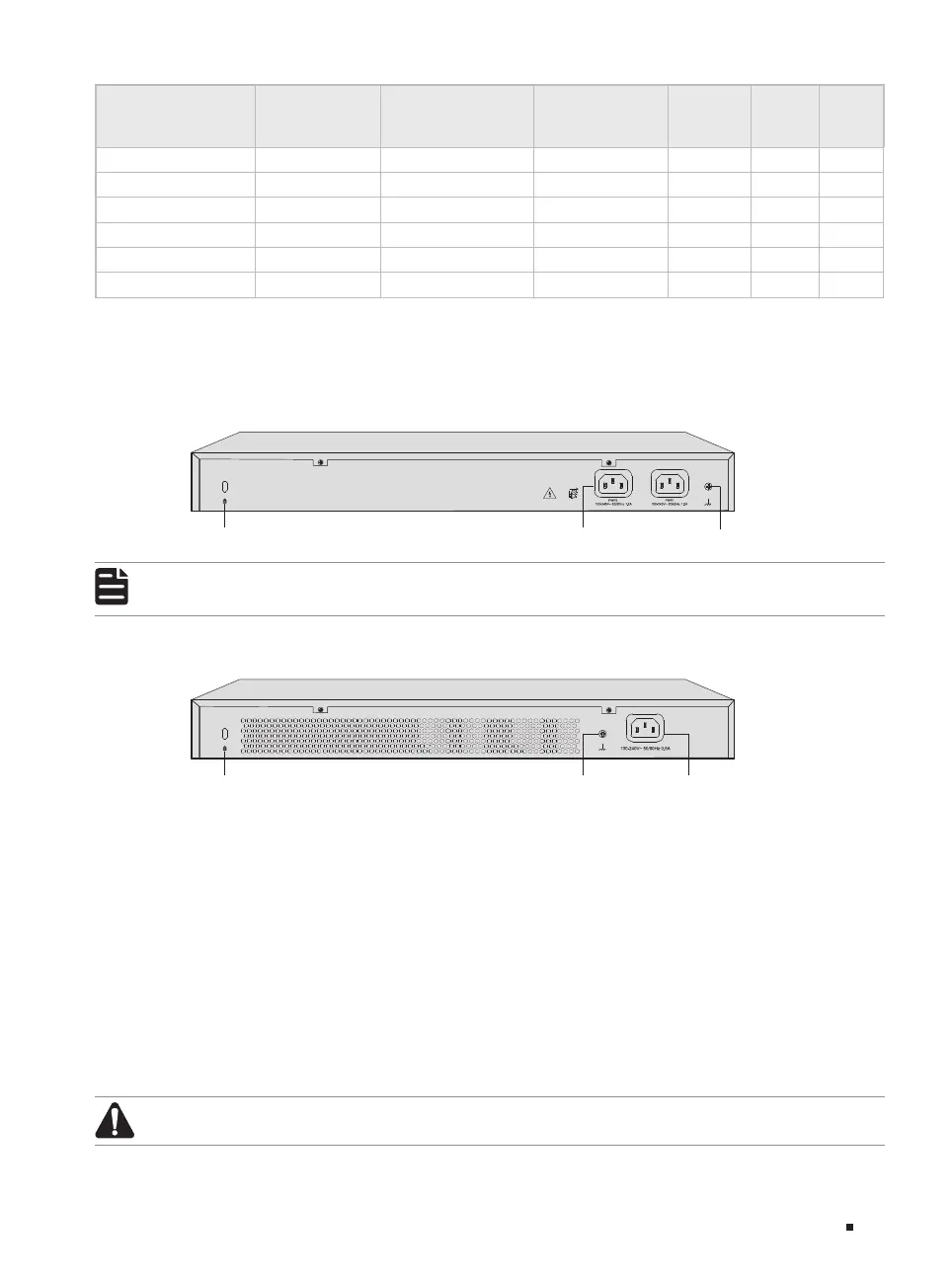

The rear panel of TL-SX3016F/TL-SG3428XF is shown as the following figure. The figure is for
demonstration purposes only. Your switch may differ in appearance from the depicted.
Power Socket Grounding TerminalKensington Security Slot
Note:
PWR1 is the primary power supply and it takes priority over PWR2.
The rear panel of other models is shown as the following figure. The figure is for demonstration
purposes only. Your switch may differ in appearance from the depicted.
Power SocketGrounding TerminalKensington Security Slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch through
the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection
measures, go to https://www.tp-link.com/support, search the model number of your switch and go to
the product Support web page, refer to the Lightning Protection Guide from the Related Documents:
https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.
Power Socket
Connect the female connector of the power cord here, and the male connector to the AC power outlet.
Make sure that the voltage of the power supply meets the requirement of the input voltage (100–240 V~
50/60 Hz).
Caution:
Please use the provided power cord.

TP-Link TL-SG3428X Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
Stackable	-
Form factor	1U
Product color	Black
Number of fans	0 fan(s)
Console port	RJ-45/micro-USB
Power connector	AC-in jack
SFP+ module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
IPv4 routes	48
Number of VLANs	4000
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Ethernet LAN data rates	10, 100, 1000 Mbit/s
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Jumbo frames	9000
Forwarding rate	95.23 Mpps
MAC address table	16000 entries
Packet buffer memory	12 MB
Heat dissipation	80.353 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2690 g
Cables included	LAN (RJ-45)
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	23.6 W
Harmonized System (HS) code	85176990
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
