TP-Link TL-SG3428X User Manual

JetStream L2/L2+ Managed Switch
12 Installation
Chapter 2 Installation

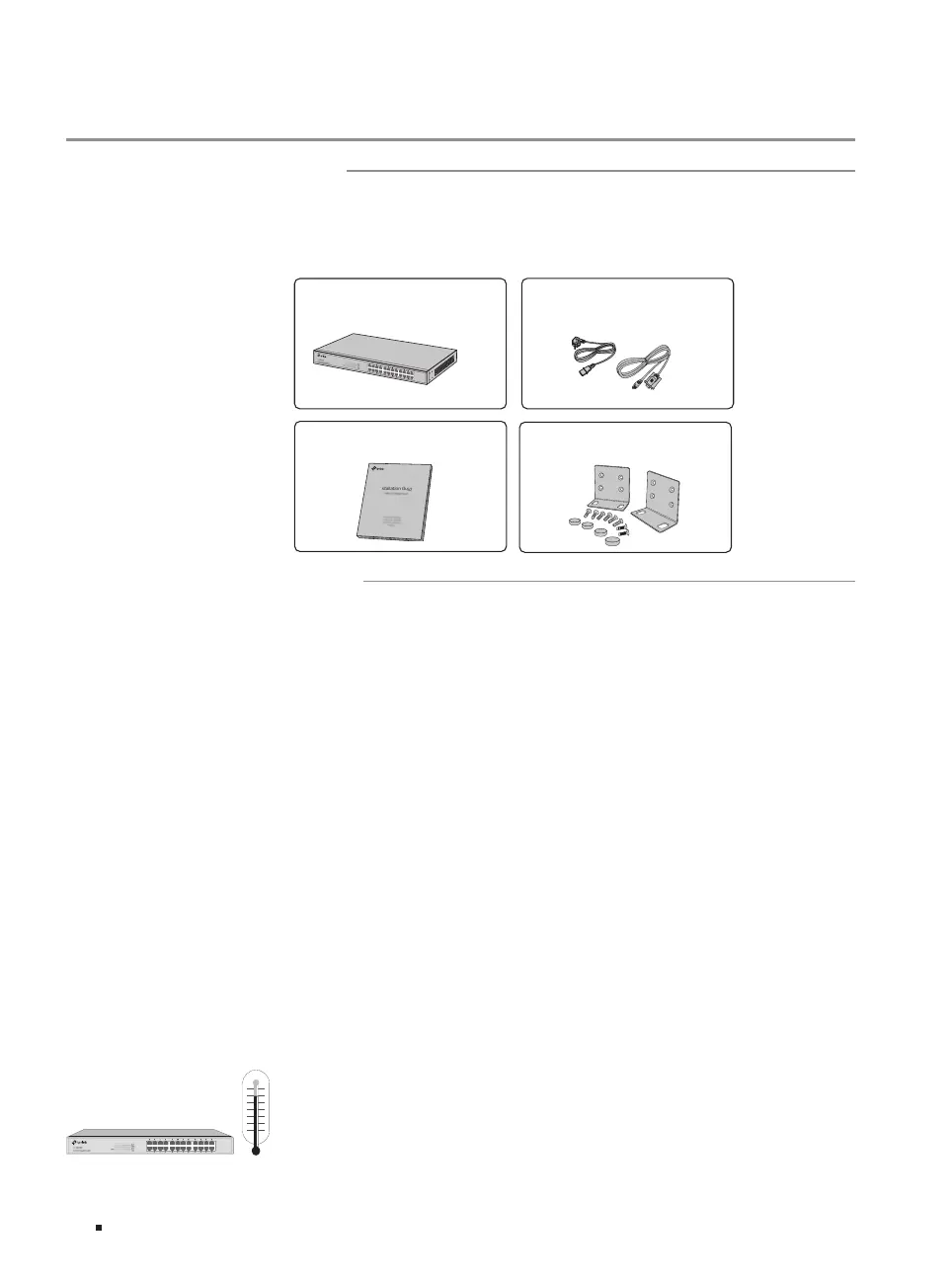

2.1 Package Contents
Make sure that the package contains the following items. Please contact your distributor, if any of
the listed items is damaged or missing. The figures are for demonstration only. The actual items may
differ in appearance and quantity from the depicted.
One Switch
Installation Guide
Installation Guide
Business Networking Solution
Mounting Brackets, Screws
and Rubber Feet
One Power Cord and One
Console Cable
2.2 Safety Precautions
To avoid any device damage and bodily injury caused by improper use, you should observe the
following rules.
■
Safety Precautions
■
Keep the power off during the installation.
■
Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is
well grounded.
■
Use only the power cord provided with the switch.
■
Make sure that the supply voltage matches the specifications indicated on the rear panel of the
switch.
■
Ensure that the switch is installed in a well-ventilated environment and its ventilation hole is not
blocked.
■
Do not open or remove the cover of the switch.
■
Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never
use any other liquid cleaning method.
■
Place the device with its bottom surface downward.
■
Site Requirements
Temperature/Humidity

TP-Link TL-SG3428X Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
Stackable	-
Form factor	1U
Product color	Black
Number of fans	0 fan(s)
Console port	RJ-45/micro-USB
Power connector	AC-in jack
SFP+ module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
IPv4 routes	48
Number of VLANs	4000
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Ethernet LAN data rates	10, 100, 1000 Mbit/s
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Jumbo frames	9000
Forwarding rate	95.23 Mpps
MAC address table	16000 entries
Packet buffer memory	12 MB
Heat dissipation	80.353 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2690 g
Cables included	LAN (RJ-45)
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	23.6 W
Harmonized System (HS) code	85176990
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
