TP-Link TL-SG3428X User Manual

JetStream L2/L2+ Managed Switch
03Introduction

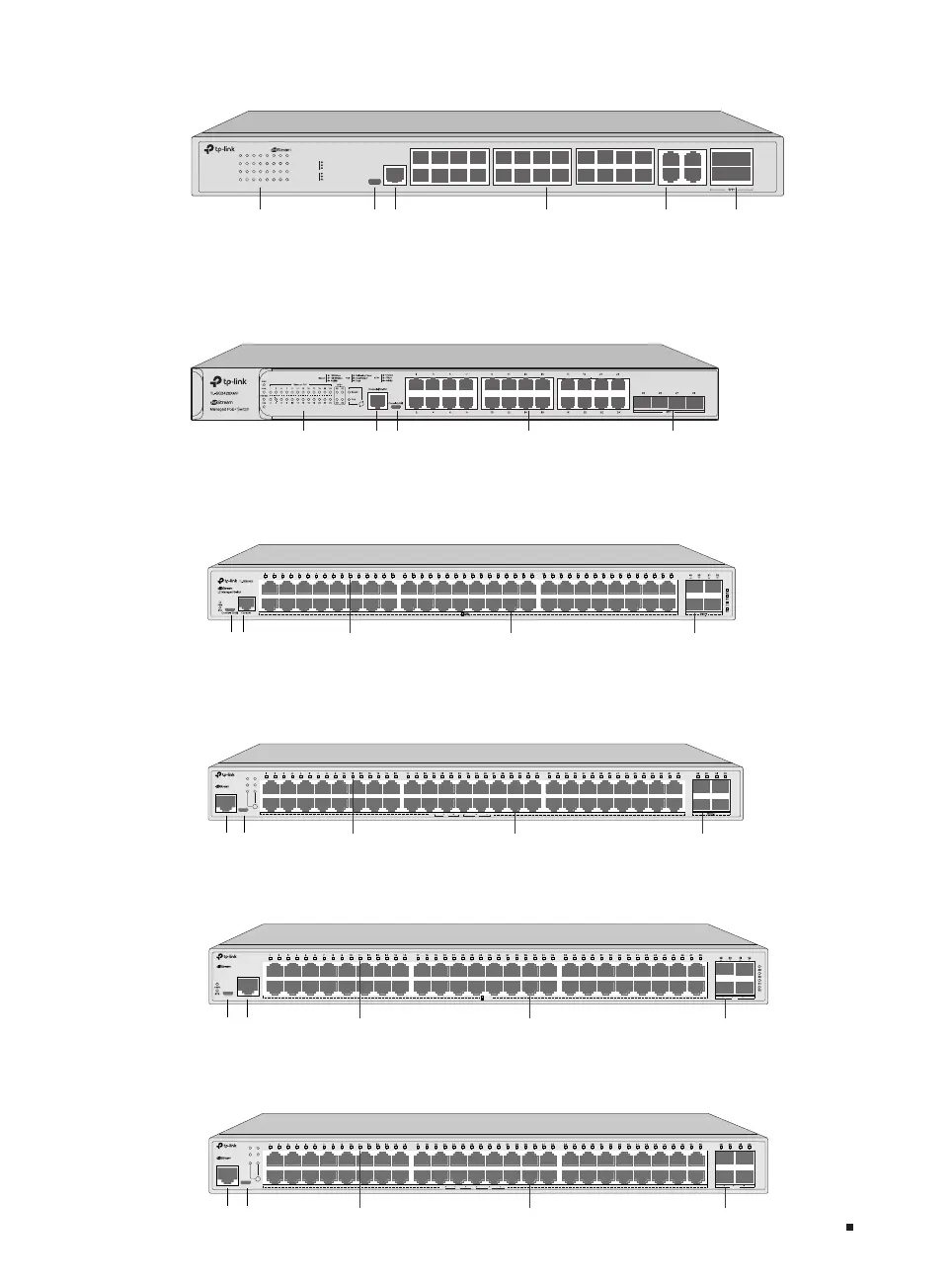

The front panel of TL-SG3428XF is shown as the following figure.
LED Console Port
(USB/RJ45)
1G
RJ45 Port
SFP+ SlotSFP Slot
25 2721T 23T1 3 5 7 9 11 13 15 17 19 21 23
26 28
22T 24T2 4 6 8 10 12 14 16 22 2418 20
24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
TL-SG3428XF
FAN
SYS
PWR1
PWR2
4
3
1
2
8
7
5
6
12
11
9
10
16
15
13
14
20
19
17
18
24
23
21
22
28
27
25
26
Console(RJ45)
Console(USB)
Port 1-24
1000Mbps
100Mbps
Activity
Port 25-28
10Gbps
1Gbps
Activity
The front panel of TL-SG3428XMP is shown as the following figure.
LED Console Port
(RJ45/USB)
1G
RJ45 Port
SFP+ Slot
The front panel of TL-SG3452 is shown as the following figure.
F
LED
1G RJ45 Port
SFP Slot
Console Port
(USB/RJ45)
The front panel of TL-SG3452P is shown as the following figure.
F
LED
1G RJ45 Port
SFP Slot
Console Port
(RJ45/USB)
Speed
PWR
SYS
PoE Max
FAN
PoE
Console(USB)Console(RJ45)
TL-SG3452P
Managed PoE+ Switch
PoE
Delivering Power
Over Budget
Fault
Speed
activity1000Mbps
10/100Mbps
The front panel of TL-SG3452X is shown as the following figure.
LED
1G RJ45 Port
SFP+ Slot
Console Port
(RJ45/USB)
ConsoleConsole(USB)
TL-SG3452X
L2+ Managed Switch
1000Mbps
10/100Mbps
SFP+
activity
10Gbps
1Gbps
The front panel of TL-SG3452XP is shown as the following figure.
LED
1G RJ45 Port
SFP+ Slot
Console Port
(RJ45/USB)
Speed
PWR
SYS
PoE Max
FAN
PoE
Console(USB)Console(RJ45)
TL-SG3452XP
L2+ Managed PoE+ Switch
PoE
Delivering Power
Over Budget
Fault
Speed
activity1000Mbps
10/100Mbps
activity10Gbps
1Gbps
SFP+

TP-Link TL-SG3428X Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
Stackable	-
Form factor	1U
Product color	Black
Number of fans	0 fan(s)
Console port	RJ-45/micro-USB
Power connector	AC-in jack
SFP+ module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
IPv4 routes	48
Number of VLANs	4000
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Ethernet LAN data rates	10, 100, 1000 Mbit/s
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Jumbo frames	9000
Forwarding rate	95.23 Mpps
MAC address table	16000 entries
Packet buffer memory	12 MB
Heat dissipation	80.353 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2690 g
Cables included	LAN (RJ-45)
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	23.6 W
Harmonized System (HS) code	85176990
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
