Introduction
Chapter 1 Introduction
1.1 Product Overview
TL-SL1218P, TL-SL1218MP, and TL-SL1226P are Power Sourcing Equipment (PSE*) which require
no configurations. The 10/100 Mbps RJ45 ports on the switch support the Power over Ethernet
(PoE*) function, which can automatically detect and supply power to those powered devices (PDs*)
complying with IEEE 802.3af and IEEE 802.3at.
Note:
■
*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.
■
*PoE is a technology that describes a system to transmit electrical power, along with data, to
remote devices over standard twisted-pair cable in an Ethernet network.
■
*PD is a device powered by a PSE and thus consumes energy. Examples include powering
IP telephones, wireless LAN access points, network cameras, network hubs, embedded
computers and so on.
1.2 Appearance
■
Front Panel
The front panels of TL-SL1218P and TL-SL1218MP are shown as the following figure.

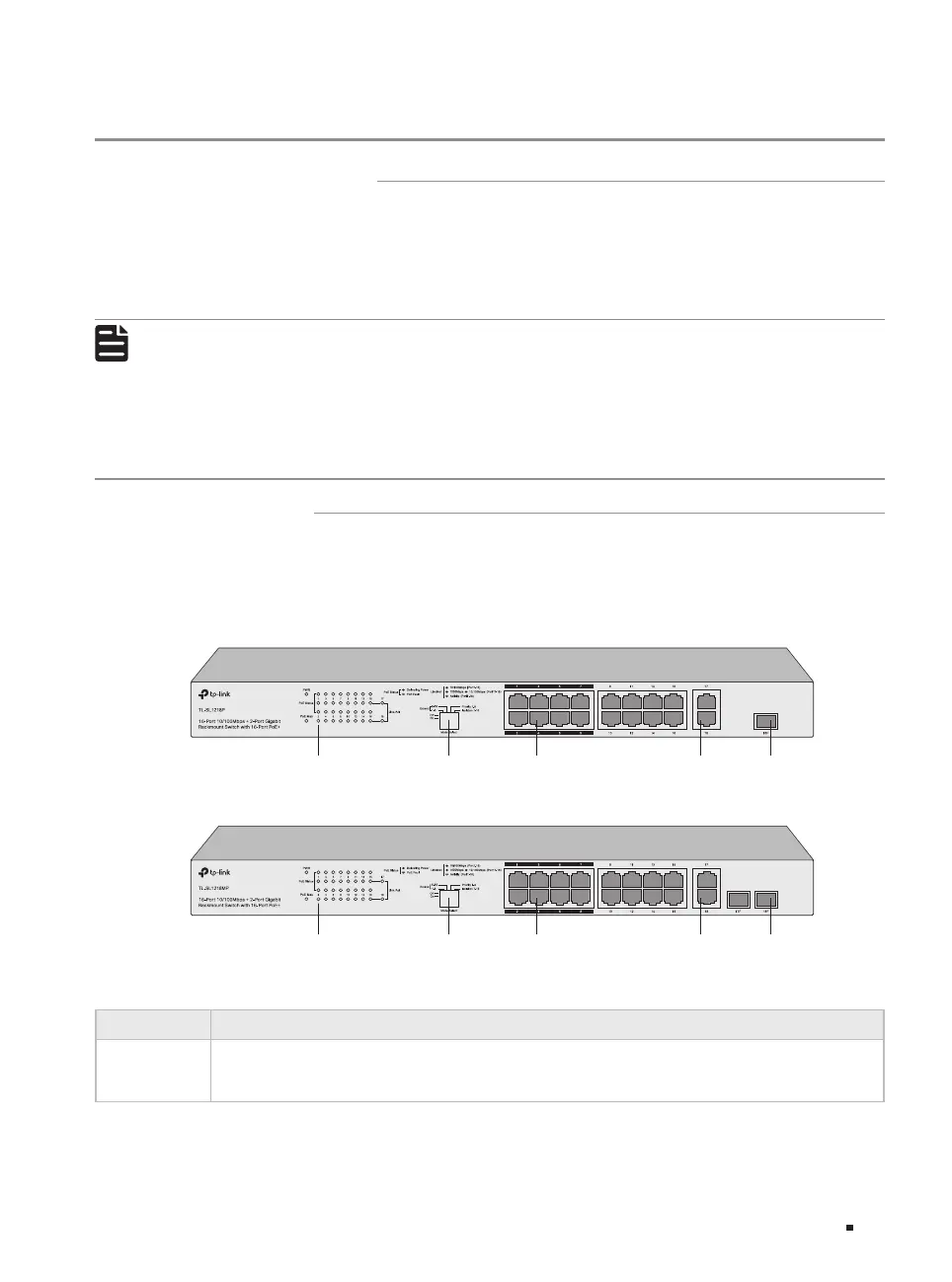

Figure 1-1 Front Panel of TL-SL1218P
10/100 Mbps
RJ45 Port (Port 1-16)
LEDs Switches 10/100/1000 Mbps
RJ45 Port (Port 17-18)
SFP Port
(Port 18F)
Figure 1-2 Front Panel of TL-SL1218MP
10/100 Mbps
RJ45 Port (Port 1-16)
LEDs Switches 10/100/1000 Mbps
RJ45 Port (Port 17-18)
SFP Port
(Port 17F-18F)
LEDs
LED Indication
PWR
On: The switch is powered on.
Off: The switch is powered off.
