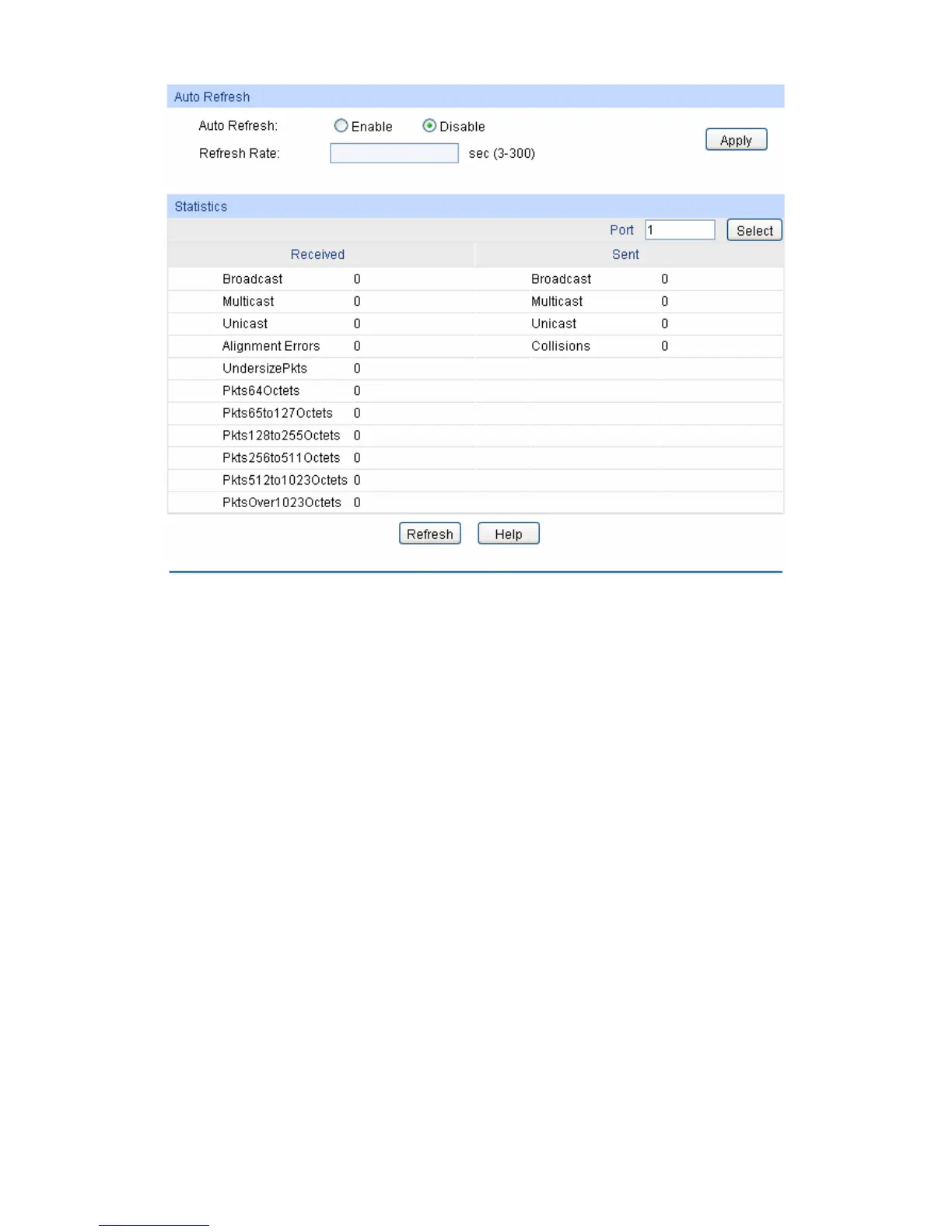

Figure 5-12 Traffic Statistics
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh: Allows you to Enable/Disable refreshing the Traffic Summary
automatically.
Refresh Rate: Enter a value in seconds to specify the refresh interval.
Statistics
Port: Enter a port number and click the Select button to view the traffic
statistics of the corresponding port.
Received: Displays the details of the packets received on the port.
Sent: Displays the details of the packets transmitted on the port.
Broadcast: Displays the number of good broadcast packets received o
transmitted on the port. The error frames are not counted in.
Multicast: Displays the number of good multicast packets received o
transmitted on the port. The error frames are not counted in.
Unicast: Displays the number of good unicast packets received o
transmitted on the port. The error frames are not counted in.
Alignment Errors: Displays the number of the received packets that have a bad
Frame Check Sequence (FCS) with a non-integral octet
(Alignment Error). The length of the packet is between 64 bytes
and 1518 bytes.
