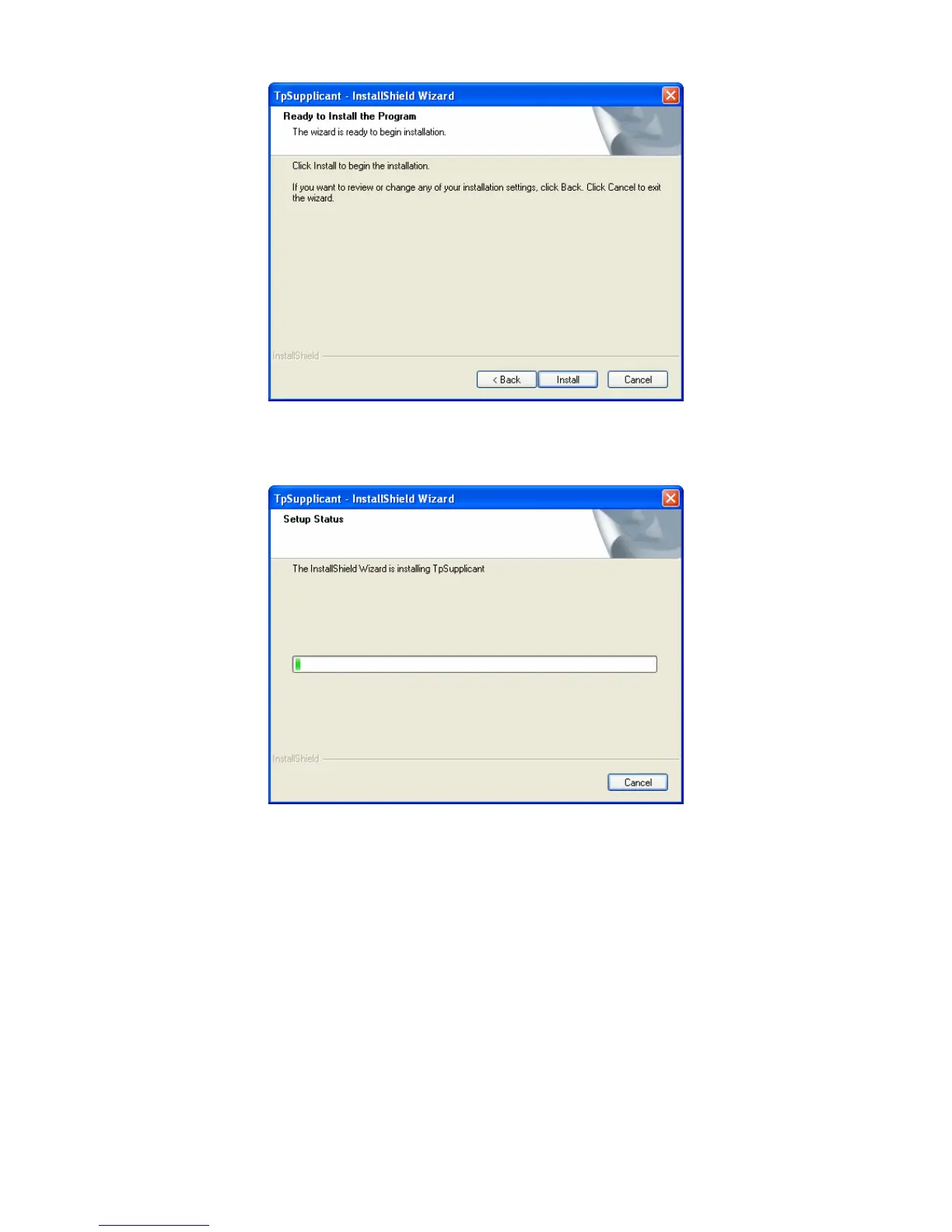

Figure C-5 Install the Program

6. The InstallShield Wizard is installing TpSupplicant shown as the following screen. Please

wait.

Figure C-6 Setup Status

7. On the following screen, click Finish to complete the installation.

230
