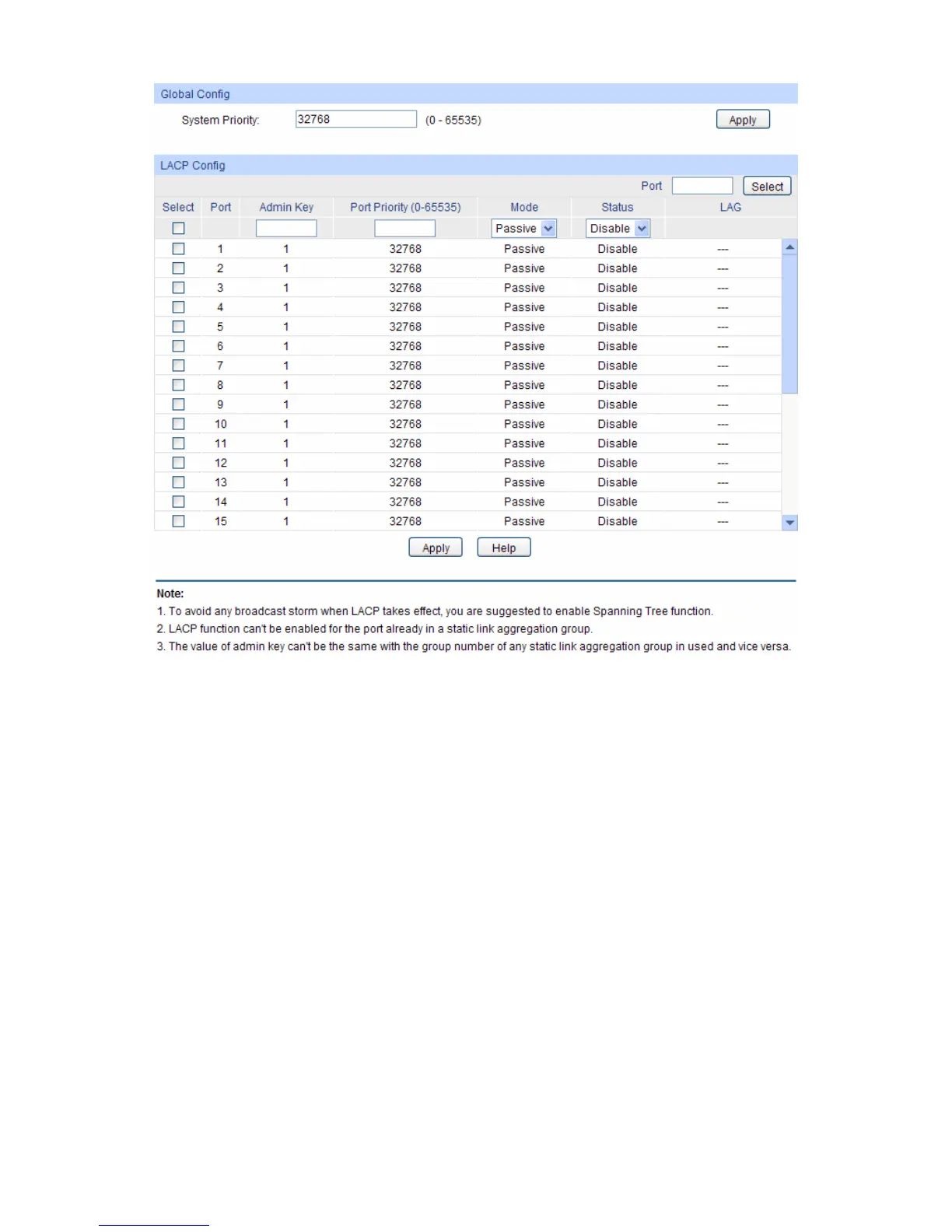

Figure 5-10 LACP Config
The following entries are displayed on this screen:
Global Config
System Priority: Specify a System Priority for the port. The System Priority and the
Admin Key constitute the aggregation ID. A dynamic aggregation
group will only be formed between ports having the same aggregation
ID.
LACP Config
Port Select: Click the Select button to quick-select the corresponding port based
on the port number you entered.
Select: Select the desired port for LACP configuration. It is multi-optional.
Port: Displays the port number.
Admin Key: Specify an Admin Key for the port. The member ports in a dynamic
aggregation group must have the same Admin Key.
Port Priority: Specify a Port Priority for the port. This value determines the priority
of the port to be selected as the dynamic aggregation group
member. The port with smaller Port Priority will be considered as the
43
