TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
127

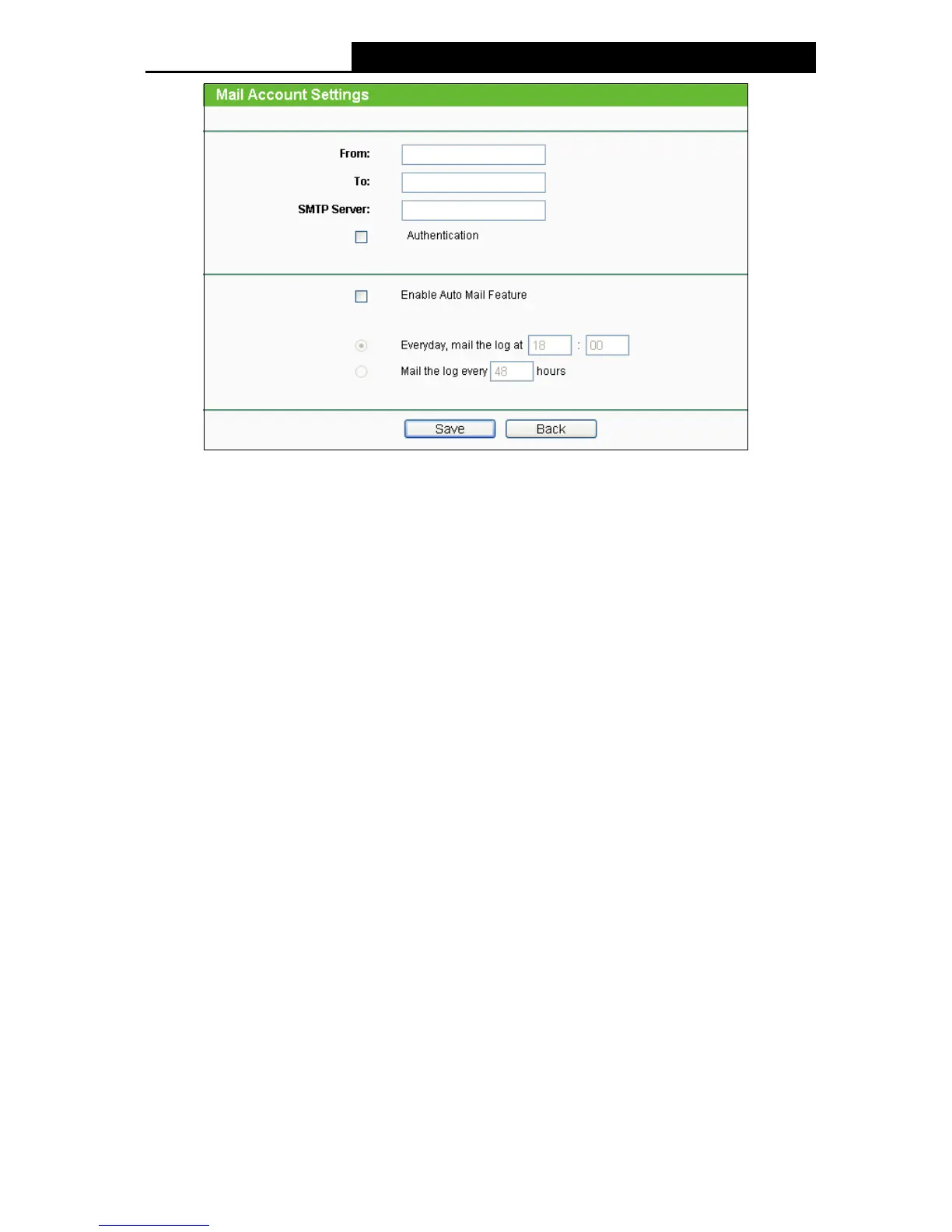

Figure 5-81 Mail Account Settings
 From - Your mail box address.
 To - Recipient's address.
 SMTP Server - Your SMTP server.
 Authentication - Most SMTP Server requires Authentication.

Note:
Only when you select Authentication, do you have to enter the User Name and Password in the
following fields.
 User Name - Your mail account name.
 Password - Your mail account password.
 Auto Mail Feature will help you monitor how your Device is running.
Everyday, at specified time, the Device will automatically send the log to specified mailbox.
Every few hours, such as 2 hours, the Device will automatically send the log to specified mailbox.
 Log Type - By selecting the log type, only logs of this type will be shown.
 Log Level - By selecting the log level, only logs of this level will be shown.
 Refresh - Refresh the page to show the latest log list.
 Save Log - Click to save all the logs in a txt file.
 Mail Log - Click to send an email of current logs manually according to the address and
validation information set in Mail Settings. The result will be shown in the later log soon.
 Clear Log - All the logs will be deleted from the Device permanently, not just from the page.
Click the Next button to go to the next page.
Click the Previous button return to the previous page.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
