TL-WPA4220/TL-WPA281 300Mbps AV500/AV200 WiFi Powerline Extender
11
2. Find the model to be configured and click Connect to log in the Web-based management utility.

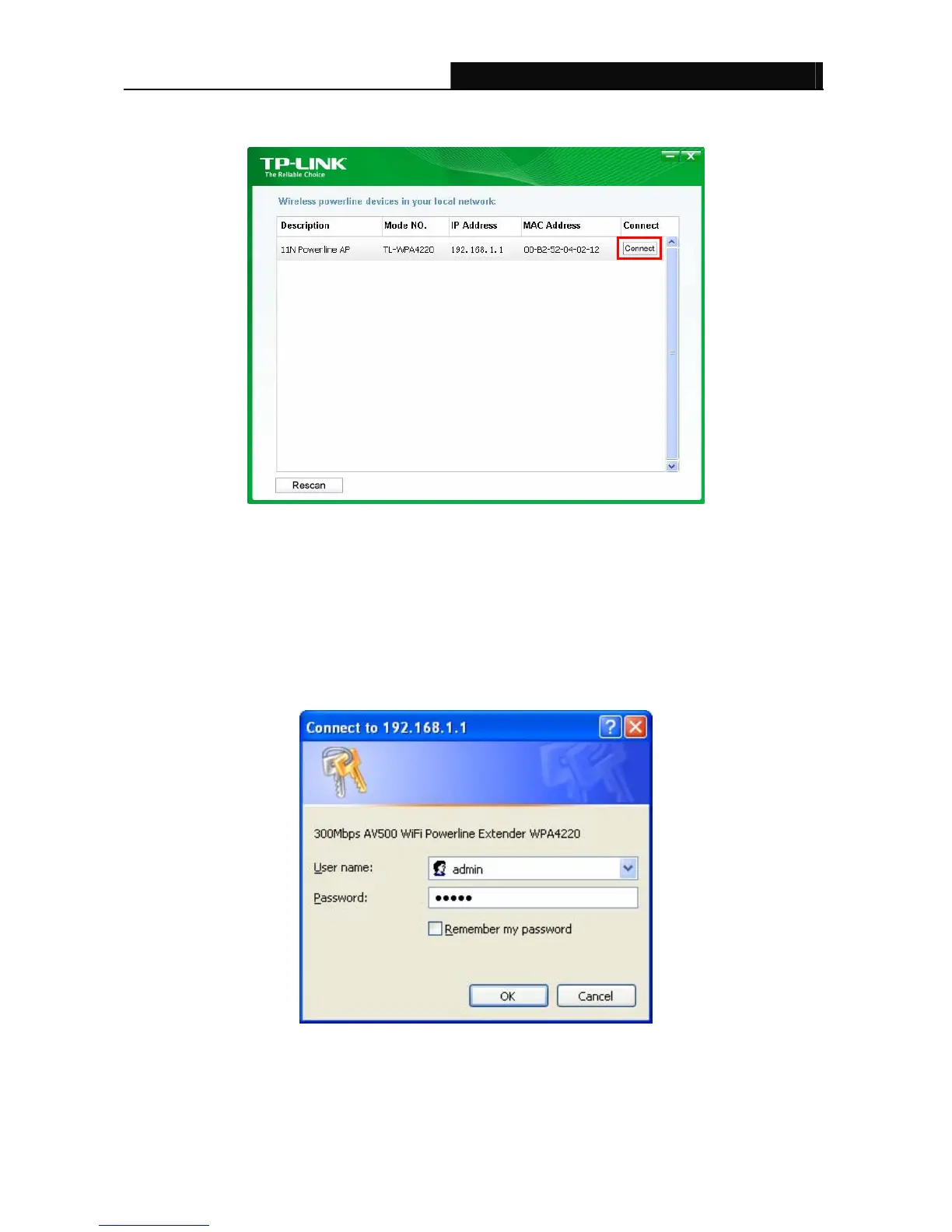

Figure 3-2 Management Utility
) Note:
If another TL-WPA4220 is displayed on the screen above and you cannot decide which model is the
one you are configuring, please refer to the MAC address under MAC Address column. The device’s
MAC address can be found on the label at the bottom of the device.
3. Enter admin for the User name and Password (both in lower case letters) in the screen below. Then
click OK or press Enter.
Figure 3-3 Login Window
To Next Page
