TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in User Manual

TL-WR740N/TL-WR741ND 150Mbps Wireless N Router
- 24 -
)
Note:
The default PIN code of the Router can be found in its label or the QSS configuration screen as
Figure 4-3.

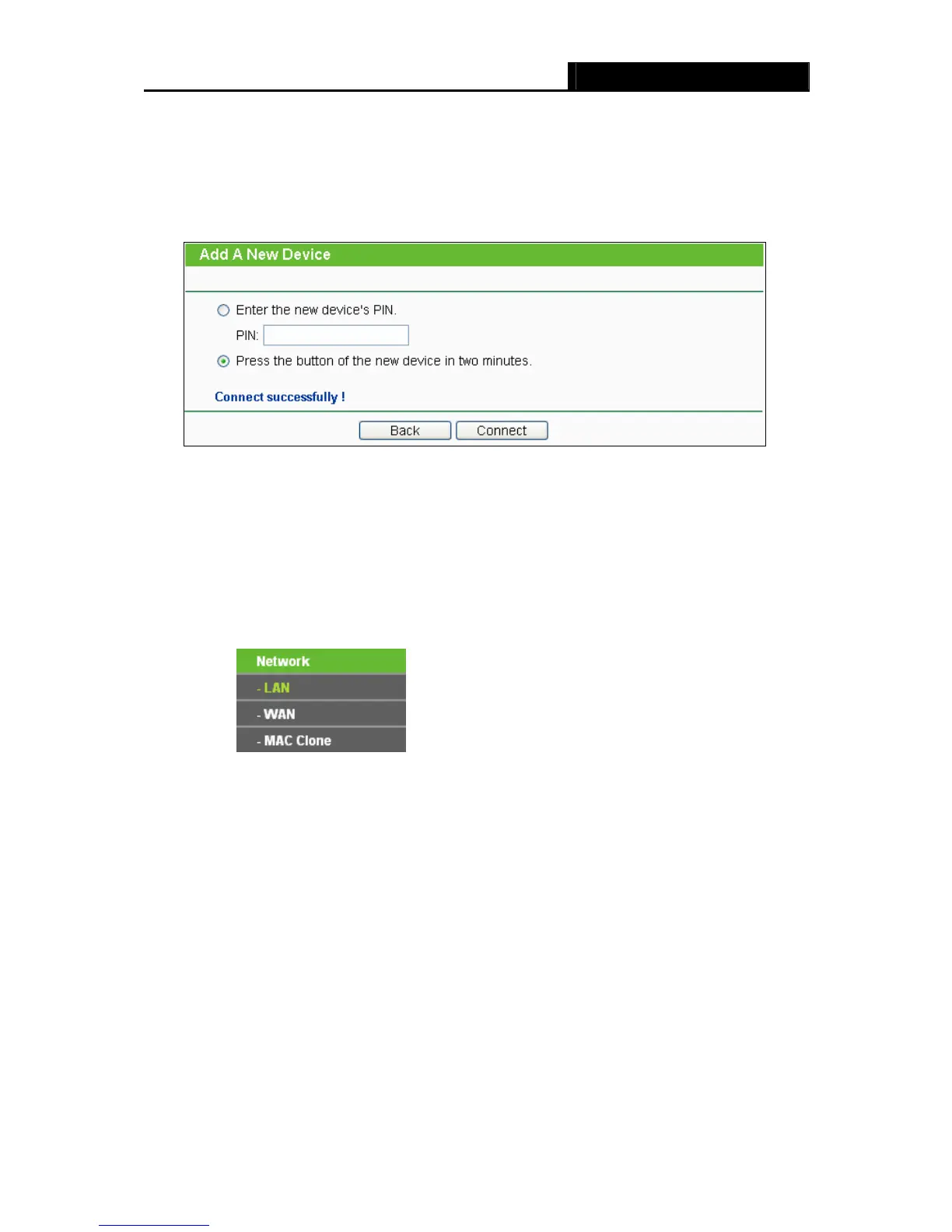

c). You will see the following screen when the new device successfully connected to the
network.
)
Note:
1. The QSS LED on the Router will light green for five minutes if the device has been
successfully added to the network.
2. The QSS function cannot be configured if the Wireless Function of the Router is disabled.
Please make sure the Wireless Function is enabled before configuring the QSS.
4.5 Network
Figure 4-5 the Network menu
There are three submenus under the Network menu (shown in Figure 4-5): LAN, WAN and MAC
Clone. Click any of them, and you will be able to configure the corresponding function.
4.5.1 LAN
Choose menu “Network → LAN”, you can configure the IP parameters of the LAN on the screen
as below.
