TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in User Manual

TL-WR740N/TL-WR741ND 150Mbps Wireless N Router
- 88 -
of the Router, because all users who try to access the Router's Web-based utility or Quick Setup
will be prompted for the Router's default user name and password.
)
Note:
The new user name and password must not exceed 14 characters in length and not include any
spaces. Enter the new Password twice to confirm.
Click the Save button when finished.
Click the Clear All button to clear all.
4.16.8 System log
Choose menu “System Tools → System Log”, you can view the logs of the Router.

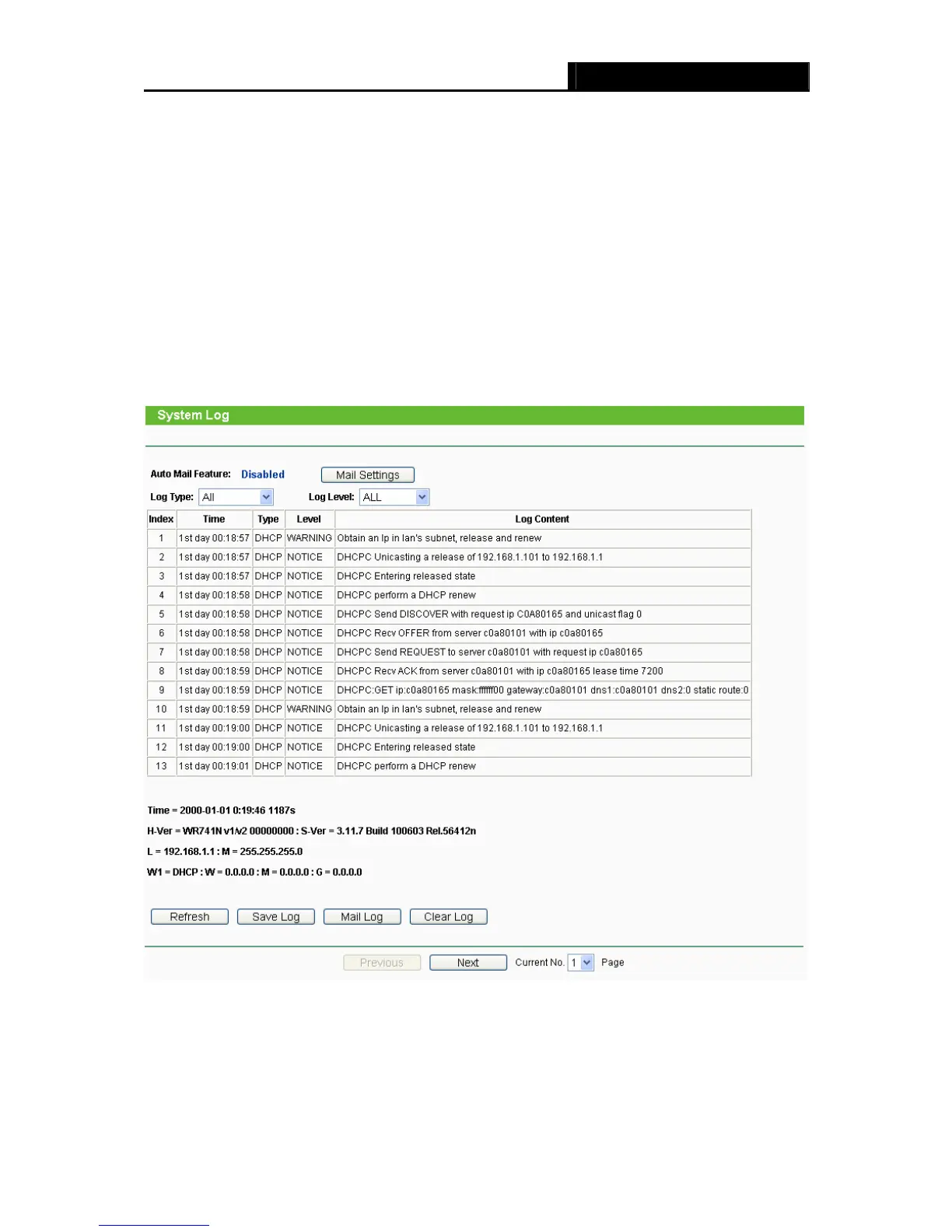

Figure 4-80 System Log
¾
Auto Mail Feature - Indicates whether auto mail feature is enabled or not.
¾ Mail Settings - Set the receiving and sending mailbox address, server address, validation
information as well as the timetable for Auto Mail Feature, as shown in Figure 4-81.

TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Antenna	5dBi fixed omni directional antenna
Button	Reset Button
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Signal Rate	11n: Up to 150Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
Ports	4 x 10/100Mbps LAN, 1 x 10/100Mbps WAN
Power Supply	9VDC / 0.6A
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Weight	0.3 kg
